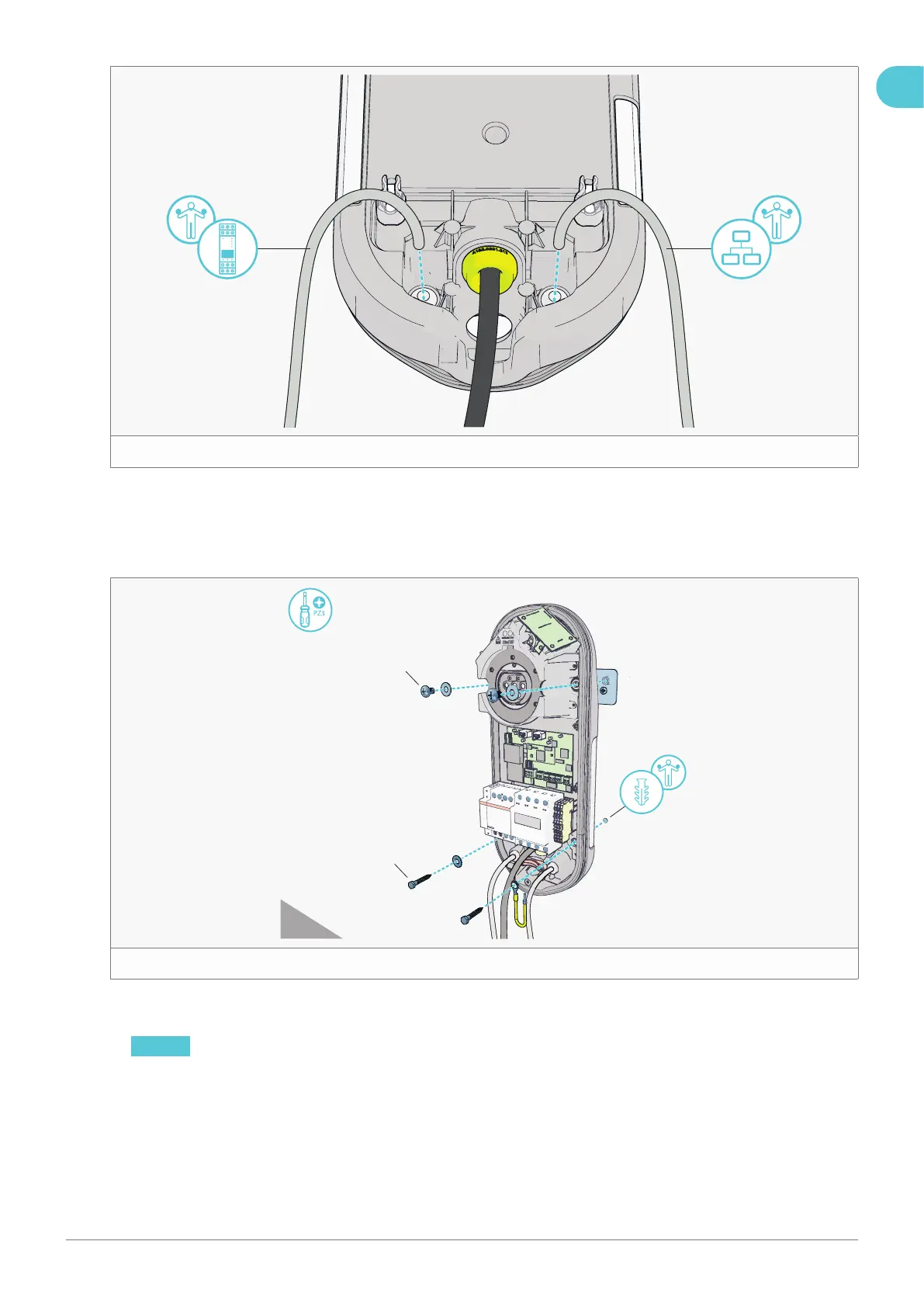

The next three steps are optional (see  gure 14 ):
9 . Punch a hole in the grey grommet(s) for the data cable(s) using a screwdriver.
10 . Feed the DPM data cable through the right grommet.
11 . Feed the Ethernet cable through the left grommet.
M8 × 12 mm
Coach screw
(6.3 × 70 mm)
y
12 . Secure the casing to the wall using 2 provided M8 × 12 mm bolts, 3 M8 washers and 2 coach screws (not provided)
(see  gure 15 ).
NOTICE Secure the supplied earthing cable between the casing and the bottom right screw, if required by local
rules and regulations.
