• Remove the Right side crankcase.
• Remove the crankshaft.
• Remove the counter balancer assembly.
• Remove the shifting fork shafts.
• Remove the gear selector drum.
• Remove the shift forks.
• Remove the remaining transmission
components.

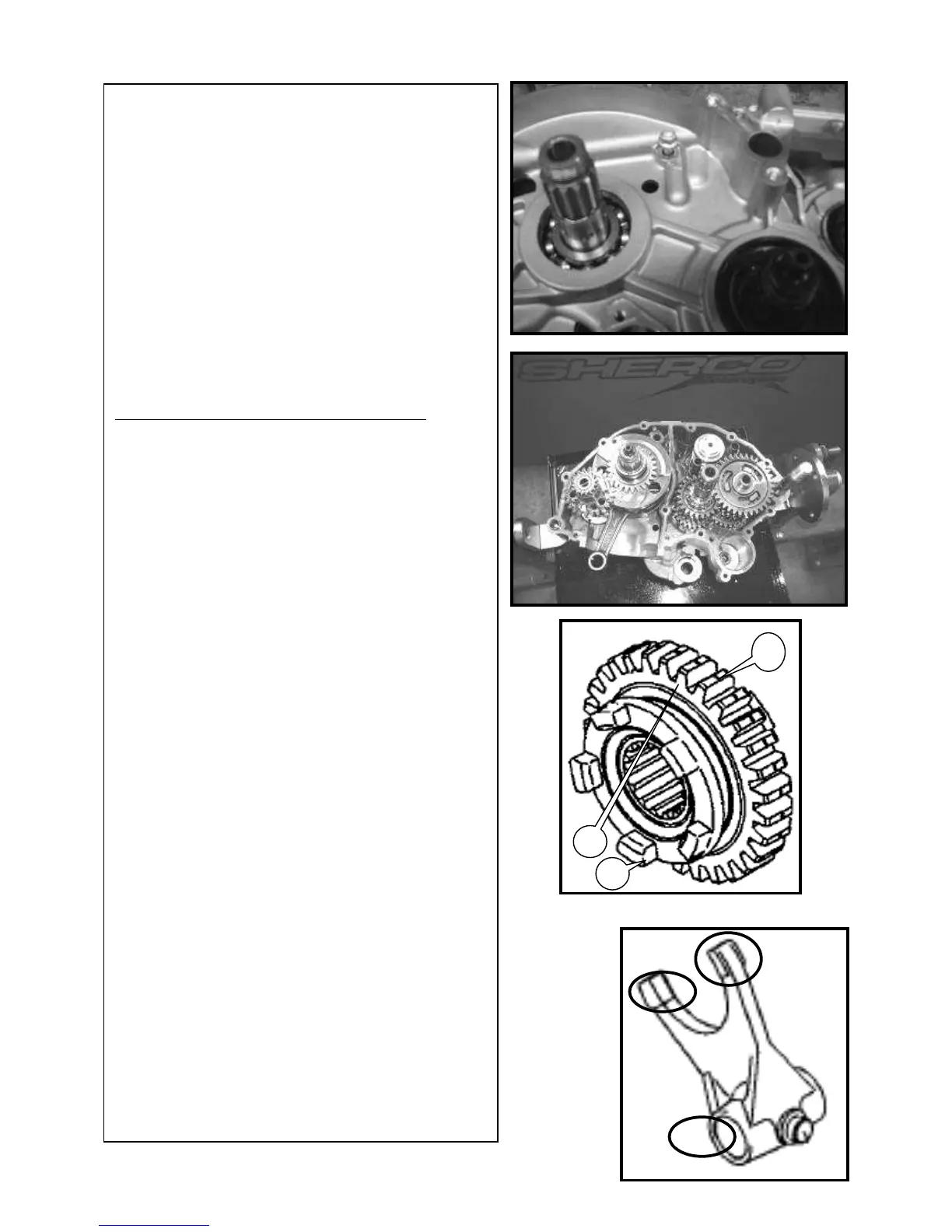

Checking the transmission components:
• Check the condition of all the gears.
Inspect the engagement dogs [A], look at all of
the gear teeth [B] and the fork shifting groove
on each gear [C].
If any of the parts are damaged or badly worn
they should be replaced.
• Check the condition of all the shifting
forks.
Replace the shifting forks if necessary.
• Check the condition of the gear selector
drum, make sure it is not deformed, damaged
or badly worn.
Replace the gear selector drum if necessary.
