42/54

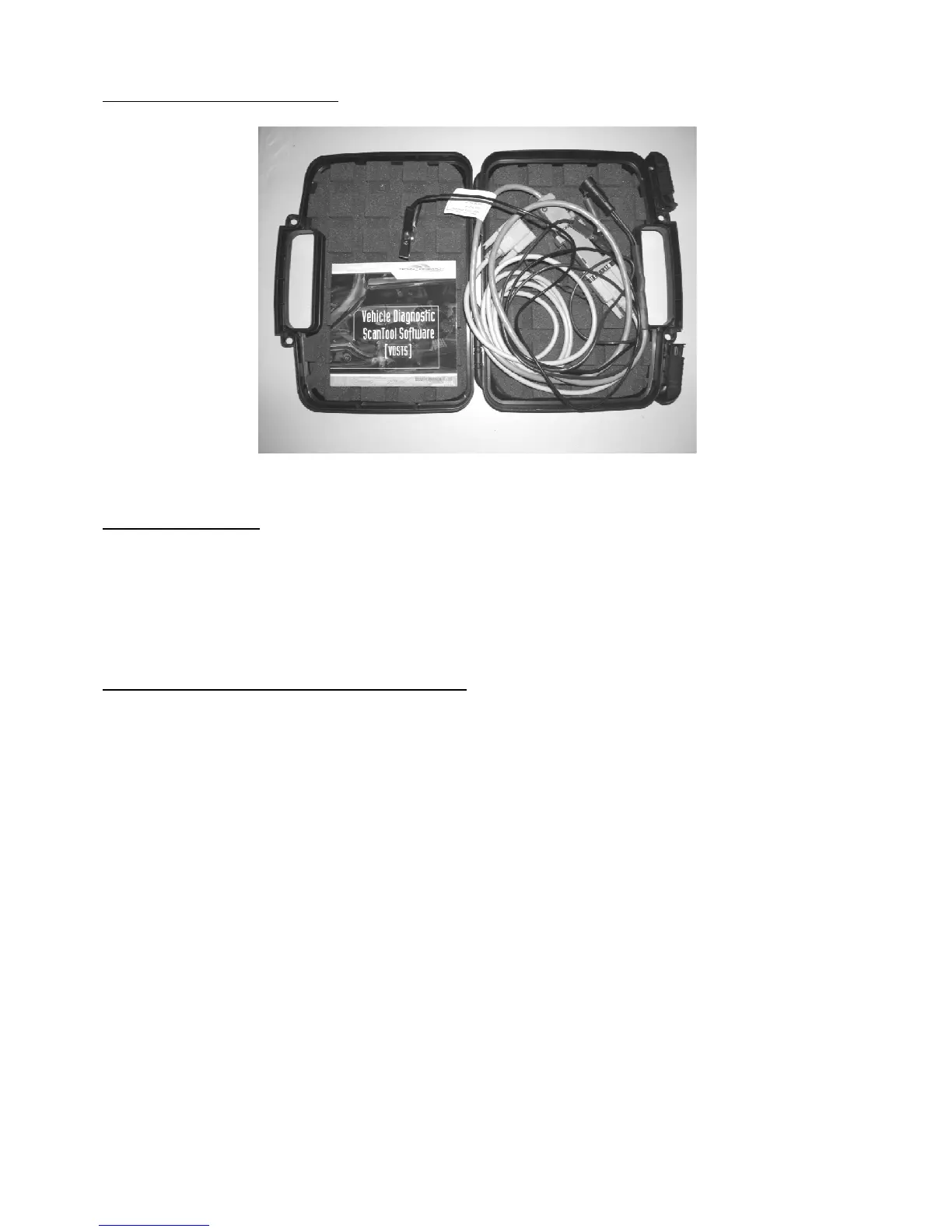

Contents of the diagnostic kit :
The diagnostic kit consists of an RS232 cable, battery cables and theVDSTS software.
Software installation
Insert the CD-ROM "Scan-Vehicle Diagnostic Software Tool" in your computer drive.
Run Setup setup.exe
Then follow the instructions on the screen.
Restart the computer.
Software presentation (the various interfaces) :
Communication menu : Allows you to select the serial port of your computer which is the
cable plugged into the vehicle
Instruments menu : Allows you to view real-time engine speed, battery voltage, the butterfly
opening, engine temperature, ambient temperature, atmospheric pressure, etc.
Graphs : Reproduces real-time graphical data.
Bar graph menu : Reproduces the data in bar graph format.
Function test menu : Allows you to test various components of the injection system.
Configuration menu : Allows you to check the synchronization the ECU / injector body and
the CO.
System error menu : Allows you to access the history of defects and flaws that have
occurred.
System status menu : Allows you to verify if all components of the system are functioning
properly.
