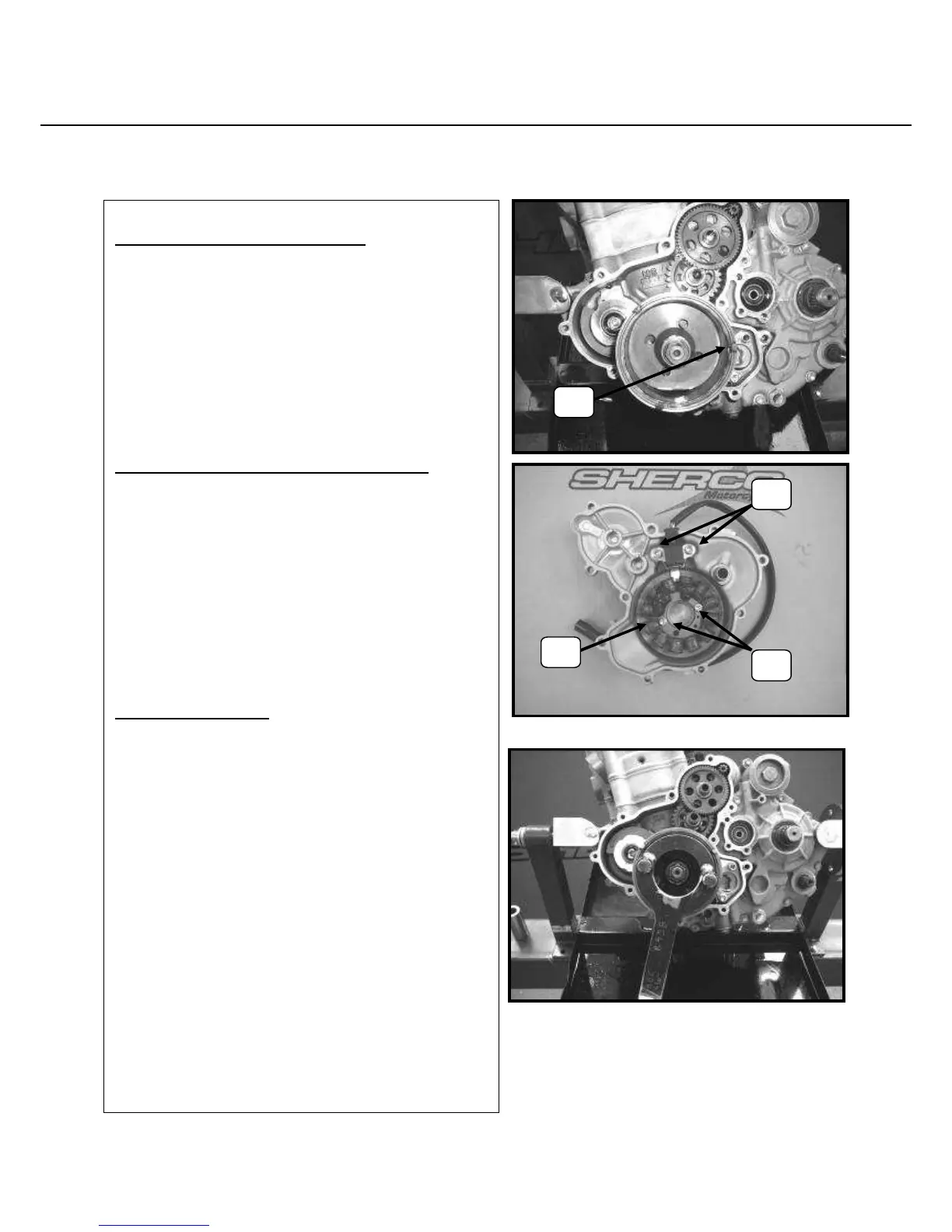

Disassembling the left side
For additional details refer to the parts catalog 250i and 300i.
Disassembling the ignition case:
• Drain the engine oil.
• Remove the 10 screws that retain the
ignition case.
• Visually inspect the inner surfaces of the
rotor [A] and the outer surfaces of the stator [B].
• Check the pulse generator (sensor)
• Replace if necessary.
Replacing the stator and sensor system:
• Remove the two screws that retain the
sensor [C] and the two screws that retain the
stator [D].
• Install the new parts.
• Reinstall the screws using the proper
torque.
Torque the stator and sensor screws to:
8Nm.
Removing the rotor:
• Utilize the special rotor holding tool
number 1815.
• Remove the rotor fixing nut.
