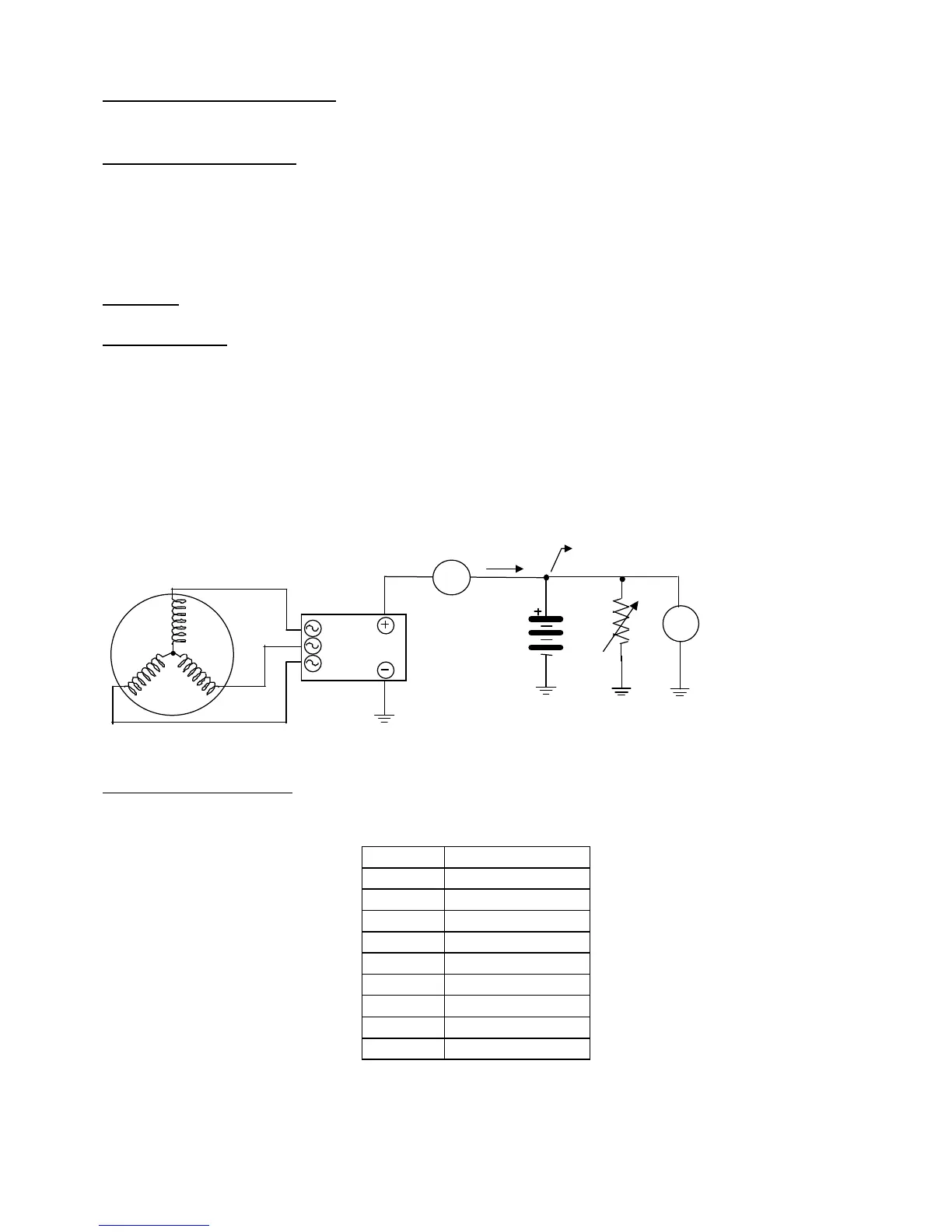

Electrical installation checking
Static values (engine off)
Tension battery : > 12.5V
Stator resistance : 1.5/1.6 Ohms
Pick up sensor : 170 Ohms
Check there is no continuity between stator and the ground of the motorcycle
Regulator
Dynamic values
Alternative 200V alternative caliber)
Low rpm: 22V +-2V
A 6000 rpm : 77V+-3V
Continue
Regulator pins out (Caliber 20V continue)
A 4000 tr/min : 14.6V + Red/white, - Green
Battery recharge current
Battery voltage const = 13.5V
Tolérance on typical values = -5% / +10%
V
BATT = 13,5V
B
ATT
I BATT
A
V
FLYWHEEL
REG
r.p.m.
Ampere d.c.
1000
5,0
1200
8,5
1500
11,6
2000
13,8
2500
15,0
3000
15,6
4000
16,2
5000
16,6
6000
16,8
