Parameter Description
Parameter Description

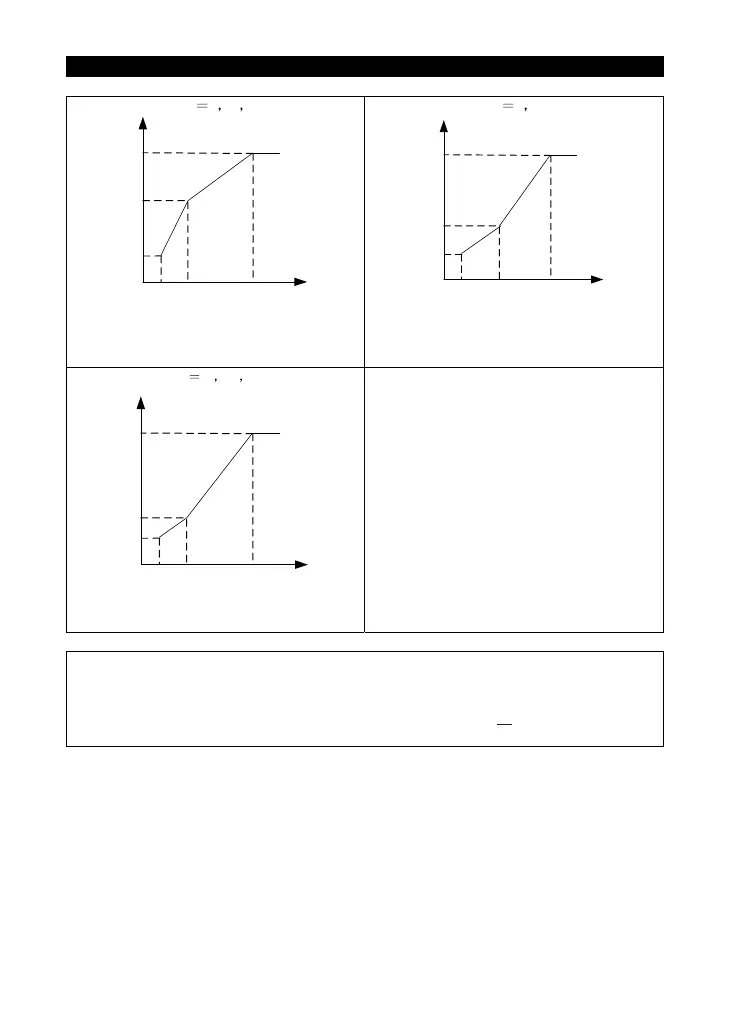

P.14 6 7 8
When P.14=6, A is 8.7%; when P.14=7, A is
10.4%; when P.14=8, A is 12.0%.
P.14
9 10
When P.14=9, A is 20.0%; when P.14=10, A is
25.0%.
P.14 11 12 13
When P.14=11, A is 9.3%; when P.14=12, A is
12.7%; when P.14=13, A is 16.1%.
Note: 1. According to the diagram above, set up the values of P.98, P.99 if one point is required; set up values of
P.98, P.99, P162, P.163 if two points are required; set up the values of P.98, P.99, P162, P.163, P164, P.165
if three points are required; and so forth.
2. If P.14 is set between 4 and 13, the curve will be invalid when the value of P.0
is larger than the value of A
and the value of P.14 will be equal to P.0
P.0
0 P. 3
P. 19
A
3.0
Output voltage
Output frequency
0.1
P.0
0 P. 3
P. 19
A
30
0.1
Output frequency
Output voltage
P.0
0 P. 3
P. 19
A
6
0.1
Output voltage
Output frequency
