Shimaden SRS11A User Manual


SRS11A

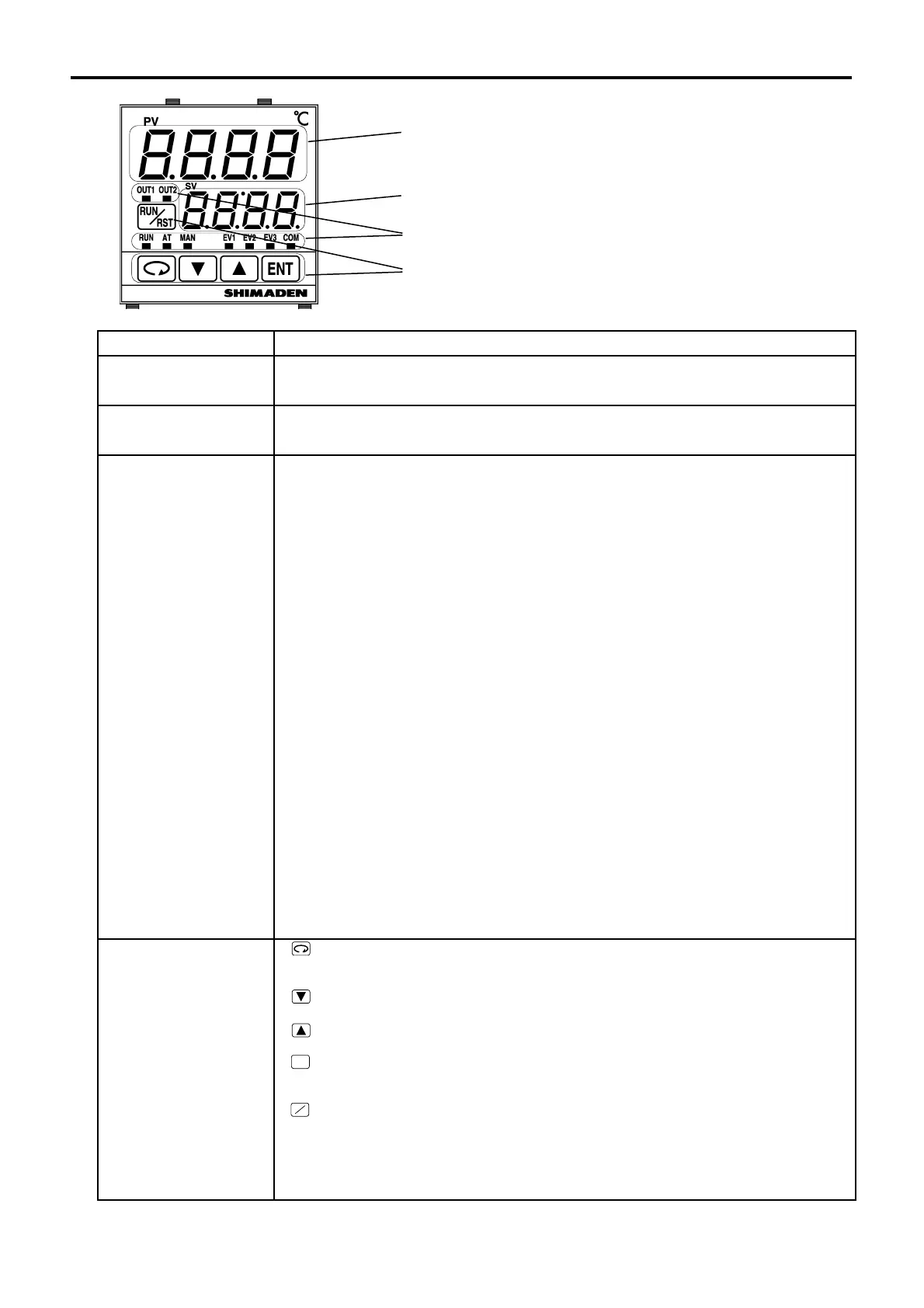

4. Names and functions of parts on front panel

Measured value (PV) display

Target set value (SV) display

Action display

Operating keys
Name Function

Measured value (PV)
display
(1) Measured value display LED (red)
• Displays current measured value (PV) on basic screen (screen 0-0).
• Dis
p
la
y
s t
yp
e of
p
arameter on each res
p
ective
p
arameter dis
p
la
y
screen.

Target set value (SV)
display

(2) Target value display LED (green)
• Displays current target set value (SV) on basic screen (screen 0-0).
• Dis
p
la
y
s settin
g
values on each res
p
ective
p
arameter settin
g
screen.

Action display
Displays status of controller.
• RUN: Action display LED (green)
Off: Control halt status (standby or reset)
On: Running by fixed value control status (FIX)
Flashing: Running by program control status (RUN)
• AT: Auto tuning LED (green)
Off: Auto tuning not executed
On: Auto tuning standby
Flashing: Auto tuning being executed
• MAN: Manual control LED (green)
Off: Automatic control operating status
Flashing: Manual control operating status
• OUT1: Control output 1 (green)
• OUT2: Control output 2 (green)
For output by contact or SSR drive voltage:
Off: Output is OFF.
On: Output is ON.
For voltage/current output:
Brightness changes according to the output ratio.
(Light illuminates brightly when output is 100% and dimly when output is 0%.)
• EV1: Event output 1 (orange)
• EV2: Event output 2 (orange)
• EV3: Event output 3 (orange)
Off: Event output is OFF.
On: Event output is ON.
Note: Always off when event output is not selected as an optional item.
• COM: Communication mode (green)
Off: Communication LOC mode
On: Communication COM mode
Note: Always off if communication function is not selected as an optional item.

Operating keys
• : Parameter key
Displays the next screen in various screen groups
Pressing and holding for at least 3 seconds on 0-0 screen displays 4-0 initial settings screen group.
• : Down key
Decrements setting values.
• : Up key
Increments setting values.
• : Enter key
Enters setting values.
Displays various screen groups if no SV values are being modified on the basic screen.
• : RUN/RST key
Pressing and holding for at least 2 seconds in STBY (RST) status switches to EXE (RUN).
Pressing and holding for at least 2 seconds during EXE (RUN) switches to STBY (RST).
status.


Fixed value control (FIX mode) STBY: Standby status EXE: Control execution status
Program control (PROG mode)
RST: Reset status RUN: Program execution status



