5 Maintenance and Inspections
5.5 Replacing Photomultiplier
67
FPD-2010

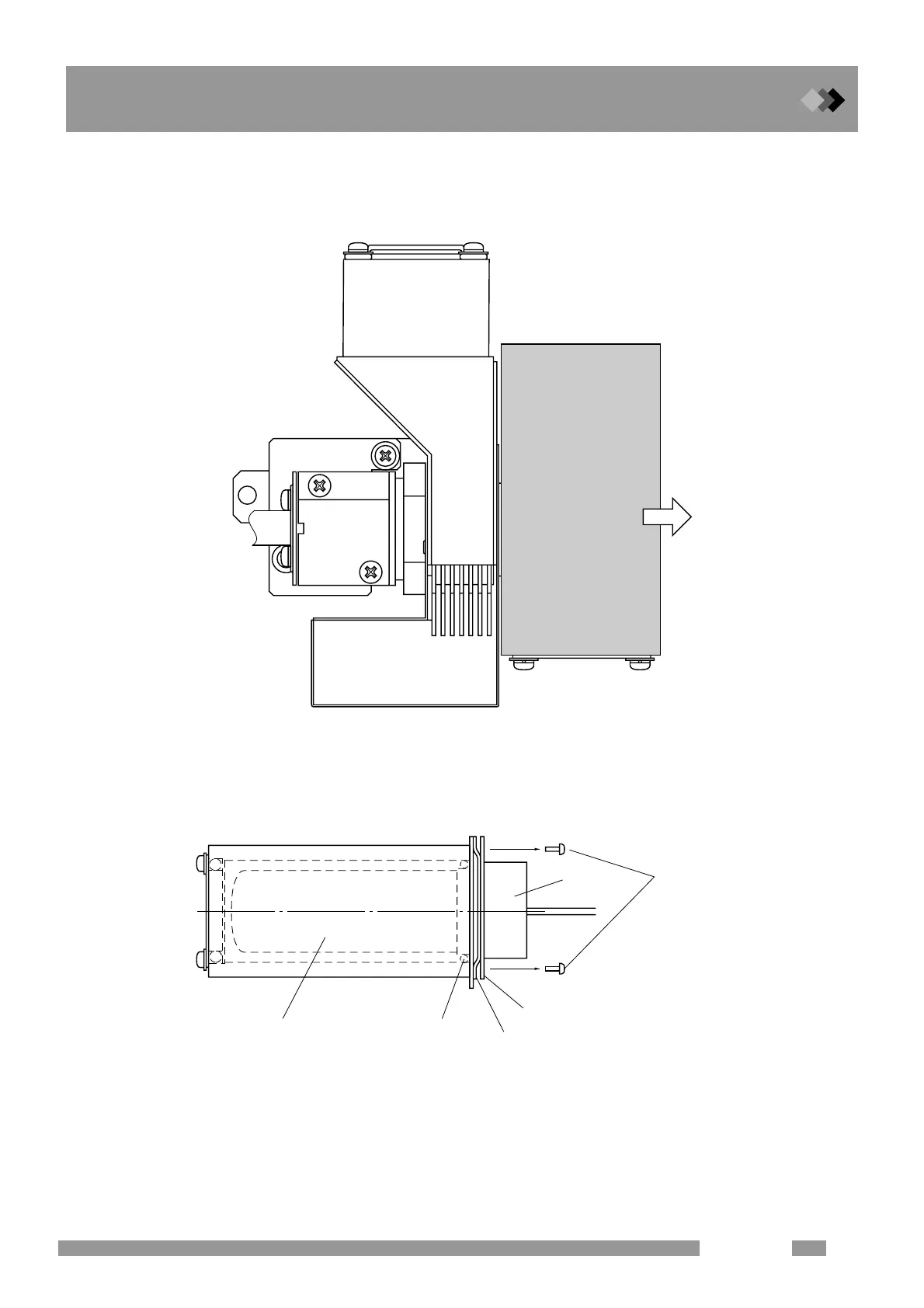

4.
Slowly pull out and remove the photomultiplier to the side while holding it with both hands.
In order to prevent light entering into the removed photomultiplier
, cover the opening of the
photomultiplier with aluminum foil and the like.
Photomultiplier
Fig. 5.5.4
5.
Remove the two fixing screws on the photomultiplier socket.
Socket
Fixing screw
Sheet metal
Rubber plate
O-ring
Photomultiplier
Fig. 5.5.5
72
74
Table of Contents
Table of Contents
5
Outline
7
Principle of the FPD (Flame Photometric Detector)
7
Parts List
9
Basic Operation
11
Introduction
11
Gas Used
12
Comfirming the Filter
13
Shield Ring Height Check
18
Checking Glass Insert and Injection Port Septum
24
Mounting the Column
25
Setting the Detector Temperature
26
Setting the Temperature of the Column Oven and the Injection Port
28
Setting the Flow Rate
30
System Start-Up
31
Setting Flow Rate of Detector Gases (Hydrogen/Air)
32
Igniting the FPD
34
Setting the Ranges and the Attenuation
36
Baseline Check
37
Example of the Chromatogram
38
Method for Stopping
40
Key Operations
41
Key Operation of FPD
41
Maintenance and Inspections
59
Precautions for Maintenance and Inspections
59
Turning off the Power
60
Cleaning and Replacing the Quartz Cylinder
61
Maintenance and Replacement of the Filter
64
Replacing Photomultiplier
70
Replacing the Battery
76
Troubleshooting
79
Error Messages
82
Maintenance Parts
83
Maintenance Parts List
83
Specifications
85
Specifications of the FPD-2010
85
Appendix
87
Quenching
87
