Shimax MAC6A - FIX (Constant Value Control) Setting Screens

38
3 seconds
6-5. FIX (constant value control) setting screens
When is chosen on Action mode2 screen of basic screens, lead screen of FIX setting
screens is displayed when key is pressed for 3 seconds at the basic screen.
If key is pressed for 3 seconds on lead screen of SV1 – SV8, it returns to basic screen.

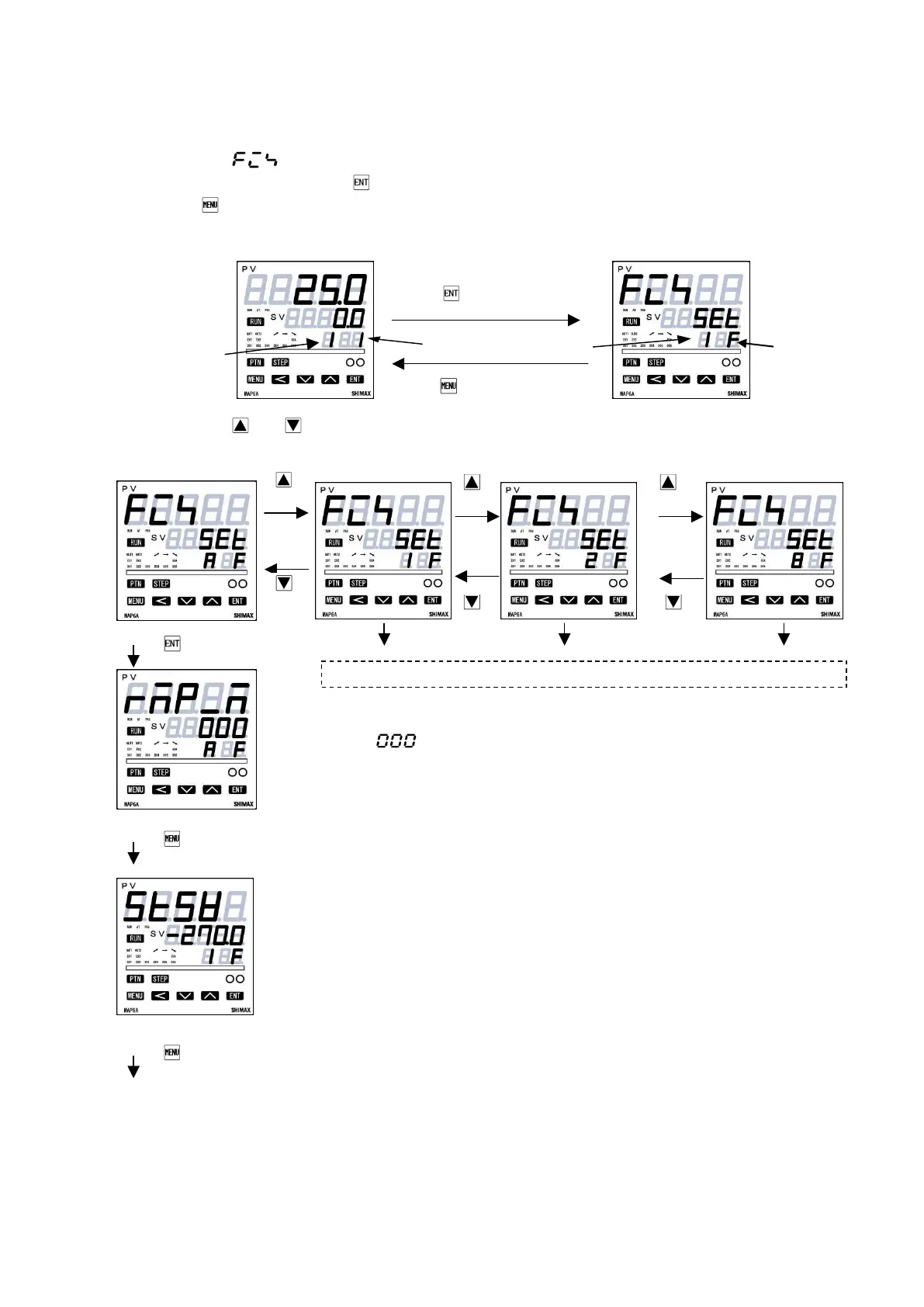

Basic screen SV 1 lead screen
3 seconds
Press and at SV 1 lead screen it move to SV2 SV3 SV4……
Ramp&Soak function mode setting screen
Initial value (Trigger ABC)
* Please refer explanation of Ramp & Soak function page 39.
Start SV setting screen
Initial value : Lower value of measuring range
Setting range : within measuring range
Refer to page 45
SV No
PID No
SV No
FIX setting
