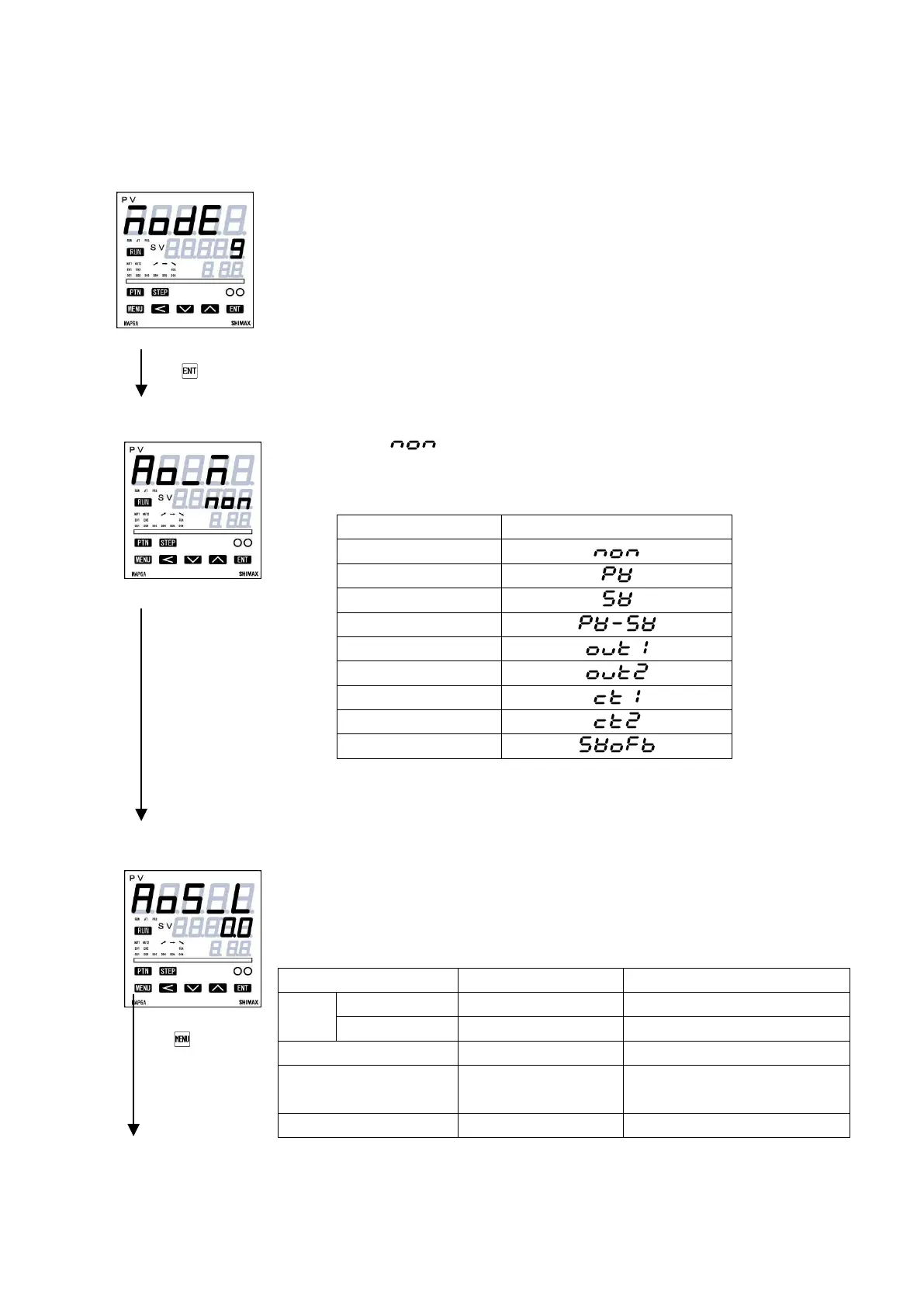

6-6-9. Mode9 AO setting
Not displayed when AO function is not installed
AO mode setting screen
Initial value:
Setting range: Chosen from event type character table.
Data type allotted to analog output are chosen.
AO scaling lower limit value setting screen
Initial Value : Refer to the table below
Setting range : Refer to the table below
Not displayed when AO mode is Non
Function
Character
Non
ＰＶ
Execution ＳＶ
PV-SV Deviation
Output１
Output２
CT1
CT2
Servo position
MODE
Setting range
Initial value
PV
SV
Sensor input
Within measuring range
Measuring range lower limit value
Linear input
Within scaling range
Scaling range lower limit value
PV-SV Deviation
-50%～50%
-50%
Deviation,Out1, Out2,
Servo position
0.0～100.0%
0.0%
CT1､CT2
0.0～49.9A
0.0A
