Shimax MAC6A User Manual

65

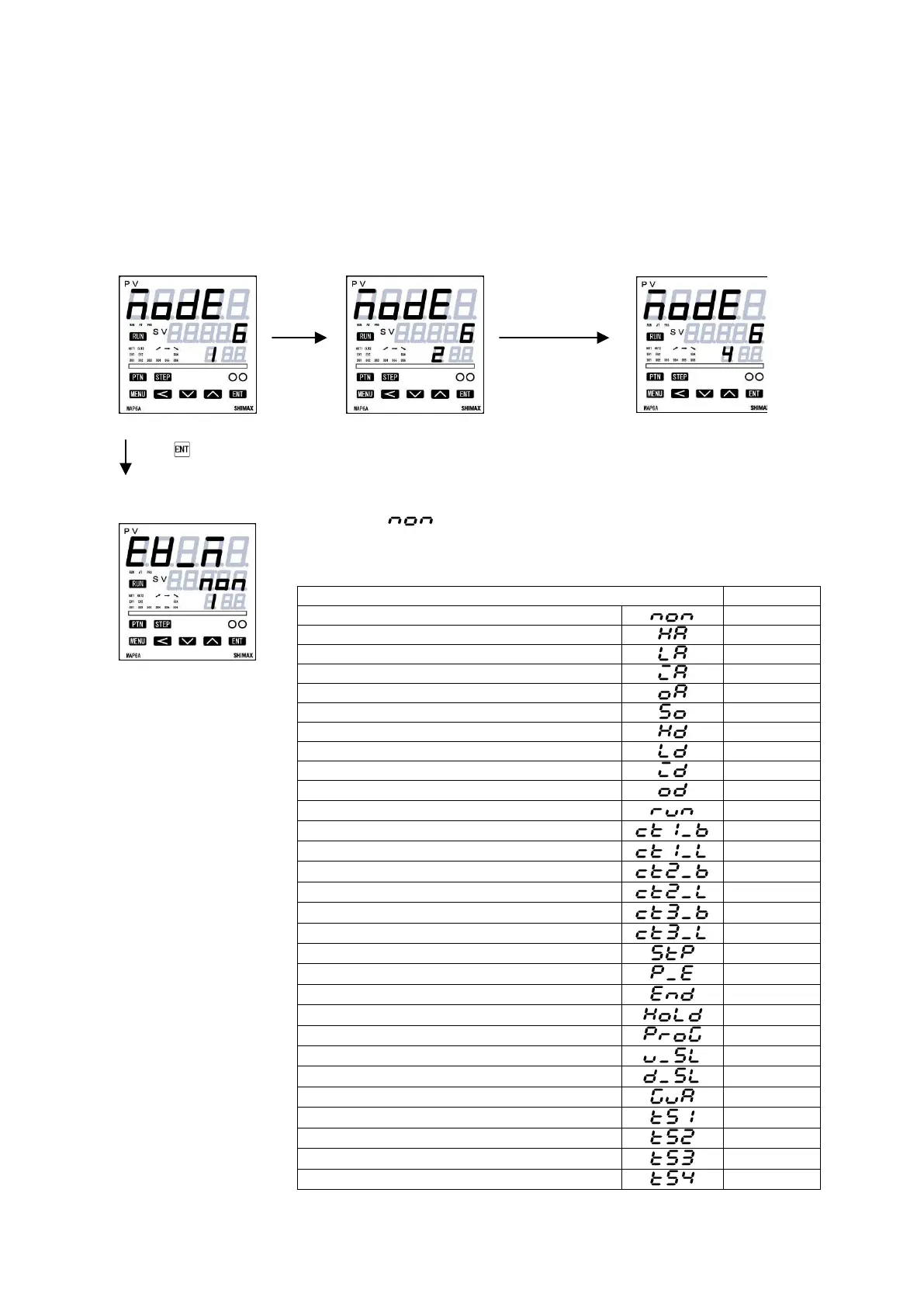

6-6-6. Mode6 Event 1～4setting
Mode 6 screens is the setup screens of event 1～4 option. Not displayed of Event 4 when option is not added.
Press shift key to shift ＥＶ１～４.
EV１ Lead screen EV2 lead screen EV4 lead screen
shift shift
Event 1 operation-mode setting screen
Initial Value:
Setting range : Chosen from event type character table.
Being initialized if measuring range, scaling, and unit are changed.
function
Note
No allotment
Default
Upper limit absolute value alarm
Lower limit absolute value alarm
Within Absolute Value alarm
Without Absolute Value alarm
Scale over alarm
Upper limit deviation value alarm
Lower limit deviation value alarm
Within deviation alarm
Without deviation alarm
ＲＵＮ signal
ＣＴ１ Control loop alarm （heater braking）
ＣＴ１ Control loop alarm (loop)
ＣＴ２ Control loop alarm （Heater braking）
ＣＴ２ Control loop alarm （loop）
3 phases Control loop alarm （Heater braking）
3 phases Control loop alarm （loop）
Step signal
Pattern end signal
Program end
Step hold signal
Program signal
Up slope signal
Down slope signal
Guarantee signal
Time signal １
Time signal 2
Time signal 3
Time signal 4
