Shimax MAC6A User Manual

74
6-6-10. Mode10 AI setting
Not displayed when AI function is not installed

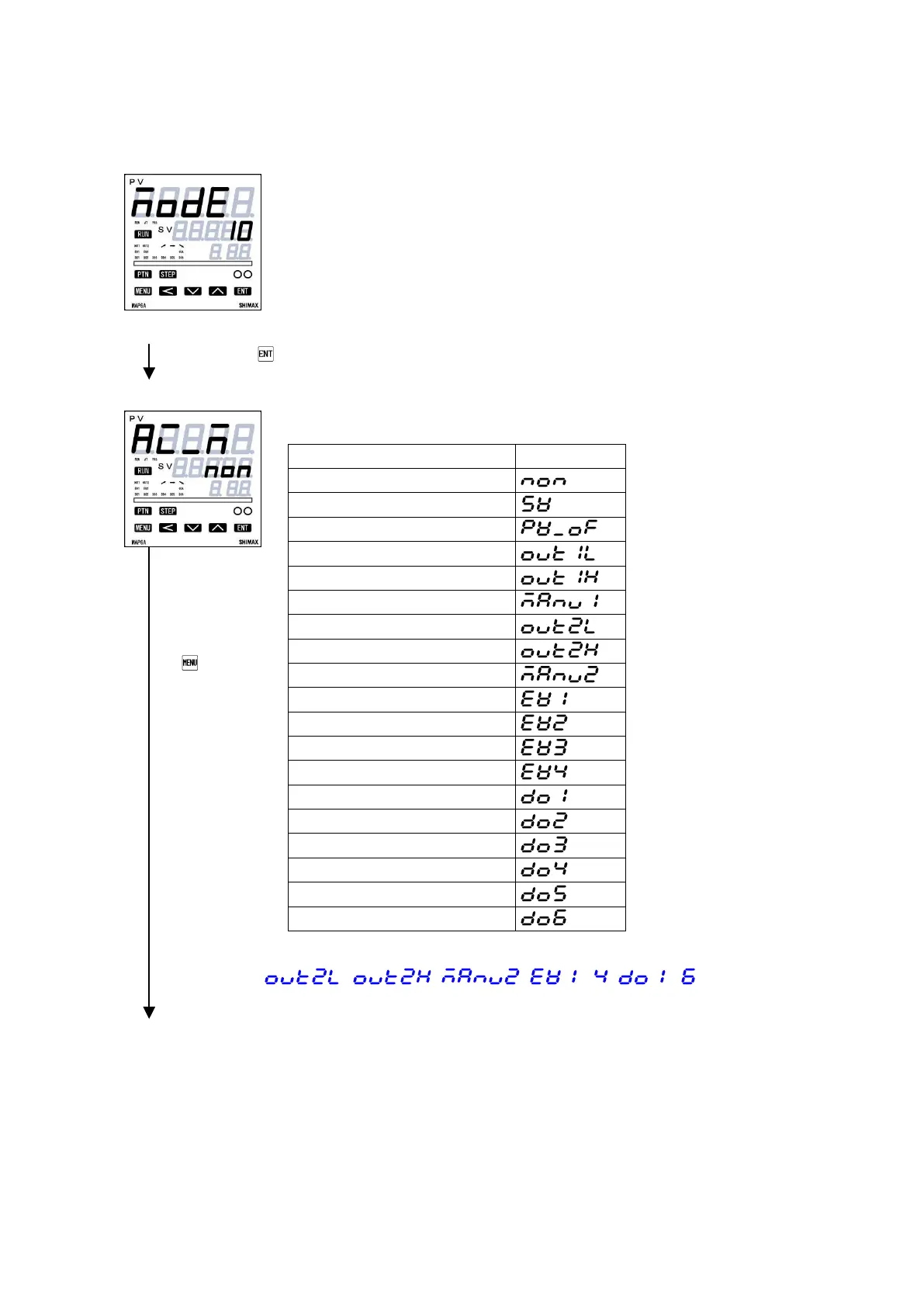

AI operation mode setting screen
Initial Value : Non
Setting range : chosen from AI operation character table
No display when no option function or no function allotted below function:
、 、 、 ～ 、 ～
Execute SV value can be effected at FIX control, it can be set at program control but not
effective.
Manual operation point can be effected at Manual control.
Function
Character
Non
Executing SV
ＰＶ offset correction
Out1 lower limit
Out1 upper limit
Out1 manual operation point
Out2 lower limit
Out2 upper limit
Out2 manual operation point
Event 1 operating point
Event 2 operationg point
Event 3 operating point
Event 4 operating point
DO1 operating point
DO2 operating point
DO3 operating point
DO4 operating point
DO5 operating point
DO6 operating point
