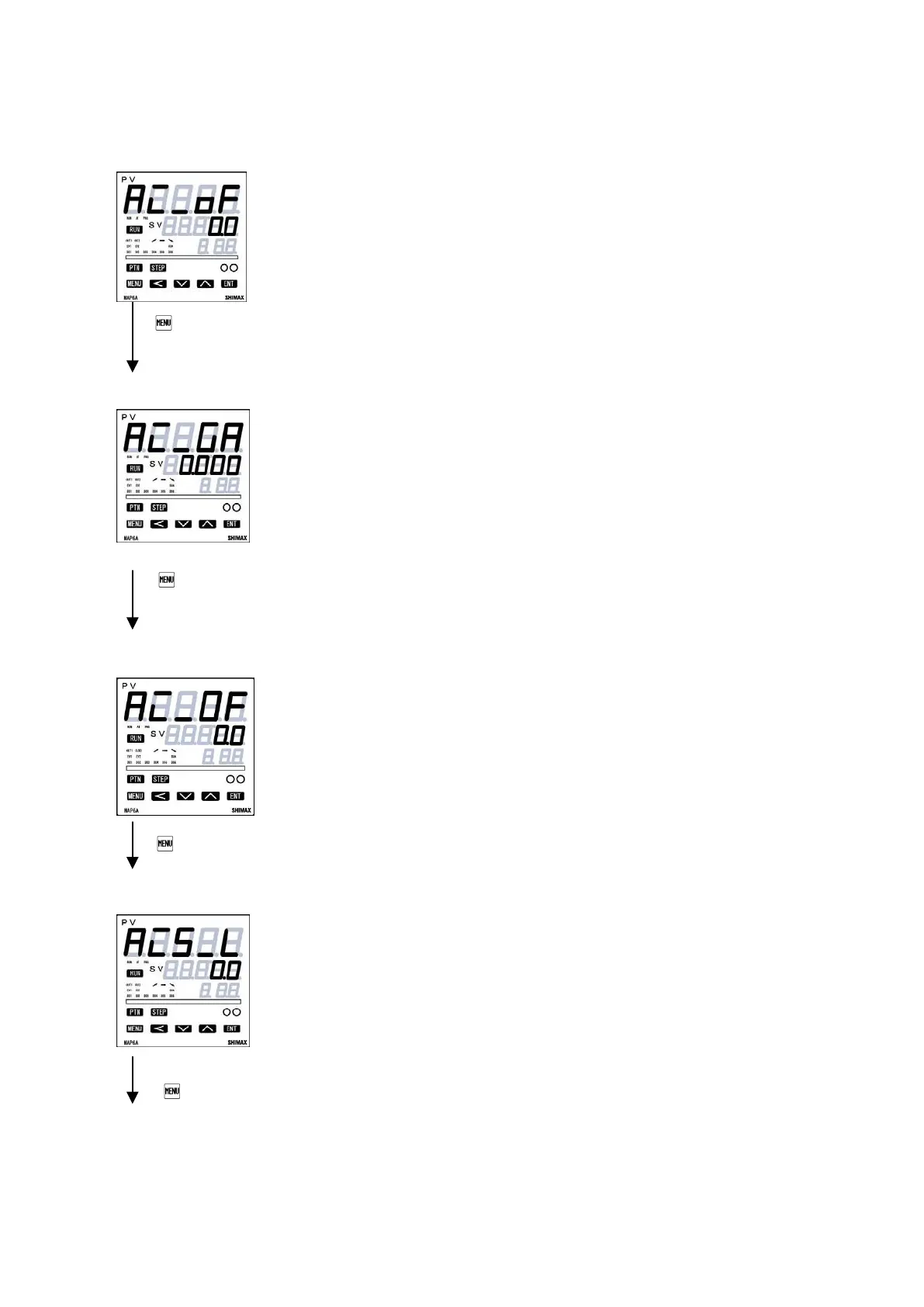

AI offset correction setting screen
Initial value : 0.0
Setting range : -5000～5000digit
Offset can be corrected input signal.
AI gain correction setting screen
Initial value : 0.000
Setting range: ±5.000
Maximum input value is corrected within limit of ±5.00% of measuring range.
If corrected, inclination of span changes in straight line which connects zero point
and correction maximum value.
AI filter setting screen
Initial value : 0
Setting range : 0～10000 sec
When input change is violent or noise is overlapped, used in order to ease the
influences.
In 0 second setting, filter does not function.
AI scaling lower limit setting screen
Initial value : 0 or lower limit of each range.
Setting range : refer to the setting range table.
Lower limit value of range allotted to analog input is set up
An analog input limiter can be made into reverse scaling.
