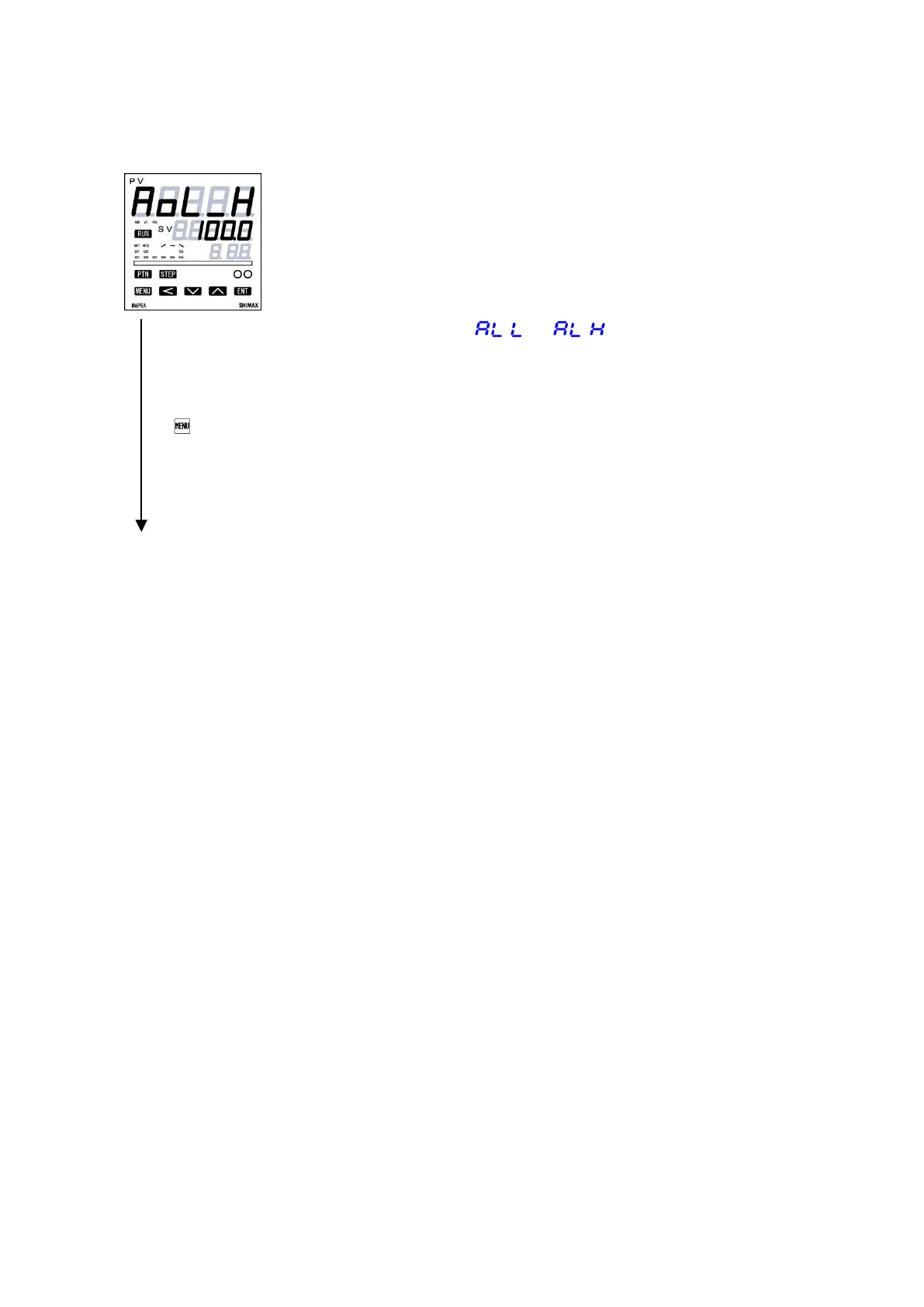

Analog output limiter upper limit value setting screen
Initial value : 0.0%
Setting range : 0.0～100.0%
The lower limit value of analog output value (4-20mA or 0-10V) is set up by %.
For example, output value of a lower limit value in each setup are : 8mA(25.0),
12mA(50.0), 16ｍＡ(75.0) and 20ｍＡ(100.0) respectively.
Not displayed when AO mode is Non
If set as the same value as _ and _ , it is fixed to the value.
An analog output limiter can be made into reverse scaling.
Example:
Output range: 0℃ (4mA) ～ 1200℃ (20mA) can be 0℃ (20mA) ～ 1200℃ (4mA).
Set AL_L as 100% and AL_H as 0%.
Rating : 4-20mA DC MAX load resistance 300 Ω
0-10V DC MAX load current 2mA
