Shimax MAC6A User Manual

72

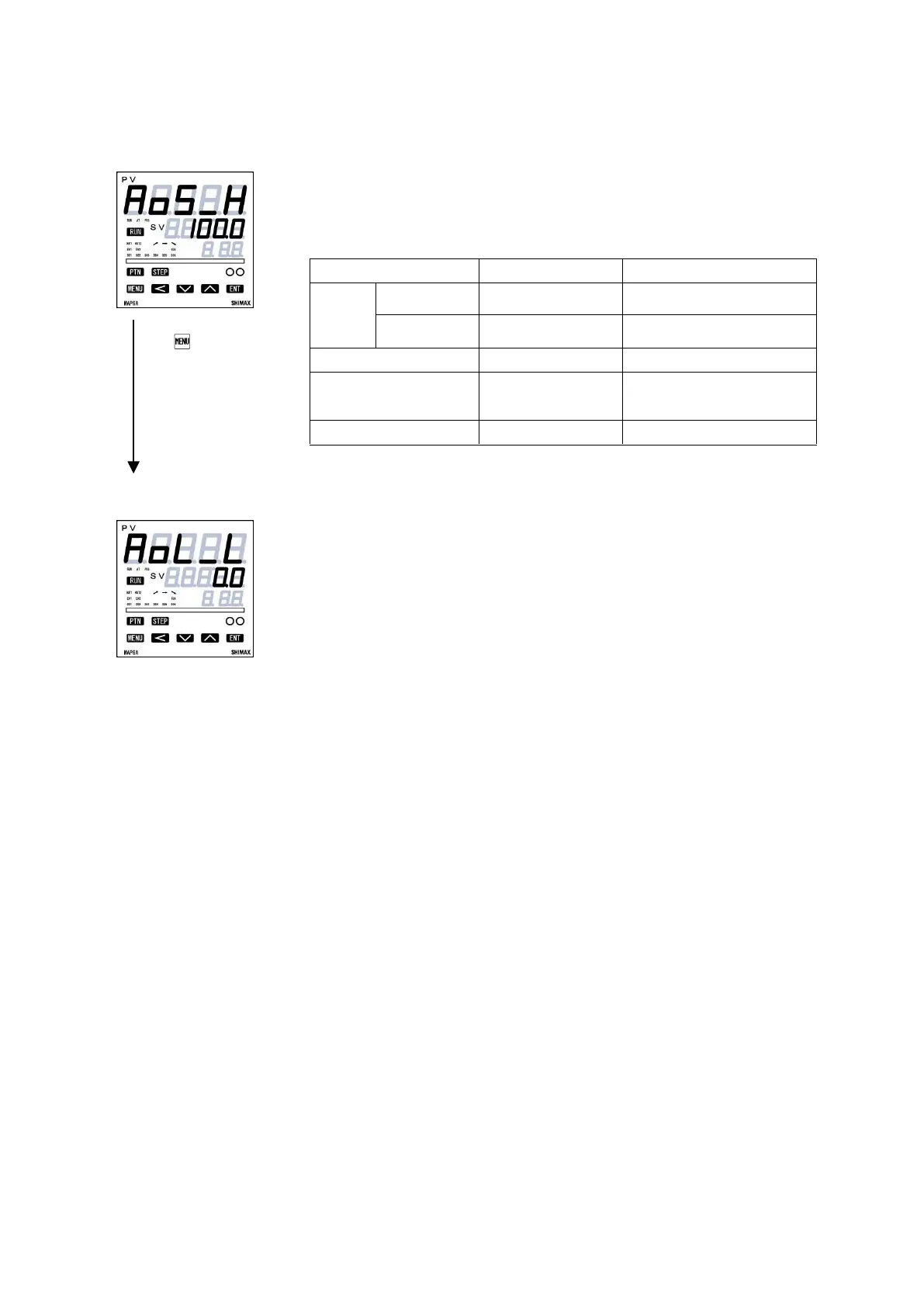

AO scaling upper limit value setting screen
Initial Value : Refer to the table below
Setting range : Refer to the table below
Not displayed when AO mode is Non
Analog output limiter lower limit value setting screen.
Initial value : 0.0%
Setting range : 0.0～100.0%
The lower limit value of analog output value (4-20mA or 0-10V) is set up by %.
For example, output value of a lower limit value in each setup are : 8mA(25.0),
12mA(50.0), 16ｍＡ(75.0) and 20ｍＡ(100.0 ) respectively.
Not displayed when AO mode is Non.
MODE
Setting range
Initial value
PV SV
Sensor input
Within measuring range
Measuring range upper limit value
Linear input
Within scaling range
Scaling range upper limit value
PV-SV Deviation
-50%～50%
50%
Deviation,Out1, Out2,
Servo position
0.1～100 %
100%
CT1､CT2
0.1～50.0A
50.0A
