Shimax MAC6A - Page 41

40
Trigger B SV No, changed from Key or DI signal
：Invalid
：It will calculate SV value just before status changed will be start
SV, SV value after status changed will be end SV value
Triger B

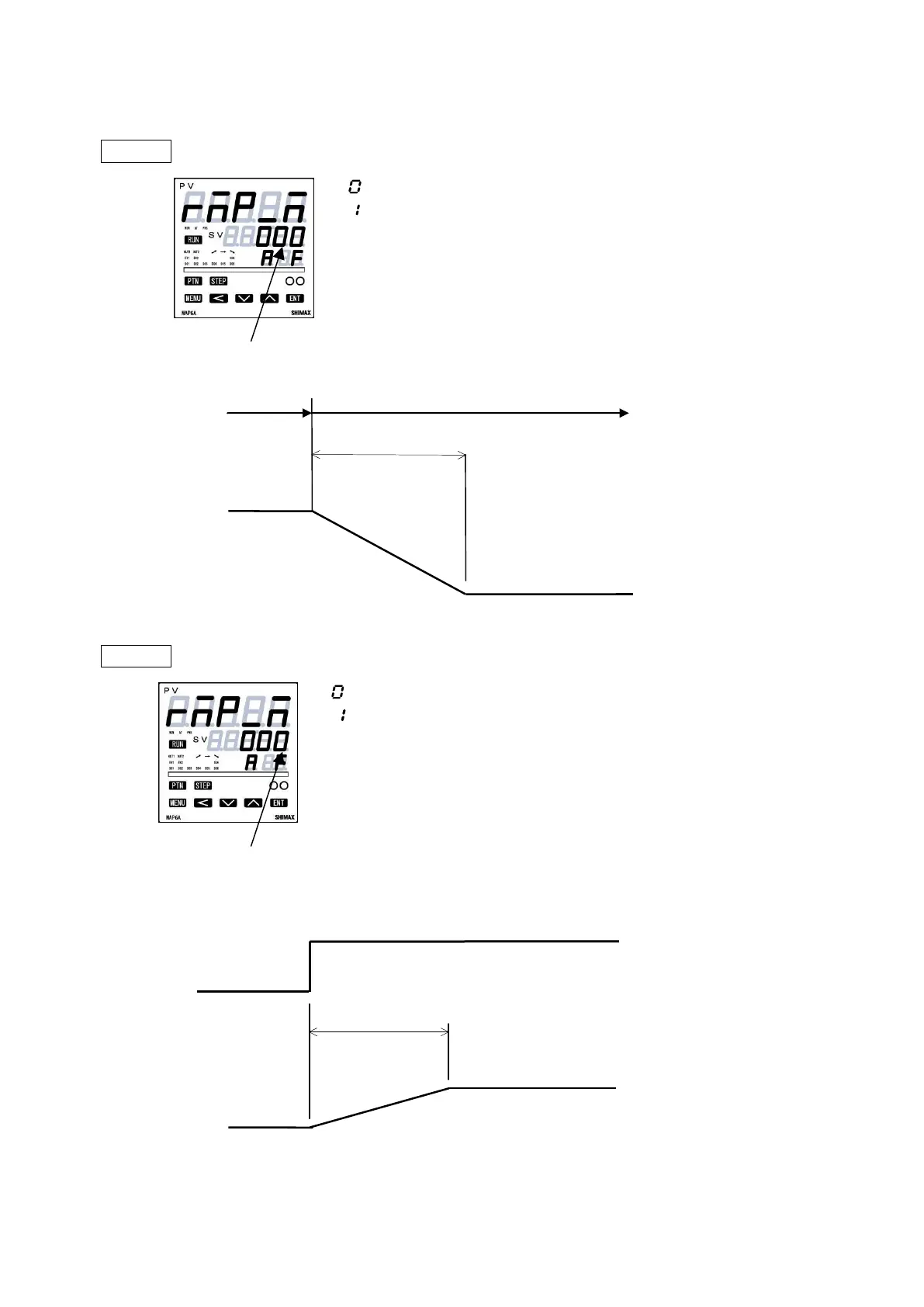

Example of Trigger B
Execution SV No = 1 Execution S V N o = 2
Ｒａｍｐ time
Ｎｏ１－ＳＶ Value
Ｎｏ２－ＳＶ Value
Trigger C SV value changed for manual key operation
： Invalid
： It will calculate SV value just before status changed will be start SV, SV
value after status changed will be end SV value
Triger C
Example of Trigger C
３００℃
ＳＶ Value
R am p time
ＳＶ Change
Execution ＳＶ
１００℃
