Shimax MAC6A User Manual

47

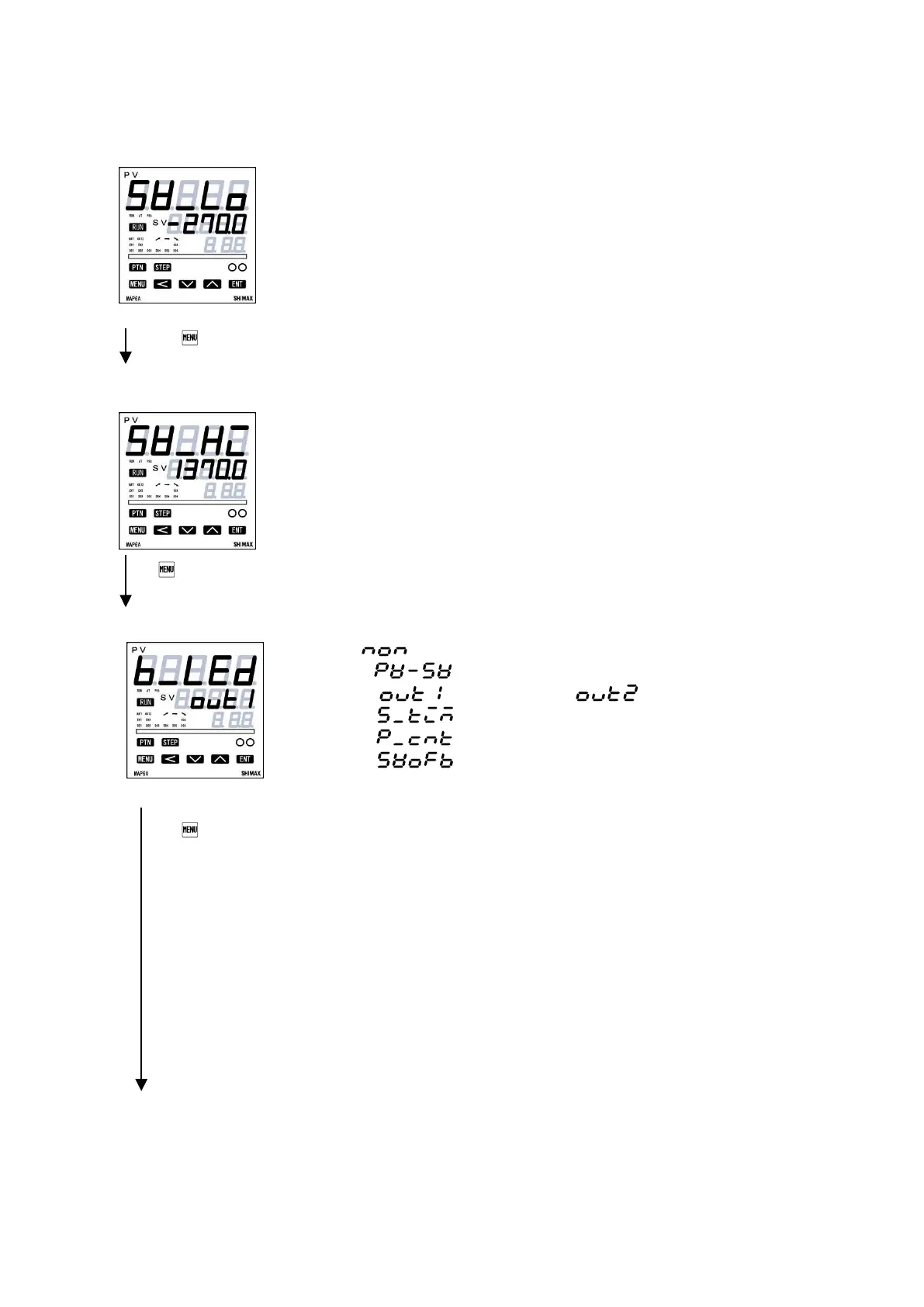

SV limiter lower limit setting screen
Initial value: measuring range lower limit
Setting range: measuring range lower limit value to measuring range upper limit value
－1.
When upper limit value is smaller than lower limit value, the value compulsorily becomes
lower limit value +1.
SV limiter upper limit value setting screen
Initial value : measuring range upper limit
Setting range : SV limiter lower limit value +1 ～ measuring range upper limit value
Bar graph setting screen
Initial value:
Setting range: （ＰＶ－ＳＶ deviation value）
(OUT1 output rate), (OUT2 output rate)
（Step time rate）
（program pattern execution number）
（Servo out position）
Bar graph displayed Output value, Valve position, progress of the program operation by 0 to 100%.
(5% / dot)
When bar graph is allotted to program functions, Execution finish will be “ON” and will be
“blinking” during execution.
When it set ∞ at Step time rate, bar graph lighting up repeated in left and right.
