Out2 PID common character setting screen
Initial value:
Setting range: 、

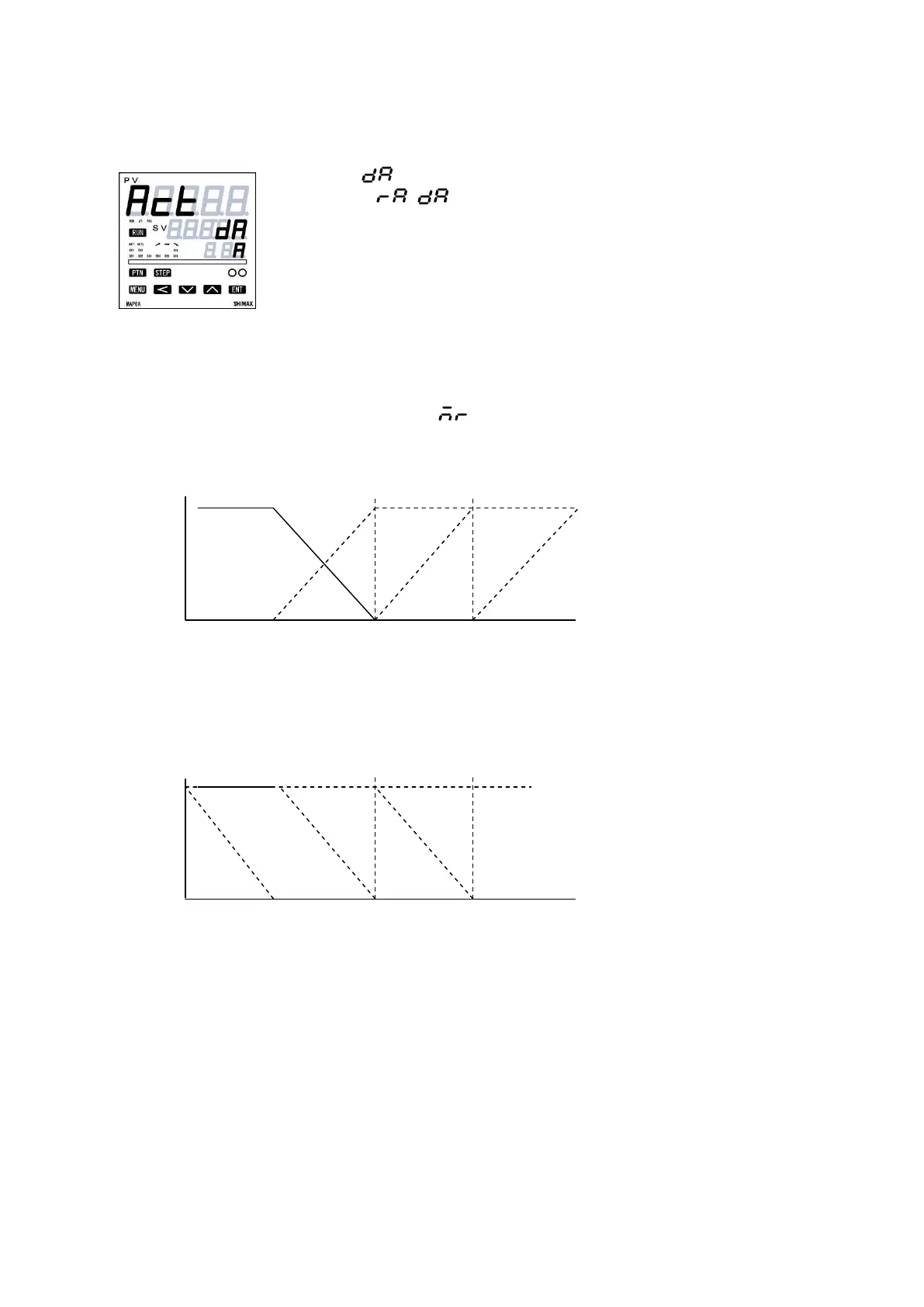

Explanation of 2 output-characteristics figure
Two output characteristics is shown in the following figure.
◎ Conditions: P operation, manual reset ( ) = -50.0%
1) OUT 1 RA (heating) ・OUT 2 DA (cooling) operation
control output 1 (RA characteristics) control output 2 (DA characteristics)
output 100%
output 0%
▲ △ ▲
－DB DB = 0 +DB
△ : Setting Value (SV) ▲: DB (dead band)
2) OUT 1RA (heating)・ OUT 2 RA (heating)
control output 1 (RA characteristics) control output 2 (RA characteristics)
output 100%
output 0%
▲ △ ▲
－DB DB = 0 +DB
△ : Setting Value (SV) ▲: DB (dead band)
