101(108)
filter screen of the strainer periodically.
3) Cleaning steps: turn off power and cooling water supply. Open the top cover
of filter screen to clean the filter.

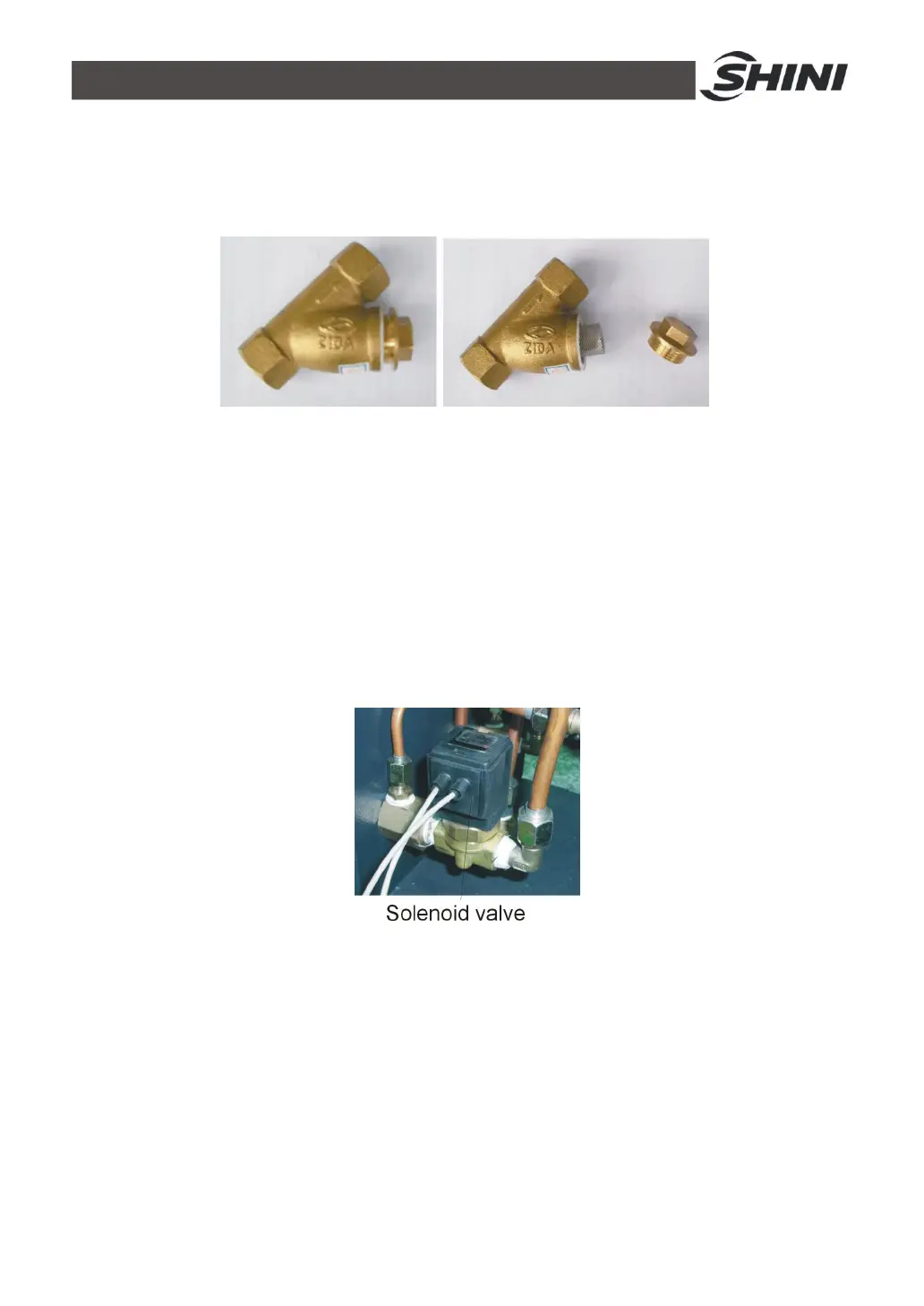

Picture 6-4：Y Type Strainer
6.3 Solenoid Valve
Replace solenoid valve:
1) Open machine top cover.
2) Take down right side cover.
3) Unfix the solenoid valve for replacement.
4) Install the covers in a reverse order.
Picture 6-5：Solenoid Valve
6.4 Pipe Heater
1) Pull the black door locker downward, then draw it outward to open machine
rear cover. (Refer to pictures below)
To Next Page
