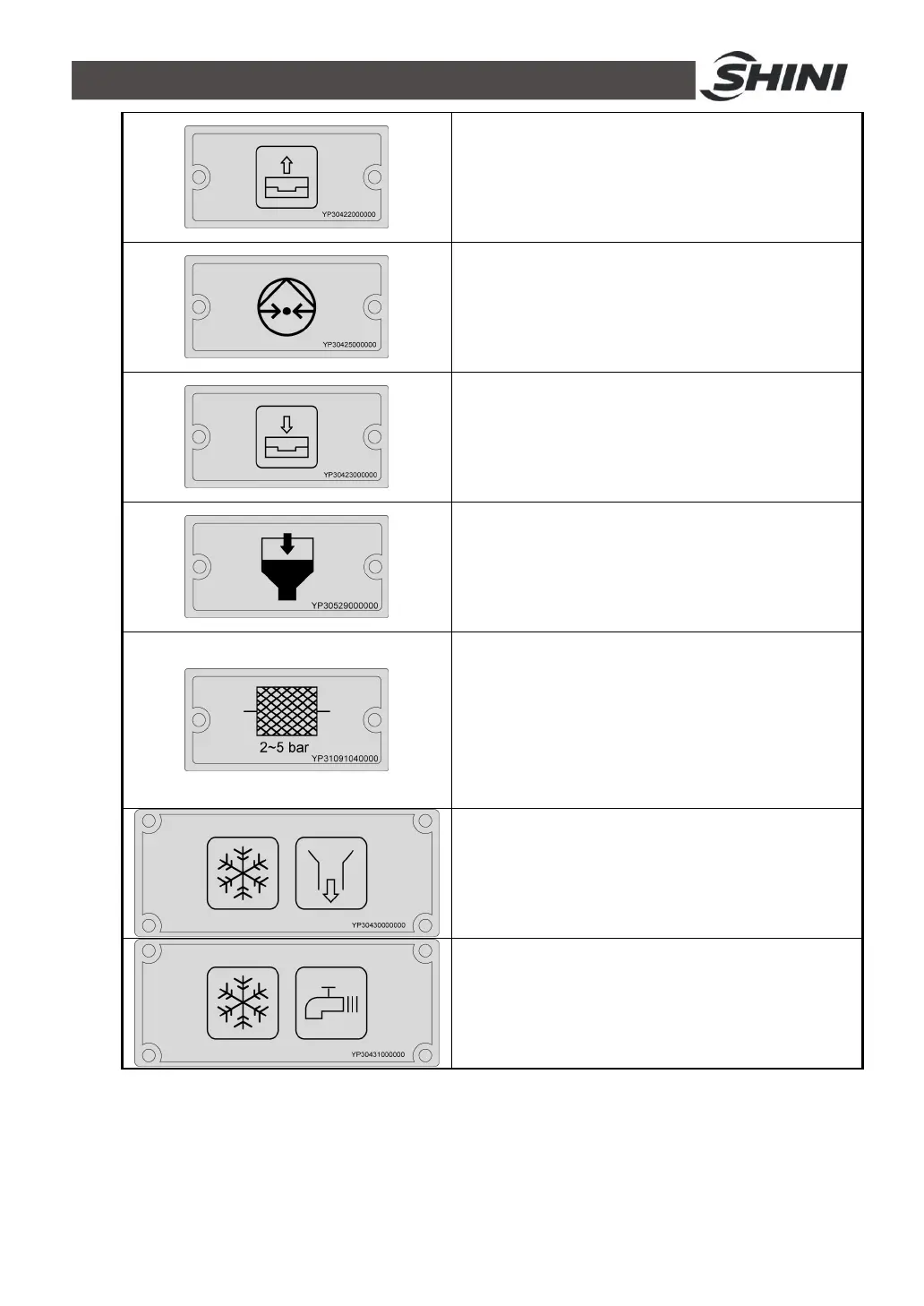

From mould: connector for circulating
water/oil coming from mould.
Pump pressure meter: indicating actual
pressure of system.
To mold: connector for circulating water/
oil to go to mould.
Oil inlet: oil filler for machine.
1. To maintain temperature consistency,
cooling water pressure must be higher
than 2 bar at all time, but should never
exceed 5 bar in any case.
2. Clean Y-shape Cooling Water Strainer
periodically to ensure perfect cooling
capacity.
Water outlet: drainage outlet.
Water inlet: inlet for replenishing water
and cooling water.
1.4.3 Operation Regulations
1) Before operation, make sure that cooling water is clean soft water without
pollutants.
