3.2 Mould and Water Coupling
1) When connect mould coupling with pipes from the mould. Use a spanner to
secure one end of the coupling, insert mould connecting pipe and fasten it by
another spanner.

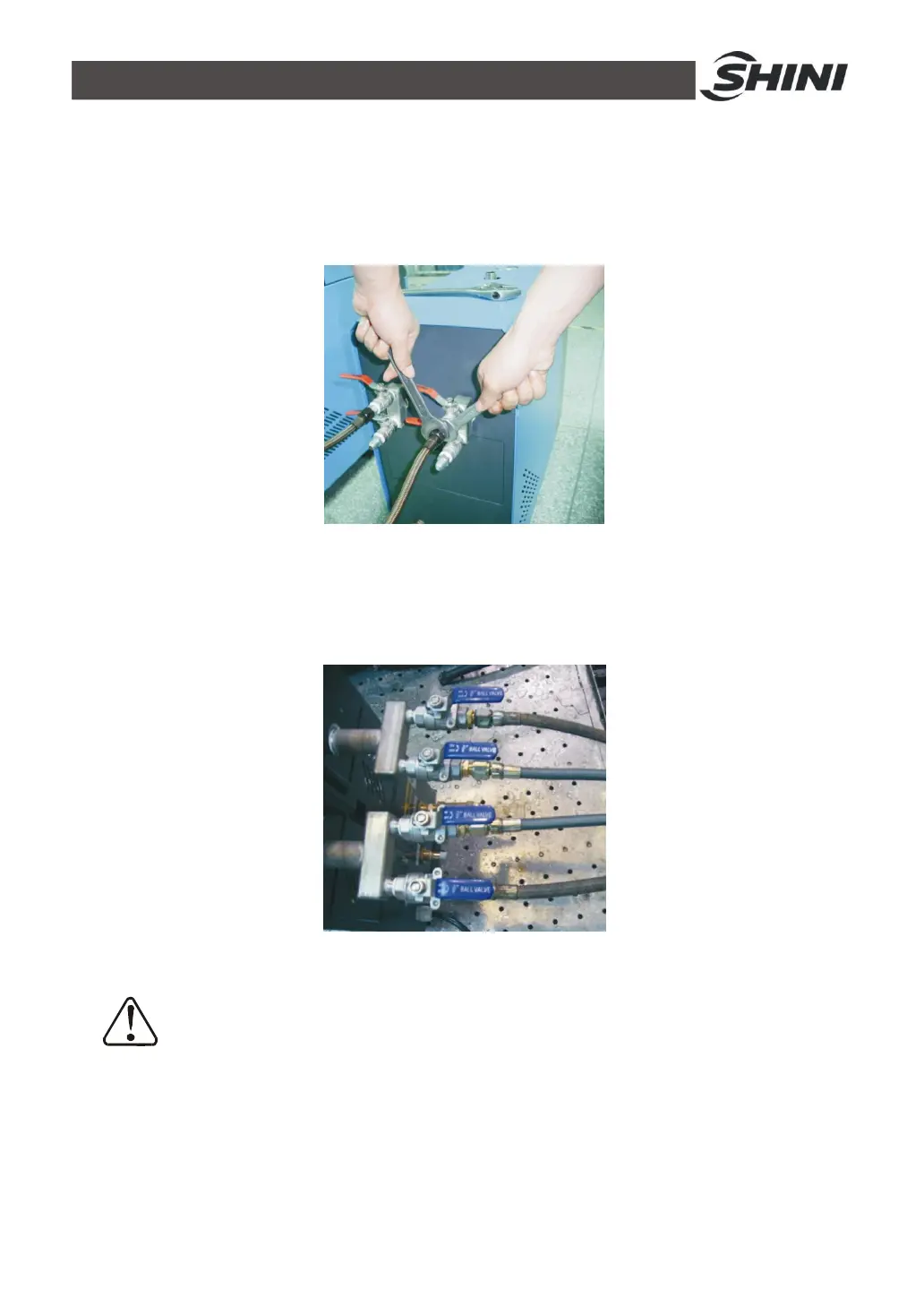

Picture 3-2：Mould and Water Coupling 1
2) Unused mould couplings can be connected with each other by a teflon pipe,
as shown in.
Picture 3-3：Mould and Water Coupling 2
Note!
Cooling water inlet and outlet as shown by the picture 3-4.
