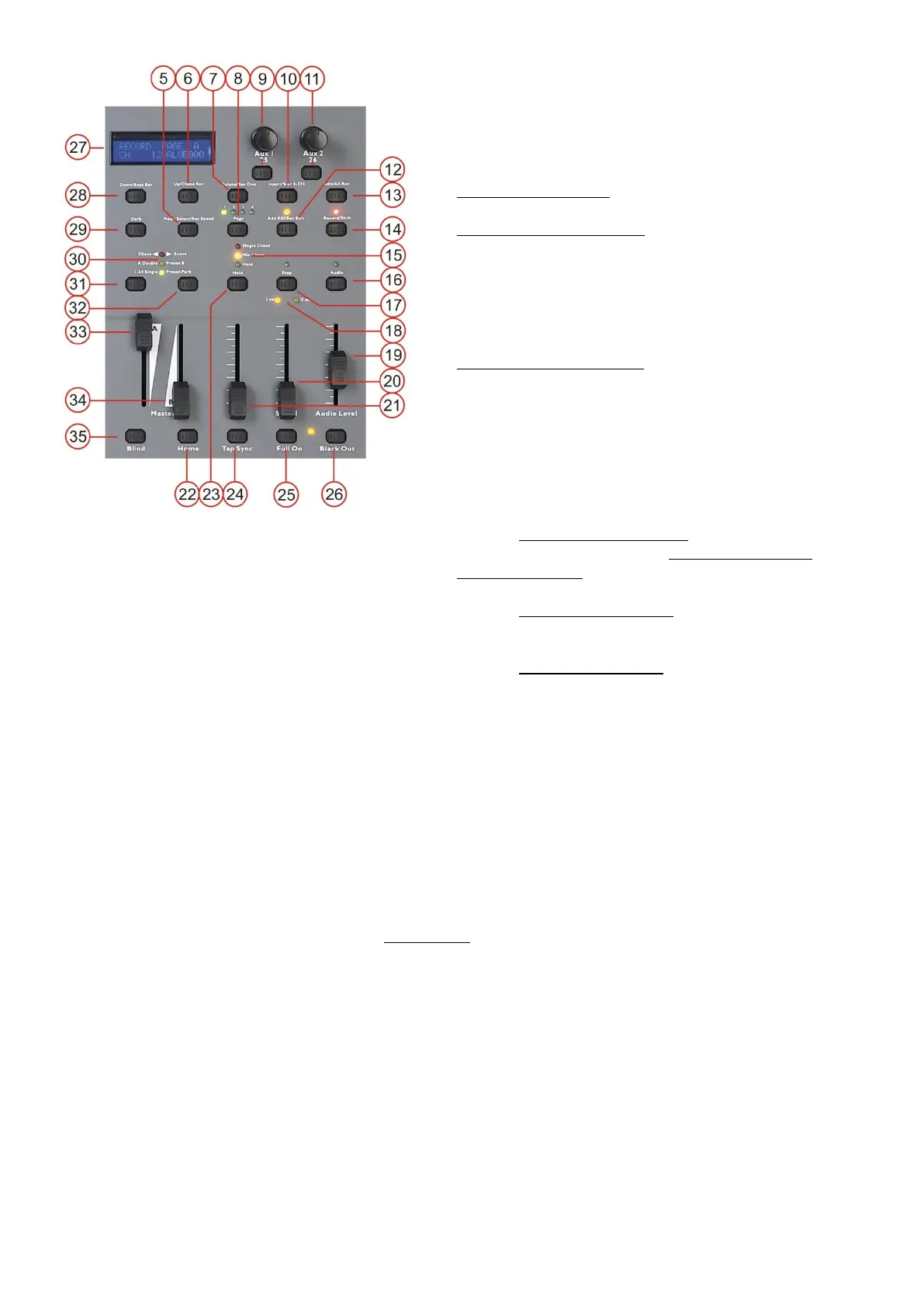

29. Dark button
This button allows you mute all output as long as the
button is pushed.
30. Mode indicator button
The mode indicator indicates if you‟re in:
Chase scene mode: Allows you to
program/playback scenes/chases.
A double preset B mode: In this mode you can use
the channel faders to set up two presets for DMX
channel 1-12. Preset 1: fader #1 - #12, preset 2: fader
#13 - #24.
Switch/ fade between two presets by moving the
master A (33) and master B (34) faders
simultaneously up or down.
Single preset park mode: Allows you to set up scenes.
31. Master A button
Is a flash button for the master A fader. Regardless of
the setting of the Master A fader, pushing this button
has the same effect as sliding the master A fader to it
„s maximum position.
32. Park button
While in chase <> scene mode, this button can be
used for switching between Single chase mode and
mix chase mode. The selected mode is indicated by
the chase mode indicator (16).
While in double preset mode, pushing this button has
the same function as sliding the master B (34) fader
completely up.
While in Single preset mode, this button allows you to
temporally record the current output while adjusting
the master B (34) fader.
33. Master A fader
Is used for adjusting the overall output level. This fader controls overall output of all channels.
34. Master B fader
Is used for adjusting the overall output level. This fader controls the chase of all programs.
35. Blind button
Push and hold the blind button and tapping the corresponding channel‟s flash button will release the
channel‟s fader from the chase currently playing. Use the fader to control the selected channel
independent of the chase. Return from blind mode by pushing and holding the home (22) button while
tapping the fader(s) you released while in blind mode.
