SHOWTEC SC-2412 - Controller Backside Ports

11

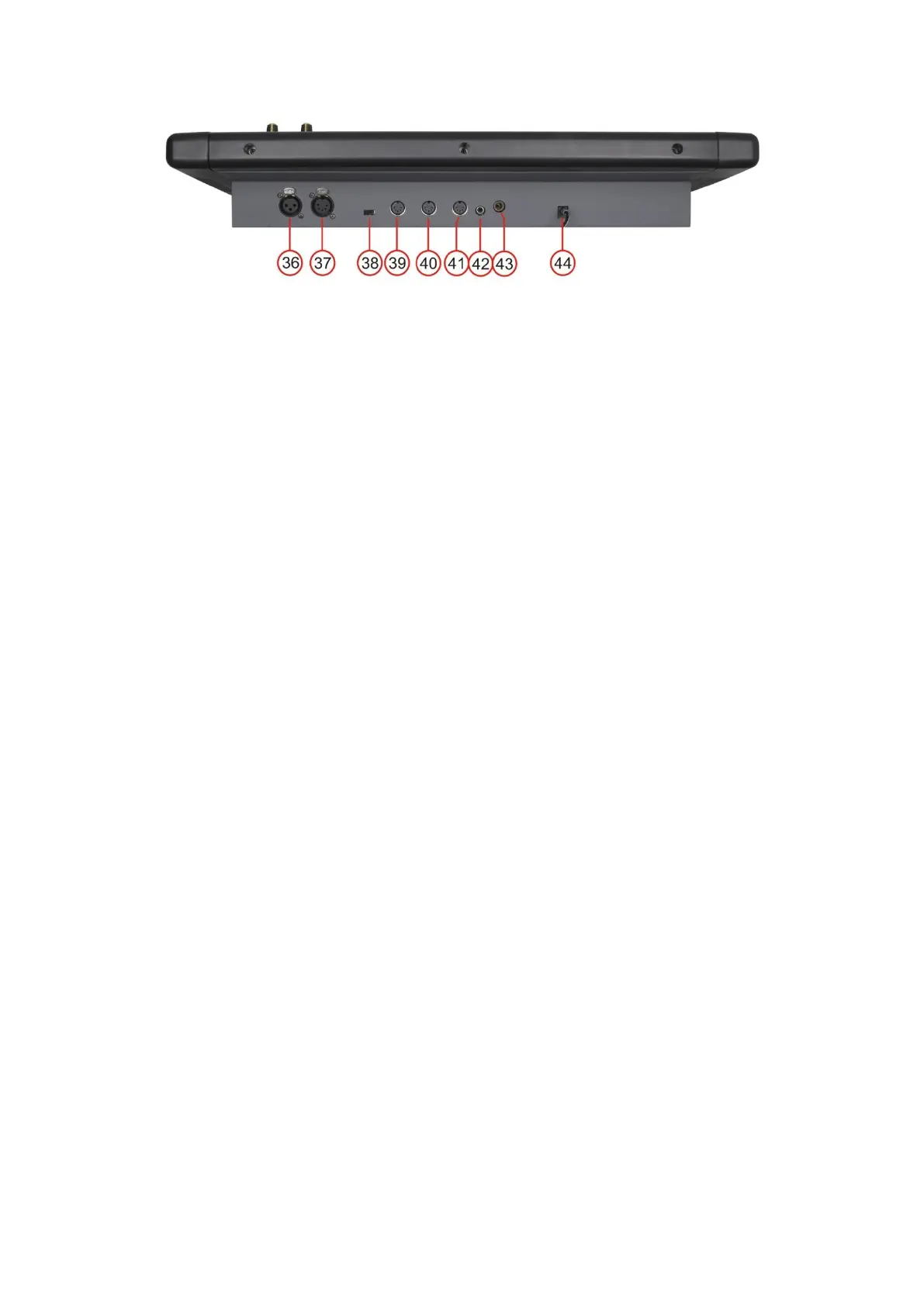

Controller Backside
Fig. 2
36. 3-pin DMX OUT
37. 5-pin DMX OUT
38. Polarity switch
39. Midi thru
40. Midi out
41. Midi in
42. Audio Input
This jack accepts a line level audio input signal ranged from 100 mV to 1Vpp.
43. Remote input
Blackout and full can be controlled by a remote control with a 1/4 “ jack connection.
44. DC input
Connect a 12-18Vdc, 800mA min. adapter.
