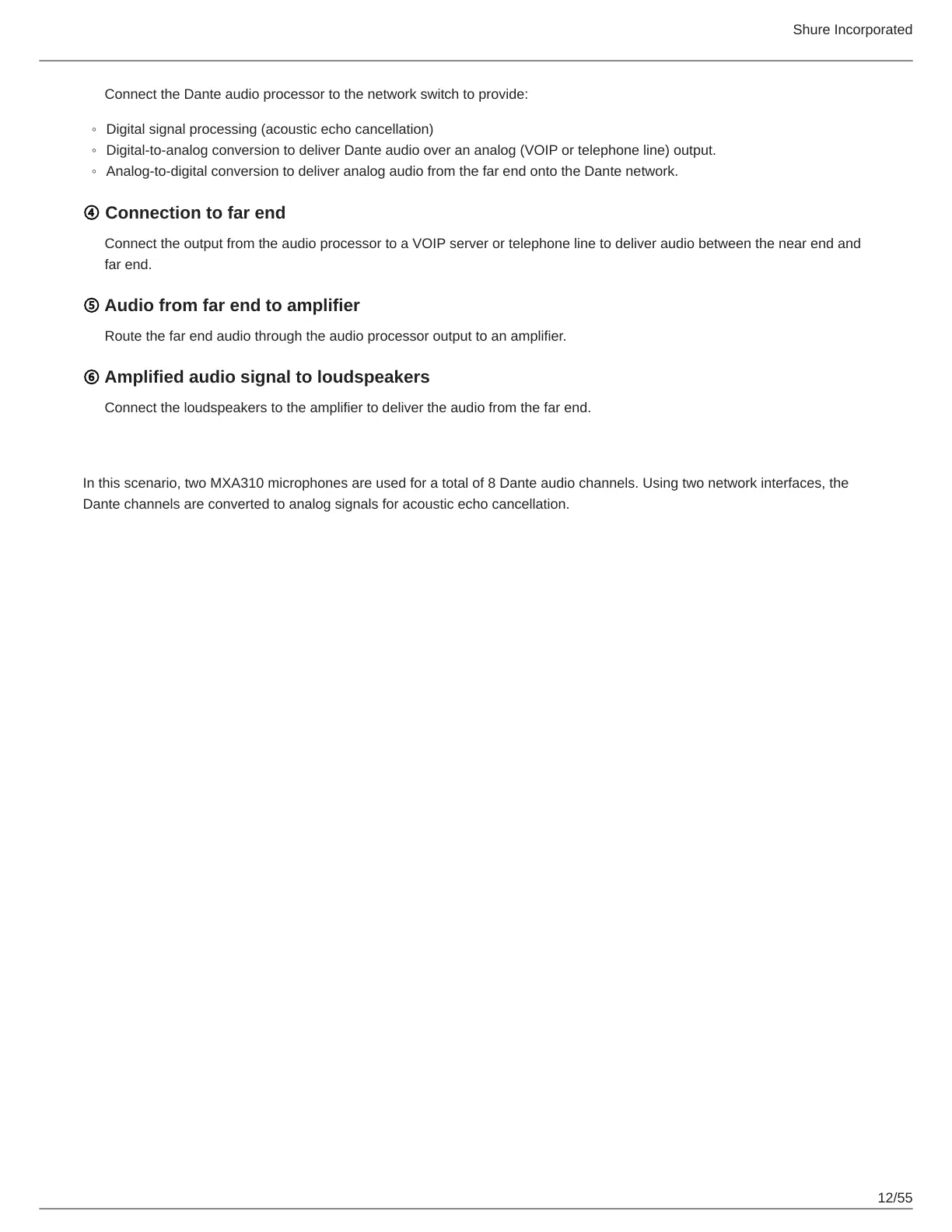

Connect the Dante audio processor to the network switch to provide:
Digital signal processing (acoustic echo cancellation)
Digital-to-analog conversion to deliver Dante audio over an analog (VOIP or telephone line) output.
Analog-to-digital conversion to deliver analog audio from the far end onto the Dante network.
④ Connection to far end
Connect the output from the audio processor to a VOIP server or telephone line to deliver audio between the near end and
far end.
⑤ Audio from far end to amplifier
Route the far end audio through the audio processor output to an amplifier.
⑥ Amplified audio signal to loudspeakers
Connect the loudspeakers to the amplifier to deliver the audio from the far end.
Telephone Conference with Breakout Boxes and Audio Processor
In this scenario, two MXA310 microphones are used for a total of 8 Dante audio channels. Using two network interfaces, the
Dante channels are converted to analog signals for acoustic echo cancellation.
