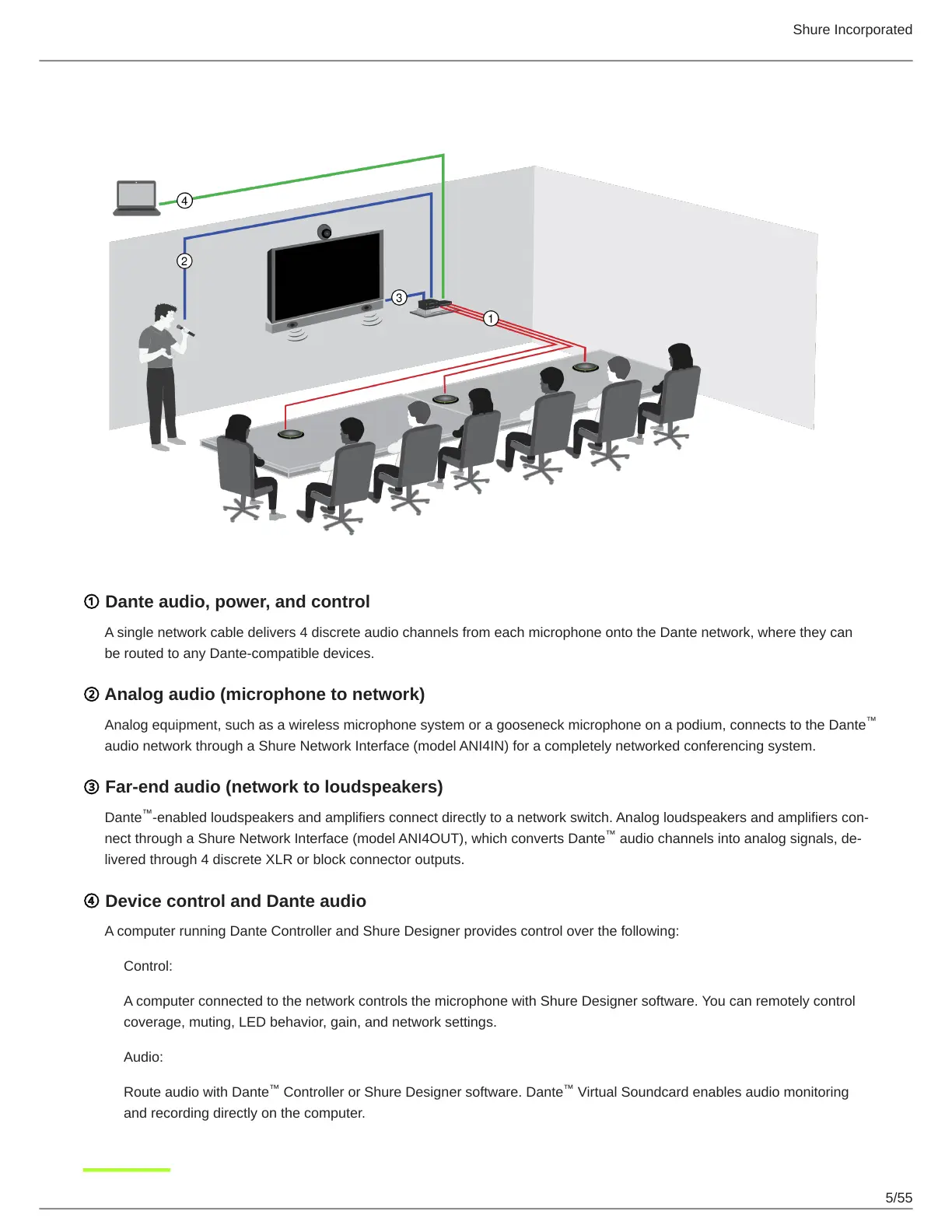

System Overview
① Dante audio, power, and control
A single network cable delivers 4 discrete audio channels from each microphone onto the Dante network, where they can
be routed to any Dante-compatible devices.
② Analog audio (microphone to network)
Analog equipment, such as a wireless microphone system or a gooseneck microphone on a podium, connects to the Dante
audio network through a Shure Network Interface (model ANI4IN) for a completely networked conferencing system.
③ Far-end audio (network to loudspeakers)
Dante -enabled loudspeakers and amplifiers connect directly to a network switch. Analog loudspeakers and amplifiers con-
nect through a Shure Network Interface (model ANI4OUT), which converts Dante audio channels into analog signals, de-
livered through 4 discrete XLR or block connector outputs.
④ Device control and Dante audio
A computer running Dante Controller and Shure Designer provides control over the following:
Control:
A computer connected to the network controls the microphone with Shure Designer software. You can remotely control
coverage, muting, LED behavior, gain, and network settings.
Audio:
Route audio with Dante Controller or Shure Designer software. Dante Virtual Soundcard enables audio monitoring
and recording directly on the computer.
™
™
™
™ ™
To Next Page
