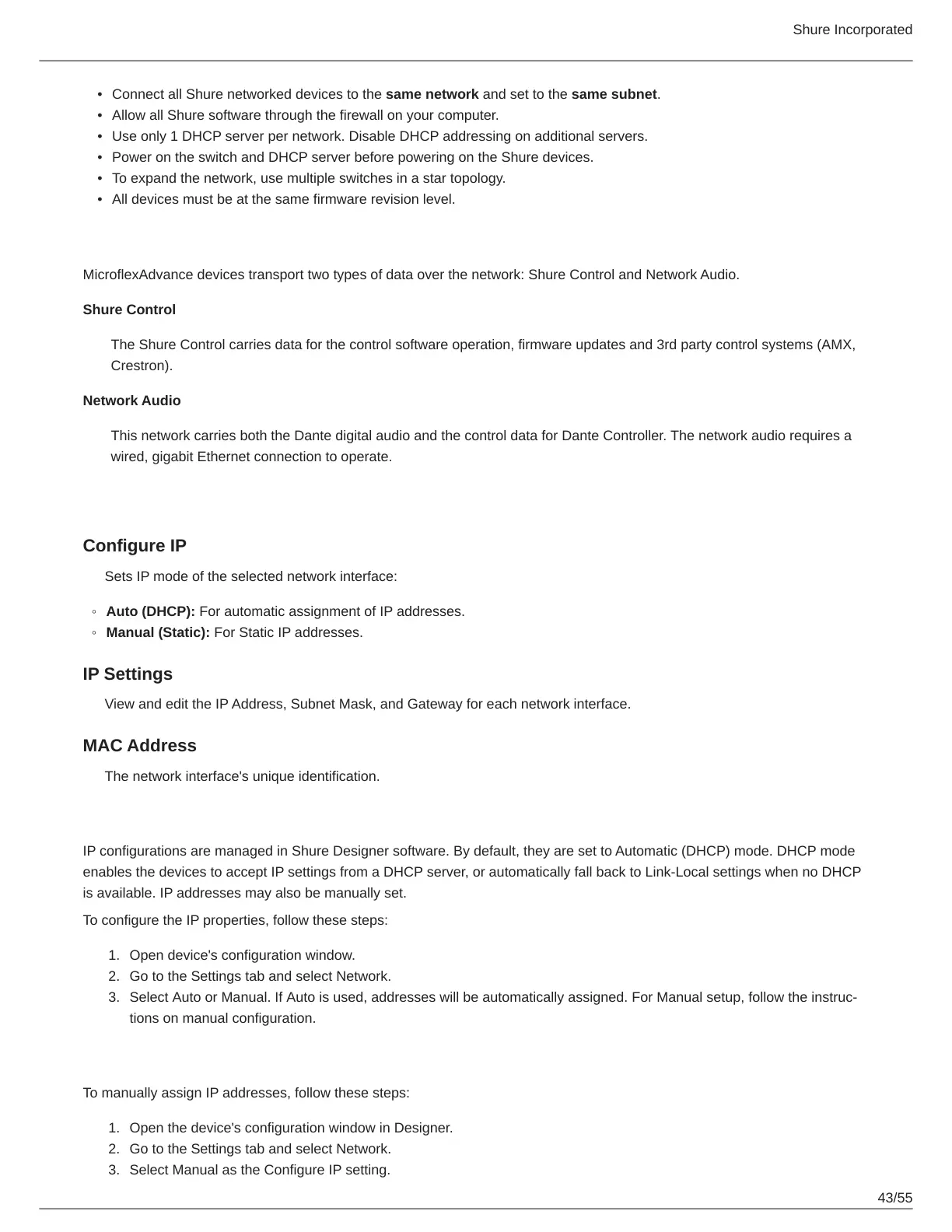

Shure Incorporated
43/55
•
•
•
•
•
•
◦
◦
1.
2.
3.
1.
2.
3.
Connect all Shure networked devices to the same network and set to the same subnet.
Allow all Shure software through the firewall on your computer.
Use only 1 DHCP server per network. Disable DHCP addressing on additional servers.
Power on the switch and DHCP server before powering on the Shure devices.
To expand the network, use multiple switches in a star topology.
All devices must be at the same firmware revision level.
Network Audio and Shure Control Data
MicroflexAdvance devices transport two types of data over the network: Shure Control and Network Audio.
Shure Control
The Shure Control carries data for the control software operation, firmware updates and 3rd party control systems (AMX,
Crestron).
Network Audio
This network carries both the Dante digital audio and the control data for Dante Controller. The network audio requires a
wired, gigabit Ethernet connection to operate.
Device IP Settings
Configure IP
Sets IP mode of the selected network interface:
Auto (DHCP): For automatic assignment of IP addresses.
Manual (Static): For Static IP addresses.
IP Settings
View and edit the IP Address, Subnet Mask, and Gateway for each network interface.
MAC Address
The network interface's unique identification.
Configuring IP Settings
IP configurations are managed in Shure Designer software. By default, they are set to Automatic (DHCP) mode. DHCP mode
enables the devices to accept IP settings from a DHCP server, or automatically fall back to Link-Local settings when no DHCP
is available. IP addresses may also be manually set.
To configure the IP properties, follow these steps:
Open device's configuration window.
Go to the Settings tab and select Network.
Select Auto or Manual. If Auto is used, addresses will be automatically assigned. For Manual setup, follow the instruc-
tions on manual configuration.
Manually Assigning Static IP Address
To manually assign IP addresses, follow these steps:
Open the device's configuration window in Designer.
Go to the Settings tab and select Network.
Select Manual as the Configure IP setting.
