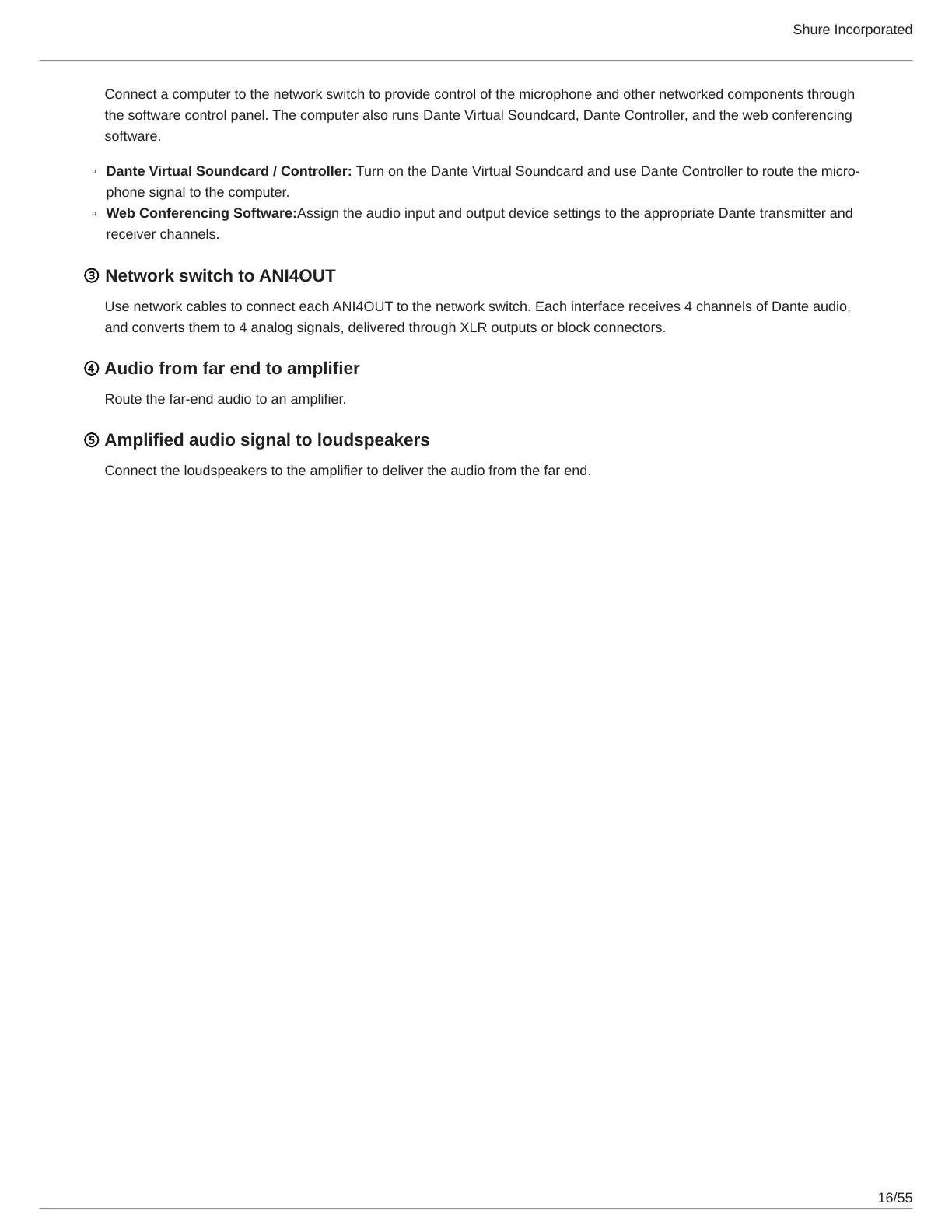

Connect a computer to the network switch to provide control of the microphone and other networked components through
the software control panel. The computer also runs Dante Virtual Soundcard, Dante Controller, and the web conferencing
software.
Dante Virtual Soundcard / Controller: Turn on the Dante Virtual Soundcard and use Dante Controller to route the micro-
phone signal to the computer.
Web Conferencing Software:Assign the audio input and output device settings to the appropriate Dante transmitter and
receiver channels.
③ Network switch to ANI4OUT
Use network cables to connect each ANI4OUT to the network switch. Each interface receives 4 channels of Dante audio,
and converts them to 4 analog signals, delivered through XLR outputs or block connectors.
④ Audio from far end to amplifier
Route the far-end audio to an amplifier.
⑤ Amplified audio signal to loudspeakers
Connect the loudspeakers to the amplifier to deliver the audio from the far end.
