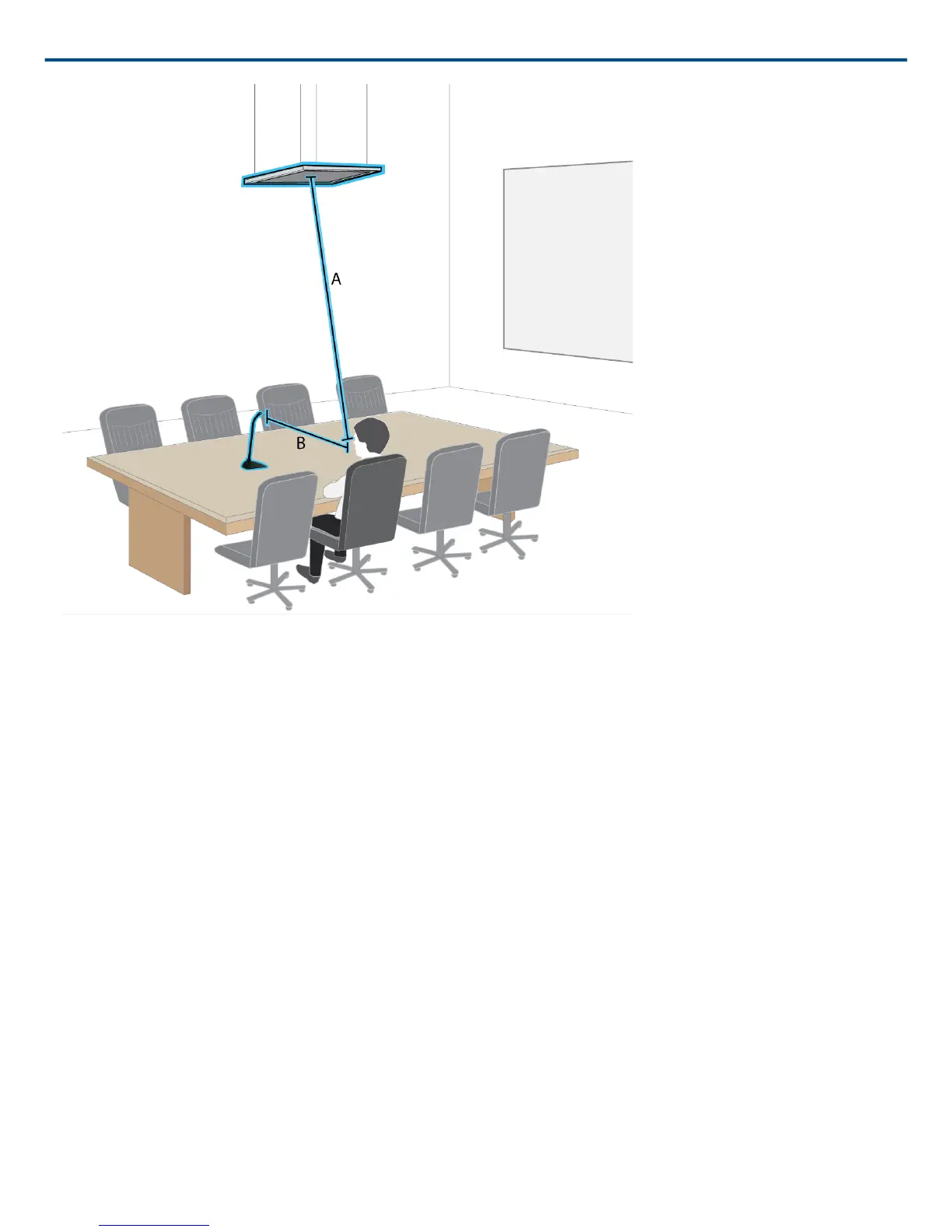

In this example, the acoustic performance of the array microphone mounted (A) feet from the talker matches the
cardioid gooseneck microphone placed at a distance of (B) feet from the talker.
FyreWrap Fire Protective Wrap System Installation
The FyreWrap fire protective wrap system included with the MicroflexAdvance MXA910 ceiling array microphone
must be installed to meet the UL 2043 plenum rating (suitable for air handling spaces).
Installation
1. Make sure the microphone surface is clean to ensure proper adhesion
2. Remove the paper backing from the 4 adhesive pads on the fire wrap system
3. Align the fire wrap system over the microphone and secure it by applying gentle pressure over the adhesive
pads
Note: make sure to leave enough space to install the Ethernet cable and safety tether (if required).
®
