System Planning and Gear Requirements
Setting up the Audio Network
Shure networked conferencing systems are comprised of Microflex Advance microphones and network interfaces,
which operate entirely on a Dante network. Additional hardware, including network switches, computers, loud
speakers, and audio processors are described in the hardware component index.
Shure components shown in this diagram:
Microflex Advance Microphones
The MXA910 and MXA310 are equipped with Dante outputs, and connect directly to a network switch.
Audio Network Interfaces
The interfaces are used to connect analog devices such as loudspeakers and analog microphones to the network.
ANI4IN: Converts 4 analog signals (separate XLR and block connector models available) into Dante digital audio
signals.
ANI4OUT: Converts 4 channels of Dante audio from the network into analog signals.

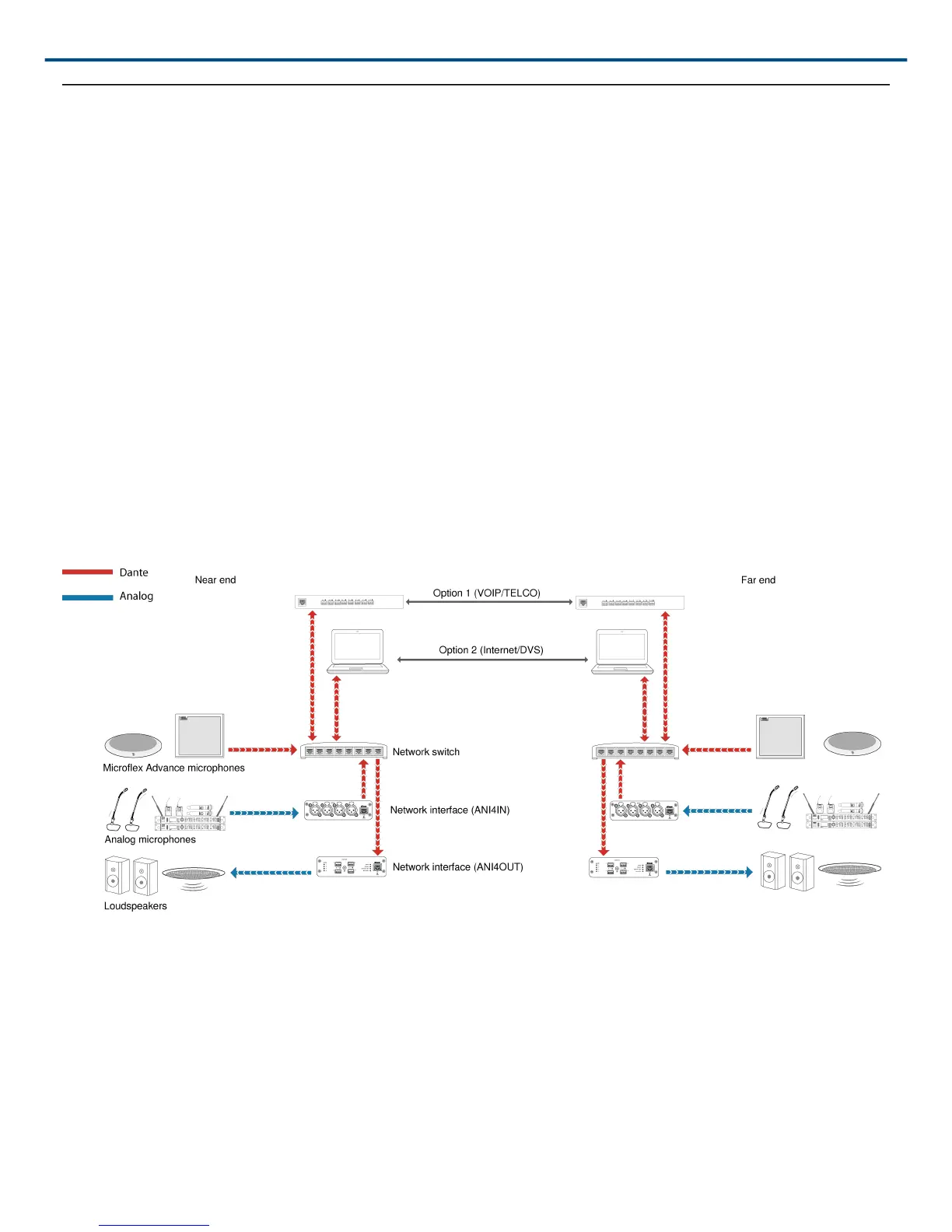

This diagram shows the entire signal path through a networked conference system. Signals from the near end and
far end are exchanged through an audio processor connected to a phone system, or through a computer connect
ed to the internet. Analog microphones connect to the network through the Shure ANI4IN, while loudspeakers con
nect through the Shure ANI4OUT.
