Suspension Mounting

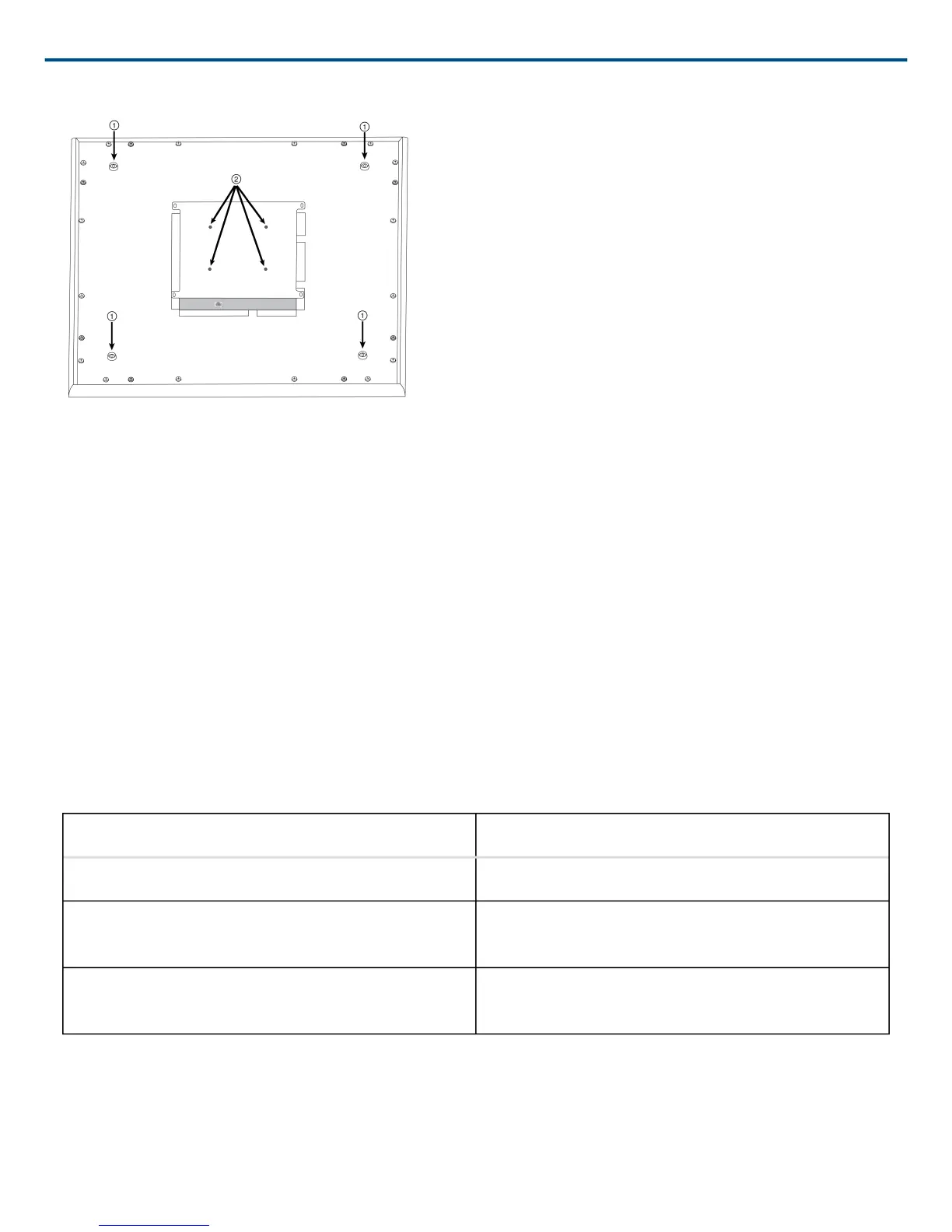

① Wire Suspension Hanging Points (4 mm hole size)
② VESA Mounting Holes
4-Point Wire Suspension
Secure the microphone to the ceiling using braided metal cable or other high-strength wire. Use the 4 integrated
hanging points on the back of the microphone to securely attach the cable. The hole size in the hanging points is 4
mm (0.15 in).
VESA Standardized Mounting
The rear plate on the microphone has 4 threaded holes for attaching the microphone to a VESA mounting device.
The mounting holes follow the VESA MIS-D standard:
• Screw specification: M4 thread (Microphone threaded hole depth = 9.15 mm)
• Hole spacing: 100 mm (square)
Cable Management
To keep the Ethernet cable out of view, use the appropriate method based on the installation type.
Installation Cable Solution
Ceiling tile Run the cable above the ceiling grid
VESA (pole mounting) Guide the cable through the pole to run it above the
ceiling grid
4-point wire suspension Use cable ties to attach the CAT5 cable along one of
the hanging wires
Note: If using conduit to contain the cable, the optional junction box accessory (model A910-JB) mounts directly to
the rear panel of the microphone.
