Using the Adapter (625 mm Tile Size)
For ceiling grids which measure 625 x 625 mm, attach the adapter to the array microphone and then follow the
ceiling tile mounting instructions.
Note: Only for use with the 60 x 60 cm model.

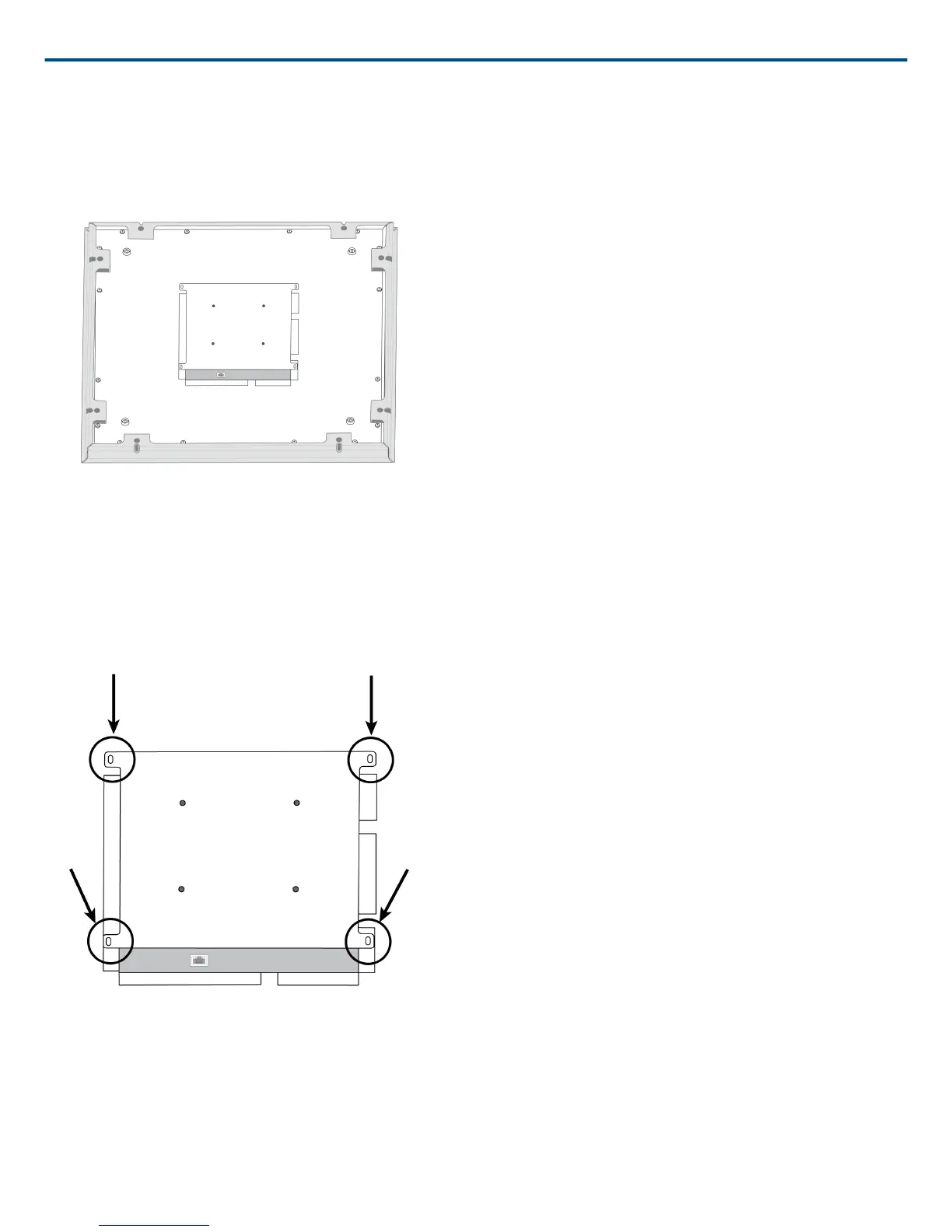

Screw the adapter pieces on as shown, using 2 screws per side.
Other Ceiling Tile Sizes
Mounting the microphone in a grid of a different size requires using a suspension mount option or modifying the
ceiling grid.
Safety Tether
Attach a safety tether between the building structure and one of the tieoff points on the back panel of the micro
phone. This safety measure prevents the microphone from falling in an emergency situation. Make sure there is no
tension on the safety tether to ensure the microphone is resting properly in the ceiling grid.
Important: Follow local regulations when attaching the safety tether.
