Shure MXA910 - Page 32

Shure Incorporated
32/87

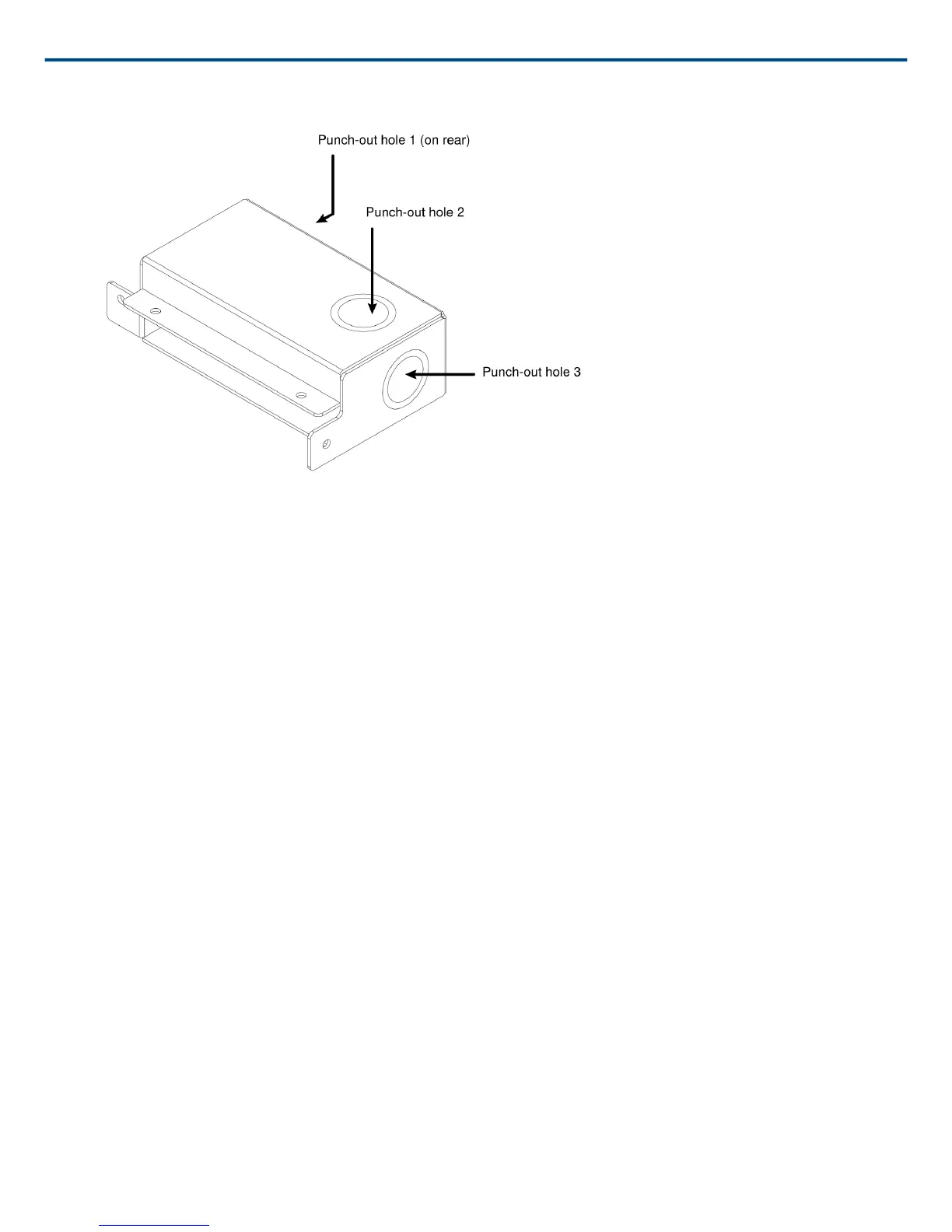

Important: Punch out the necessary holes in the junction box prior to installing it onto the microphone.
To install:
1. Remove the 4 screws from the microphone as shown.
2. Align the junction box with the screw holes. If possible, plug the network cable into the microphone before se
curing the junction box.
