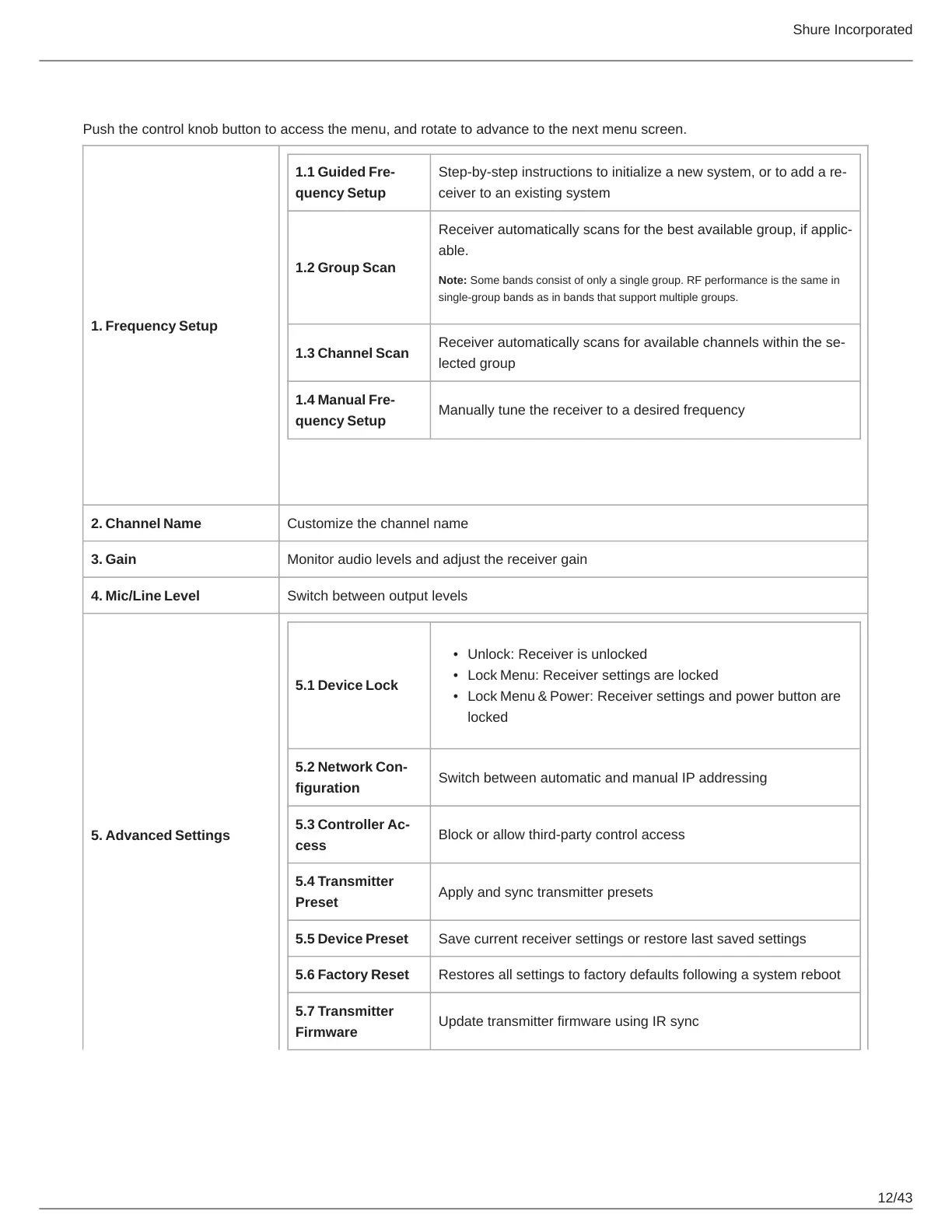

Main Menu
Push the control knob button to access the menu, and rotate to advance to the next menu screen.
1. Frequency Setup
1.1 Guided Fre-
quency Setup
Stepbystepinstructionstoinitializeanewsystem,ortoaddare
ceiver to an existing system
1.2 Group Scan
Receiverautomaticallyscansforthebestavailablegroup,ifapplic
able.
Note: Some bands consist of only a single group. RF performance is the same in
single-group bands as in bands that support multiple groups.
1.3 Channel Scan
Receiverautomaticallyscansforavailablechannelswithinthese
lected group
1.4 Manual Fre-
quency Setup
Manually tune the receiver to a desired frequency
2. Channel Name Customize the channel name
3. Gain Monitor audio levels and adjust the receiver gain
4. Mic/Line Level Switch between output levels
5. Advanced Settings
5.1 Device Lock
Unlock: Receiver is unlocked
Lock Menu: Receiver settings are locked
Lock Menu & Power: Receiver settings and power button are
locked
5.2 Network Con-
figuration
Switch between automatic and manual IP addressing
5.3 Controller Ac-
cess
Block or allow third-party control access
5.4 Transmitter
Preset
Apply and sync transmitter presets
5.5 Device Preset Save current receiver settings or restore last saved settings
5.6 Factory Reset Restores all settings to factory defaults following a system reboot
5.7 Transmitter
Firmware
Update transmitter firmware using IR sync

Shure SLX D Series Specifications

General

Encryption	256-bit AES
Latency	3.2 ms
RF Sensitivity	-97 dBm at 10-5 BER
System Type	Digital Wireless
Operating Range	Up to 100 m (300 ft) line of sight
Audio Frequency Response	20 Hz – 20 kHz
Number of Channels	Up to 32 per band
Audio Output Connectors	XLR, 1/4"
Networking	Ethernet
RF Output Power	10 mW (region dependent)
Power Requirements	2 AA batteries or SB903 rechargeable battery
Battery Life	Up to 10 hours (with standard AA batteries)
Dimensions	Varies by model
Weight	Varies by model
Frequency Range	470-952 MHz (region dependent)
Dynamic Range	120 dB, A-weighted
Signal-to-Noise Ratio	120 dB, A-weighted
