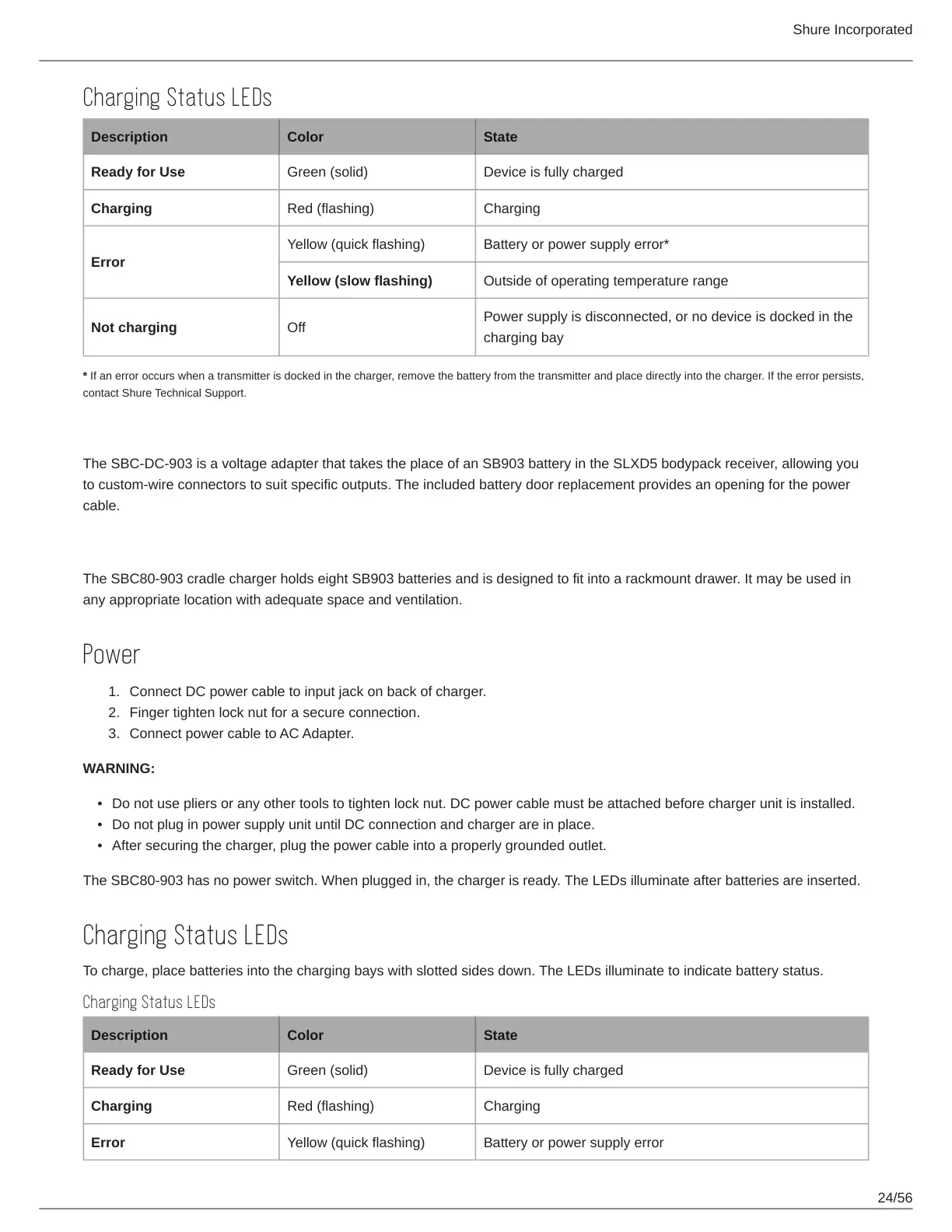

Shure Incorporated
24/56
1.
2.
3.
•
•
•
Charging Status LEDs
Description Color State
Ready for Use Green (solid) Device is fully charged
Charging Red (flashing) Charging
Error
Yellow (quick flashing) Battery or power supply error*
Yellow (slow flashing) Outside of operating temperature range
Not charging Off
Power supply is disconnected, or no device is docked in the
charging bay
* If an error occurs when a transmitter is docked in the charger, remove the battery from the transmitter and place directly into the charger. If the error persists,
contact Shure Technical Support.
SBC-DC-903 DC Adapter Battery Eliminator for SLXD5
The SBC-DC-903 is a voltage adapter that takes the place of an SB903 battery in the SLXD5 bodypack receiver, allowing you
to custom-wire connectors to suit specific outputs. The included battery door replacement provides an opening for the power
cable.
SBC80-903 Battery Charger
The SBC80-903 cradle charger holds eight SB903 batteries and is designed to fit into a rackmount drawer. It may be used in
any appropriate location with adequate space and ventilation.
Power
Connect DC power cable to input jack on back of charger.
Finger tighten lock nut for a secure connection.
Connect power cable to AC Adapter.
WARNING:
Do not use pliers or any other tools to tighten lock nut. DC power cable must be attached before charger unit is installed.
Do not plug in power supply unit until DC connection and charger are in place.
After securing the charger, plug the power cable into a properly grounded outlet.
The SBC80-903 has no power switch. When plugged in, the charger is ready. The LEDs illuminate after batteries are inserted.
Charging Status LEDs
To charge, place batteries into the charging bays with slotted sides down. The LEDs illuminate to indicate battery status.
Charging Status LEDs
Description Color State
Ready for Use Green (solid) Device is fully charged
Charging Red (flashing) Charging
Error Yellow (quick flashing) Battery or power supply error
