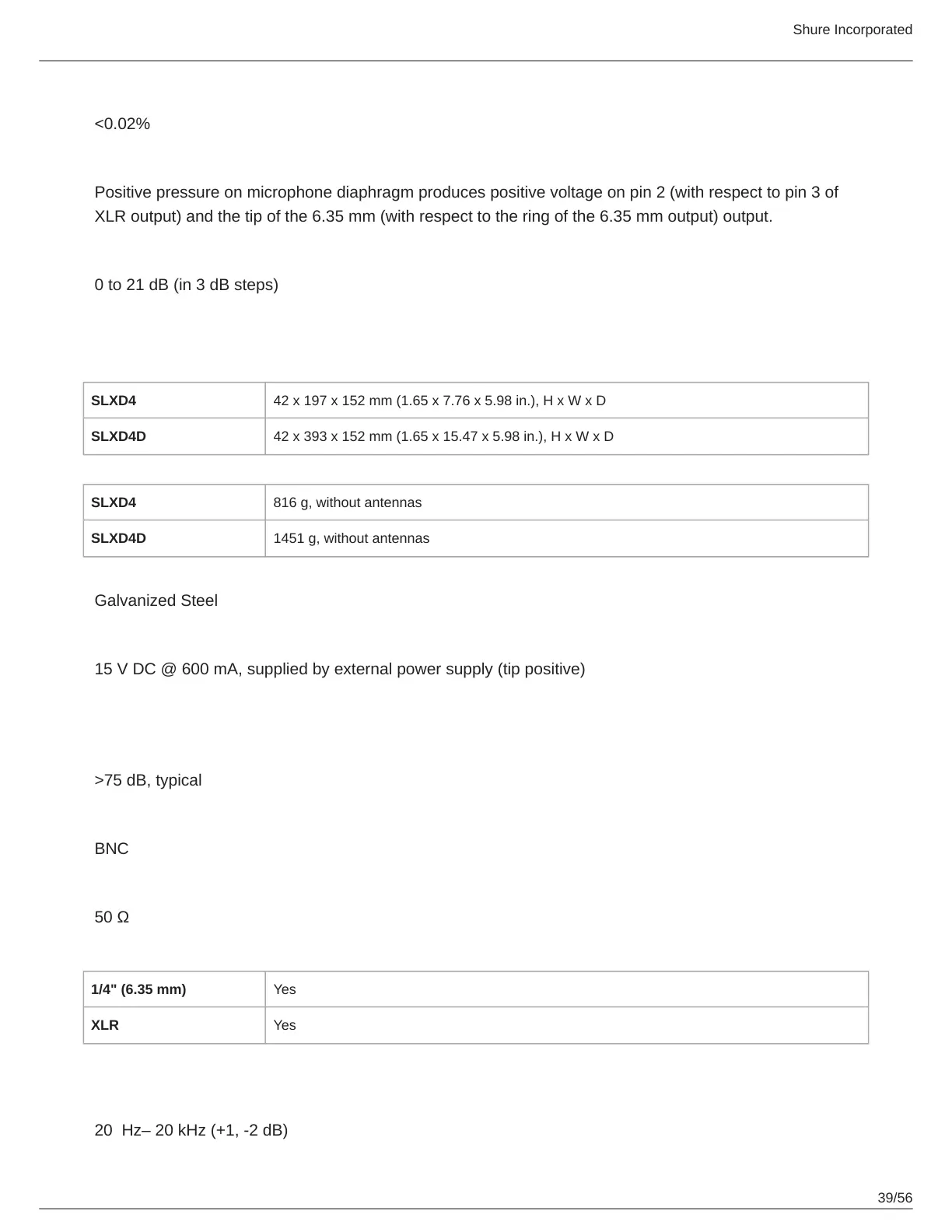

Total Harmonic Distortion
<0.02%
System Audio Polarity
Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of
XLR output) and the tip of the 6.35 mm (with respect to the ring of the 6.35 mm output) output.
Mic Offset Range
0 to 21 dB (in 3 dB steps)
SLXD4 / SLXD4D Rack Receiver
Dimensions
SLXD4 42 x 197 x 152 mm (1.65 x 7.76 x 5.98 in.), H x W x D
SLXD4D 42 x 393 x 152 mm (1.65 x 15.47 x 5.98 in.), H x W x D
Weight
SLXD4 816 g, without antennas
SLXD4D 1451 g, without antennas
Housing
Galvanized Steel
Power Requirements
15 V DC @ 600 mA, supplied by external power supply (tip positive)
RF Input
Spurious Rejection
>75 dB, typical
Connector Type
BNC
Impedance
50 Ω
Phantom Power Protection
1/4" (6.35 mm) Yes
XLR Yes
Audio Output
Audio Frequency Response
20 Hz– 20 kHz (+1, 2 dB)
