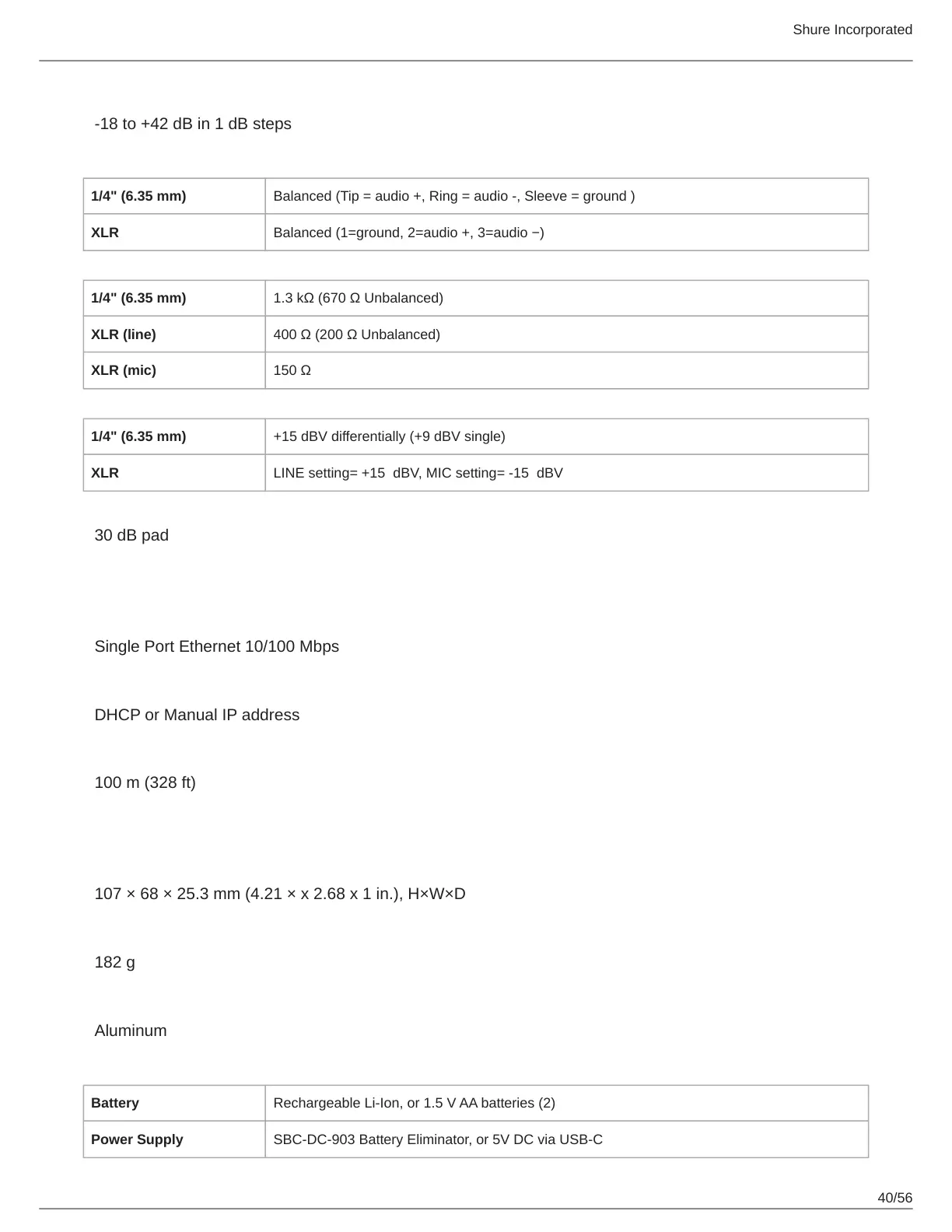

Shure SLX-D - Page 40

Shure Incorporated
40/56
Gain Adjustment Range
18 to +42 dB in 1 dB steps
Configuration
1/4" (6.35 mm) Balanced (Tip = audio +, Ring = audio -, Sleeve = ground )
XLR Balanced (1=ground, 2=audio +, 3=audio −)
Impedance
1/4" (6.35 mm) 1.3 kΩ (670 Ω Unbalanced)
XLR (line) 400 Ω (200 Ω Unbalanced)
XLR (mic) 150 Ω
Full Scale Output
1/4" (6.35 mm) +15 dBV differentially (+9 dBV single)
XLR LINE setting= +15 dBV, MIC setting= 15 dBV
Mic/Line Switch
30 dB pad
Networking
Network Interface
Single Port Ethernet 10/100 Mbps
Network Addressing Capability
DHCP or Manual IP address
Maximum Cable Length
100 m (328 ft)
SLXD5 Bodypack Receiver
Dimensions
107 × 68 × 25.3 mm (4.21 × x 2.68 x 1 in.), H×W×D
Weight
182 g
Housing
Aluminum
Power Requirements
Battery Rechargeable LiIon, or 1.5 V AA batteries (2)
Power Supply SBC-DC-903 Battery Eliminator, or 5V DC via USB-C
