Shure SB900 battery: runtime is displayed in minutes remaining.
AA batteries: runtime is displayed with a 5-bar indicator.
⑥ TV Channel
Displays the TV channel that contains the tuned frequency.
⑦ High Density Mode Icon
Displayed when High Density mode is enabled.
Transmitter Status
The following text or icons report transmitter status to the receiver screen:
Display Icon Transmitter Status
Bodypack input is attenuated 12 dB
Offset gain is added to the transmitter
Lo 1 mW RF power level
Nm 10 mW RF power level
Hi 20 mW RF power level
M Menu is locked
P Power is locked
TxMuted Displayed when the transmitter audio is set to off using the MUTE MODE feature
-No Tx- No RF connection between a receiver and transmitter or transmitter OFF

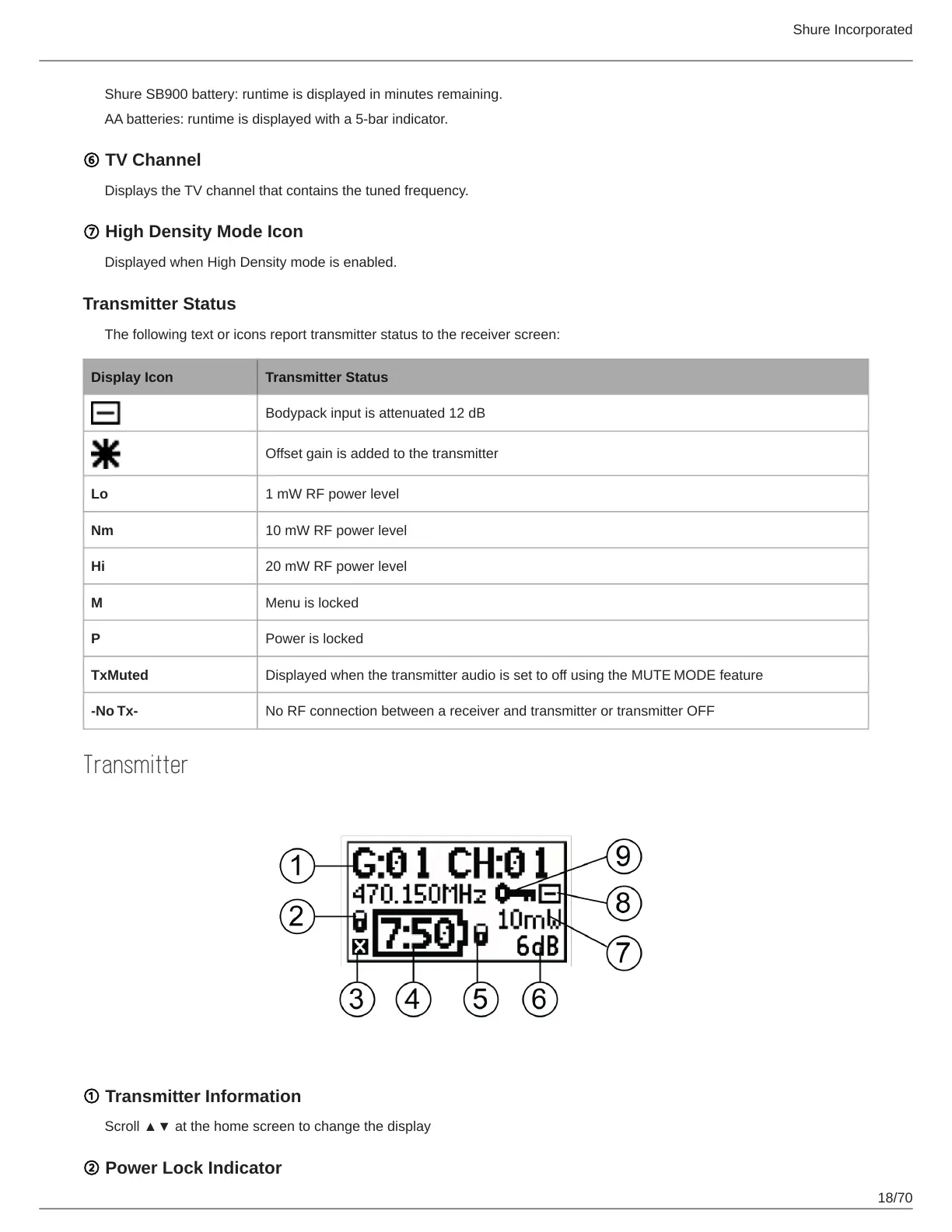

Transmitter
① Transmitter Information
Scroll ▲▼ at the home screen to change the display
② Power Lock Indicator
