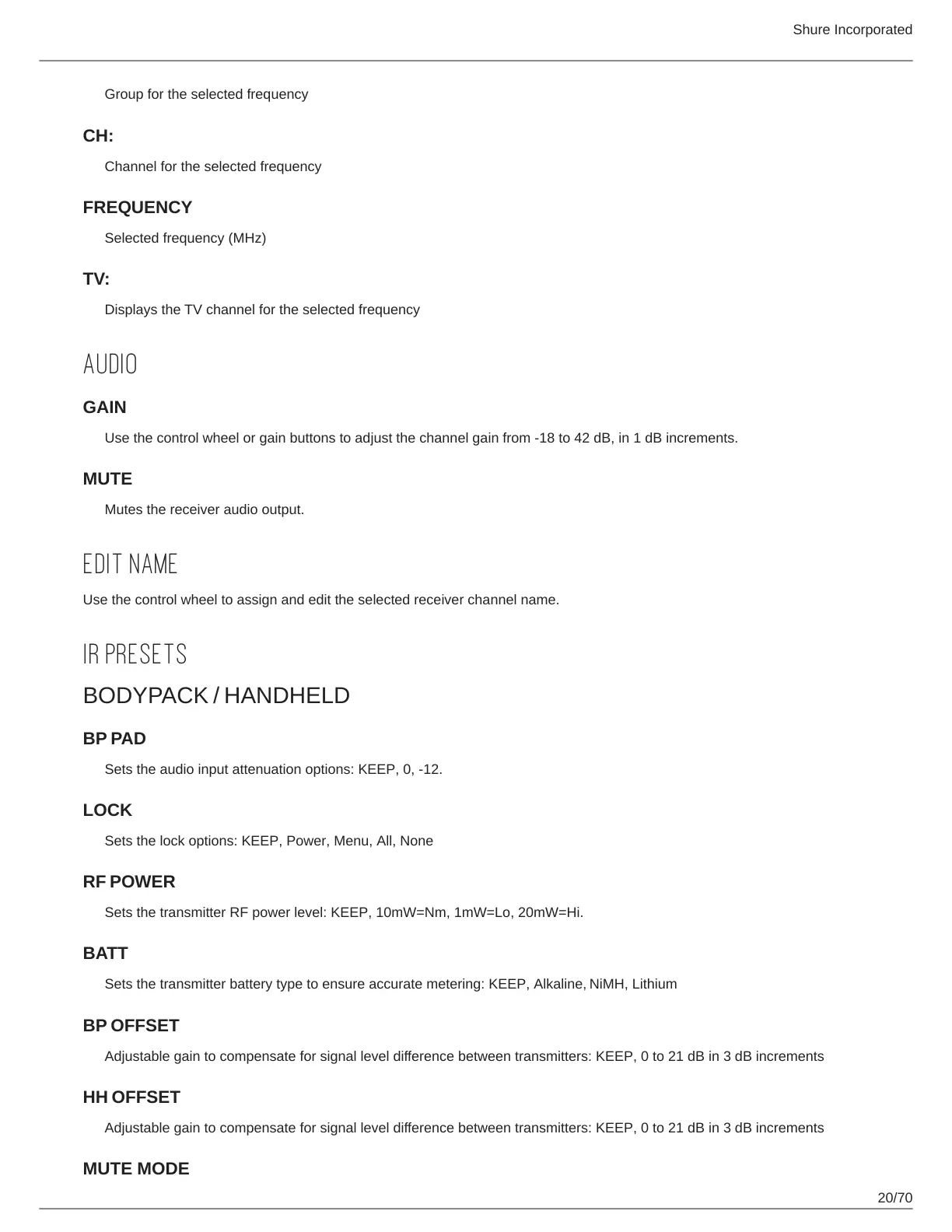

Group for the selected frequency
CH:
Channel for the selected frequency
FREQUENCY
Selected frequency (MHz)
TV:
Displays the TV channel for the selected frequency
AUDIO
GAIN
Use the control wheel or gain buttons to adjust the channel gain from -18 to 42 dB, in 1 dB increments.
MUTE
Mutes the receiver audio output.
EDIT NAME
Use the control wheel to assign and edit the selected receiver channel name.
IR PRESETS
BODYPACK / HANDHELD
BP PAD
Sets the audio input attenuation options: KEEP, 0, -12.
LOCK
Sets the lock options: KEEP, Power, Menu, All, None
RF POWER
Sets the transmitter RF power level: KEEP, 10mW=Nm, 1mW=Lo, 20mW=Hi.
BATT
Sets the transmitter battery type to ensure accurate metering: KEEP, Alkaline, NiMH, Lithium
BP OFFSET
Adjustable gain to compensate for signal level difference between transmitters: KEEP, 0 to 21 dB in 3 dB increments
HH OFFSET
Adjustable gain to compensate for signal level difference between transmitters: KEEP, 0 to 21 dB in 3 dB increments
MUTE MODE
