Redundant Audio Mode
Use Redundant mode to carry a backup copy of the Dante audio on the Secondary network in case the audio on the primary
network is interrupted.
Network Characteristics:
Dante Primary Audio and Shure Control are present on the Primary port
Backup Dante audio is present on the Secondary port
The Primary Dante IP address and the Shure Control IP address must be on the same subnet. The computer running
WWB6 must also be on this subnet.
The Secondary Dante IP Address must be set to a different subnet
Note: Devices connected to the Redundant network must be compatible with Redundant audio.

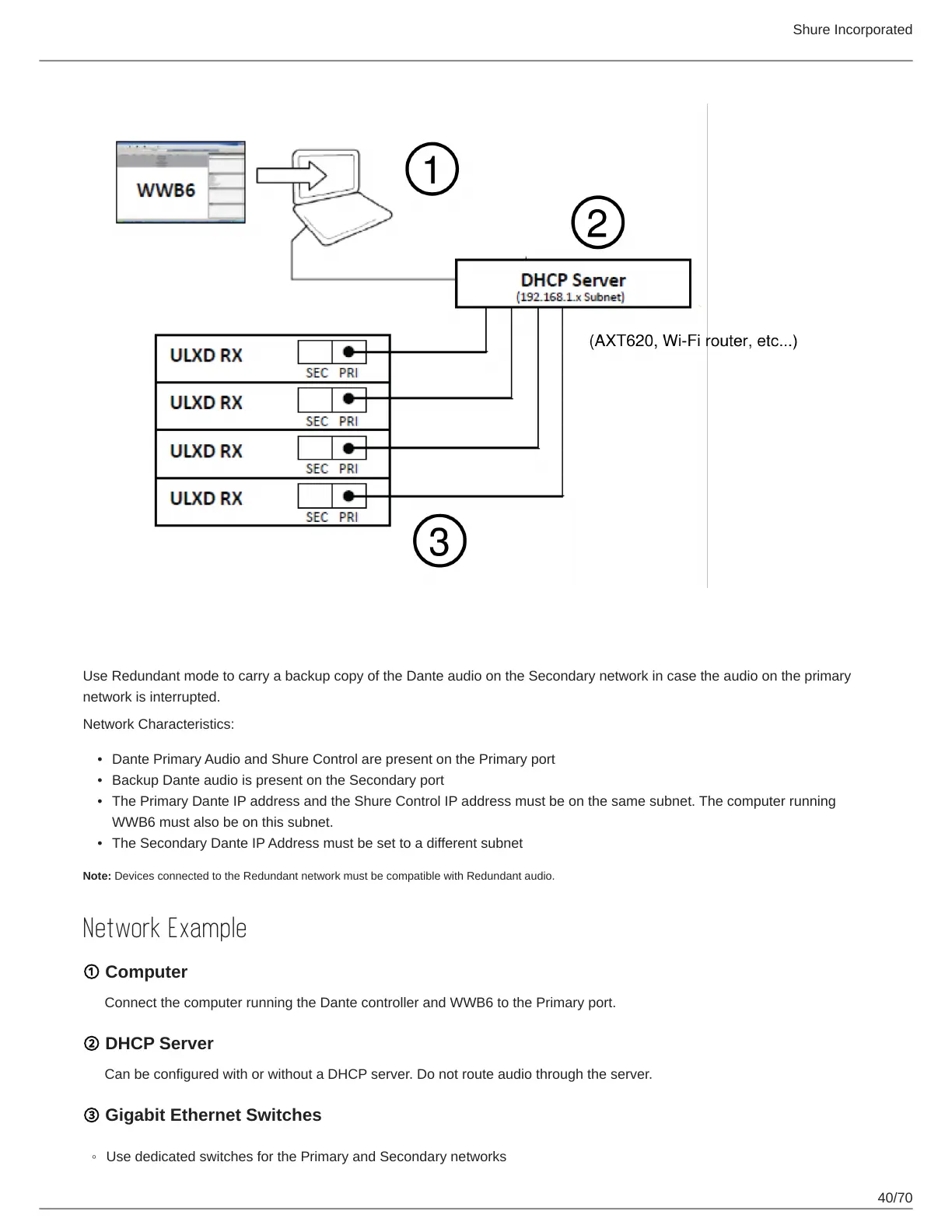

Network Example
① Computer
Connect the computer running the Dante controller and WWB6 to the Primary port.
② DHCP Server
Can be configured with or without a DHCP server. Do not route audio through the server.
③ Gigabit Ethernet Switches
Use dedicated switches for the Primary and Secondary networks
