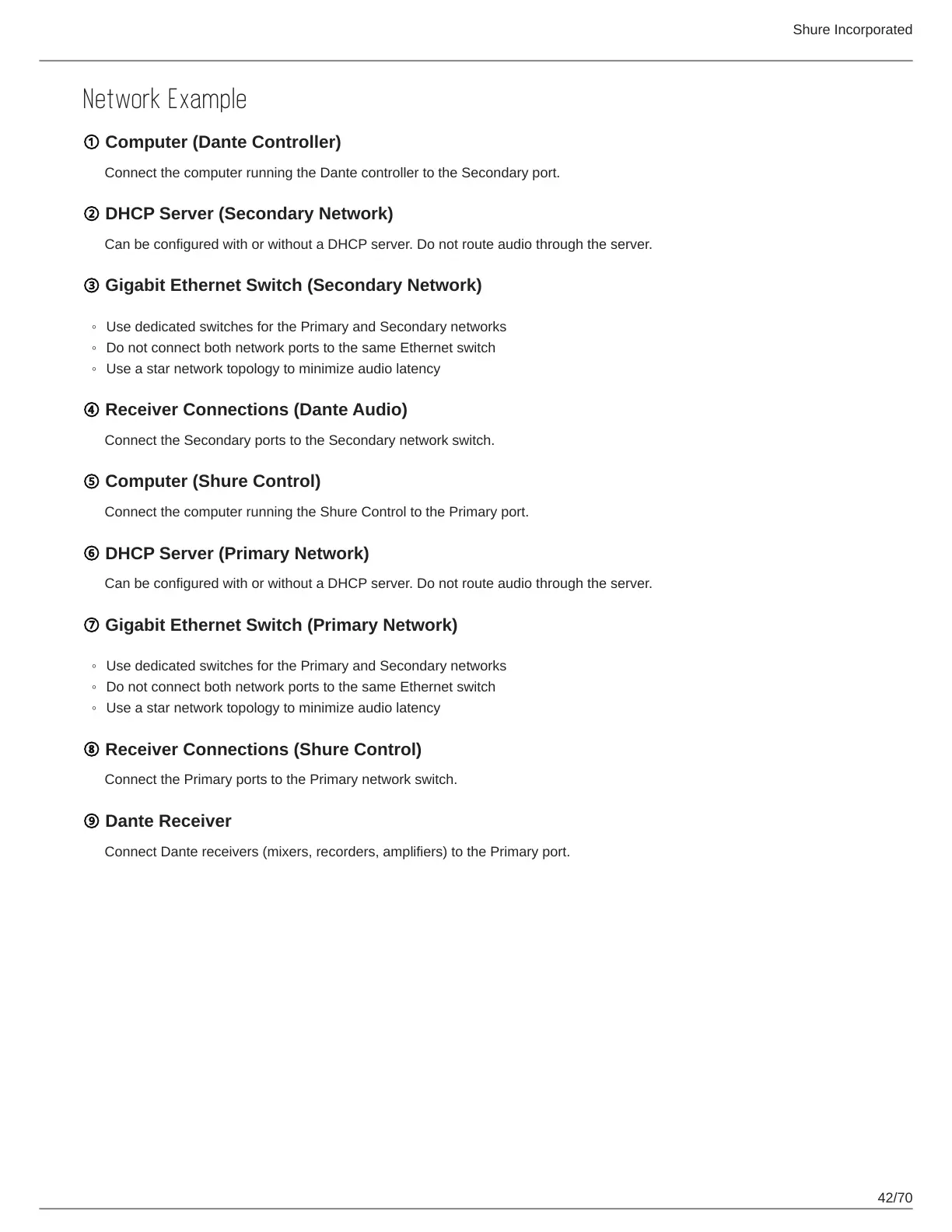

Network Example
① Computer (Dante Controller)
Connect the computer running the Dante controller to the Secondary port.
② DHCP Server (Secondary Network)
Can be configured with or without a DHCP server. Do not route audio through the server.
③ Gigabit Ethernet Switch (Secondary Network)
Use dedicated switches for the Primary and Secondary networks
Do not connect both network ports to the same Ethernet switch
Use a star network topology to minimize audio latency
④ Receiver Connections (Dante Audio)
Connect the Secondary ports to the Secondary network switch.
⑤ Computer (Shure Control)
Connect the computer running the Shure Control to the Primary port.
⑥ DHCP Server (Primary Network)
Can be configured with or without a DHCP server. Do not route audio through the server.
⑦ Gigabit Ethernet Switch (Primary Network)
Use dedicated switches for the Primary and Secondary networks
Do not connect both network ports to the same Ethernet switch
Use a star network topology to minimize audio latency
⑧ Receiver Connections (Shure Control)
Connect the Primary ports to the Primary network switch.
⑨ Dante Receiver
Connect Dante receivers (mixers, recorders, amplifiers) to the Primary port.
