2.3 Connecting the piston burette – Combination with Accessories and Additional
Devices

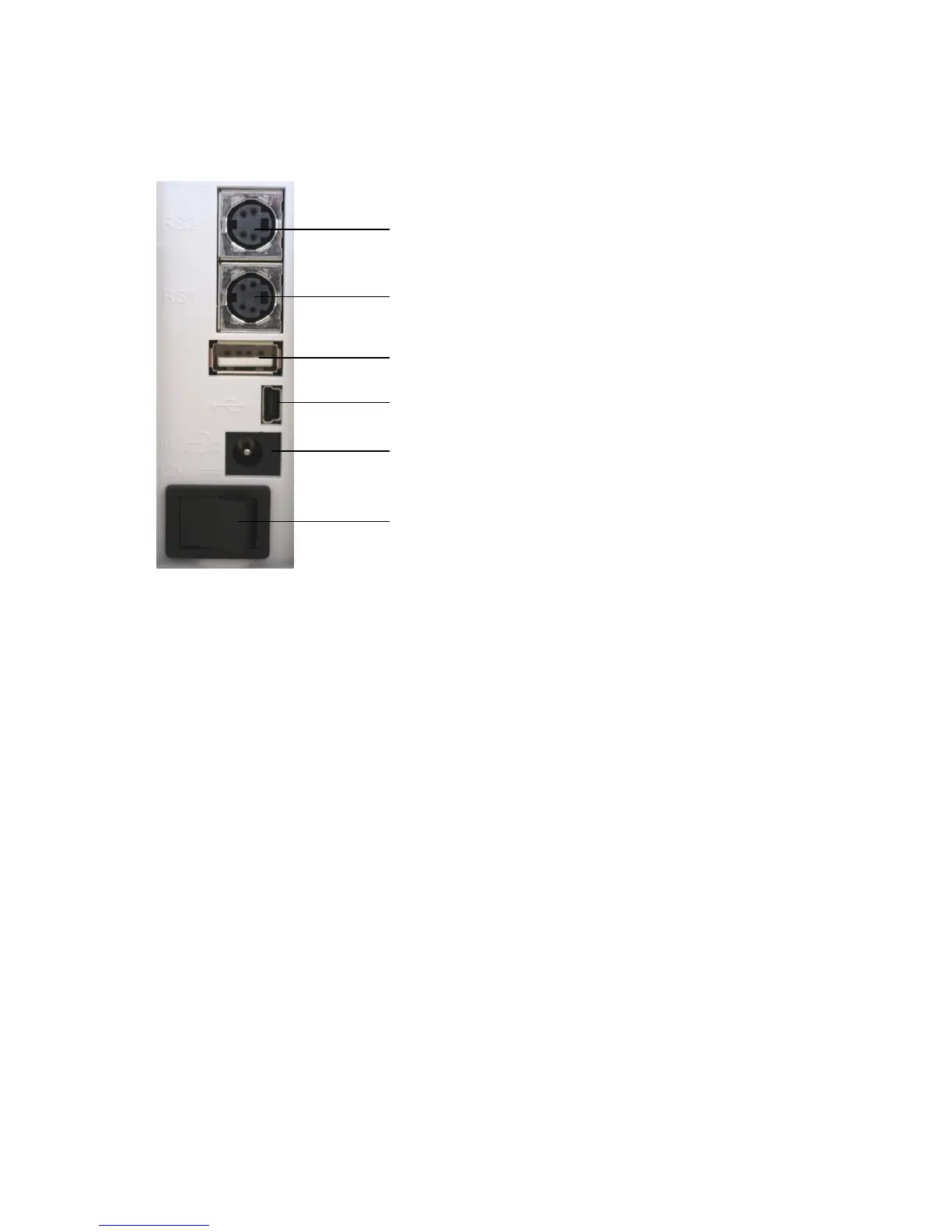

2.3.1 Back panel of the TITRONIC
®
300 piston burette
Fig. 3
2.3.2 Connection ports of the TITRONIC
®
300 piston burette
The burette TITRONIC® 300 offers the following interfaces:
Two RS232 interfaces, 4-channel (Mini-DIN):
1) For connection of a weighing balance and other devices from von SI Analytics (burettes,etc.)
2) RS1 for connection to the PC
3) One USB-A (“Host“) interface for connecting USB devices such as a keyboard, printer, manual control
unit, USB memory stick and USB hub
4) USB-B interface (mini USB) for connection to a PC
5) Connection of the external power supply TZ 1853
6) On/Off switch
2.3.3 Connecting a printer
Printers with a USB interface are to be connected to one of the two USB-A interfaces. These printers have to
feature HP PCL emulation (3, 3 enhanced, 5, 5e, no GUI and GDI printers).
2.3.4 Connecting a USB device (manual controller, keyboard, memory device, hub)
The following USB devices can be connected to the USB-A interfaces:
 PC-keyboard
 TZ 3880 manual controller
 Printer
 USB storage devices, e.g. USB sticks
 USB hub
 USB barcode scanners
For connecting more than one USB device, a USB hub (e.g. TZ 3830) is required.
2.3.5 Connection of analytical balances
Analytical balances are to be connected to the RS232-2 port using an appropriate cable.
