3 Working with the Piston burette TITRONIC® 300
3.1 Front Keyboard

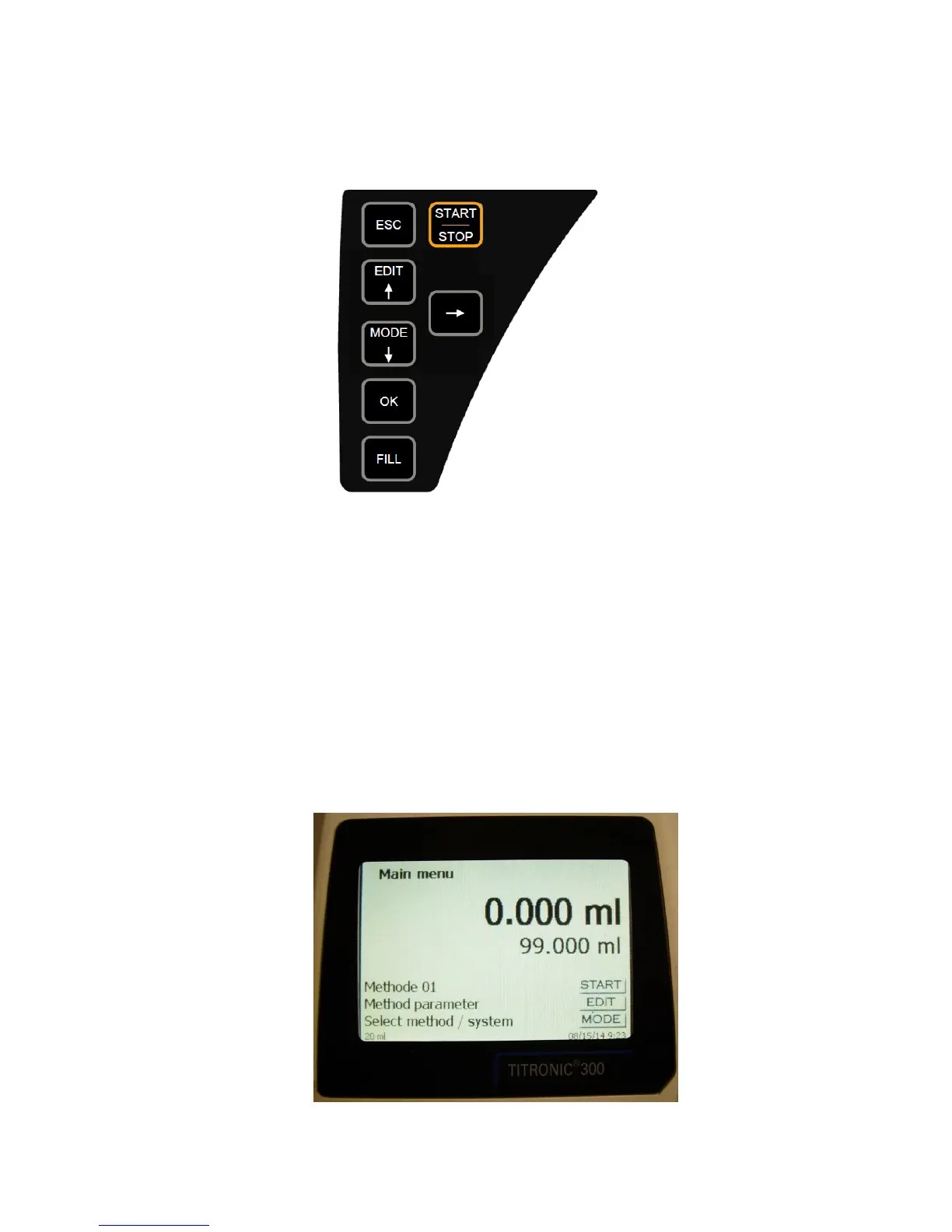

Fig. 16
Apart from alphanumeric input (a-z, A-Z, 0-9) and a few other functions, almost all functions can be performed
using the front keyboard.
<Mode>: Methods selection, rinsing, system settings, balance data
<EDIT>: Changing the current method, new method, copy and delete method, standard methods
<ESC>: <ESC> will take you back to the previous menu level
<START/STOP> Start and Stop of a current method
<FILL>: Filling the burette
< > Arrow-key up: Choosing of a menu or changing a number
< > Arrow-key down: Choosing of a menu or changing a number
<→> Arrow-key right: Changing position of the cursor, Enter
3.2 Display
The display consists of a graphical LCD display with a resolution of 320 x 240 pixels.
Fig. 17
