Si-tex SP-70 - Page 30

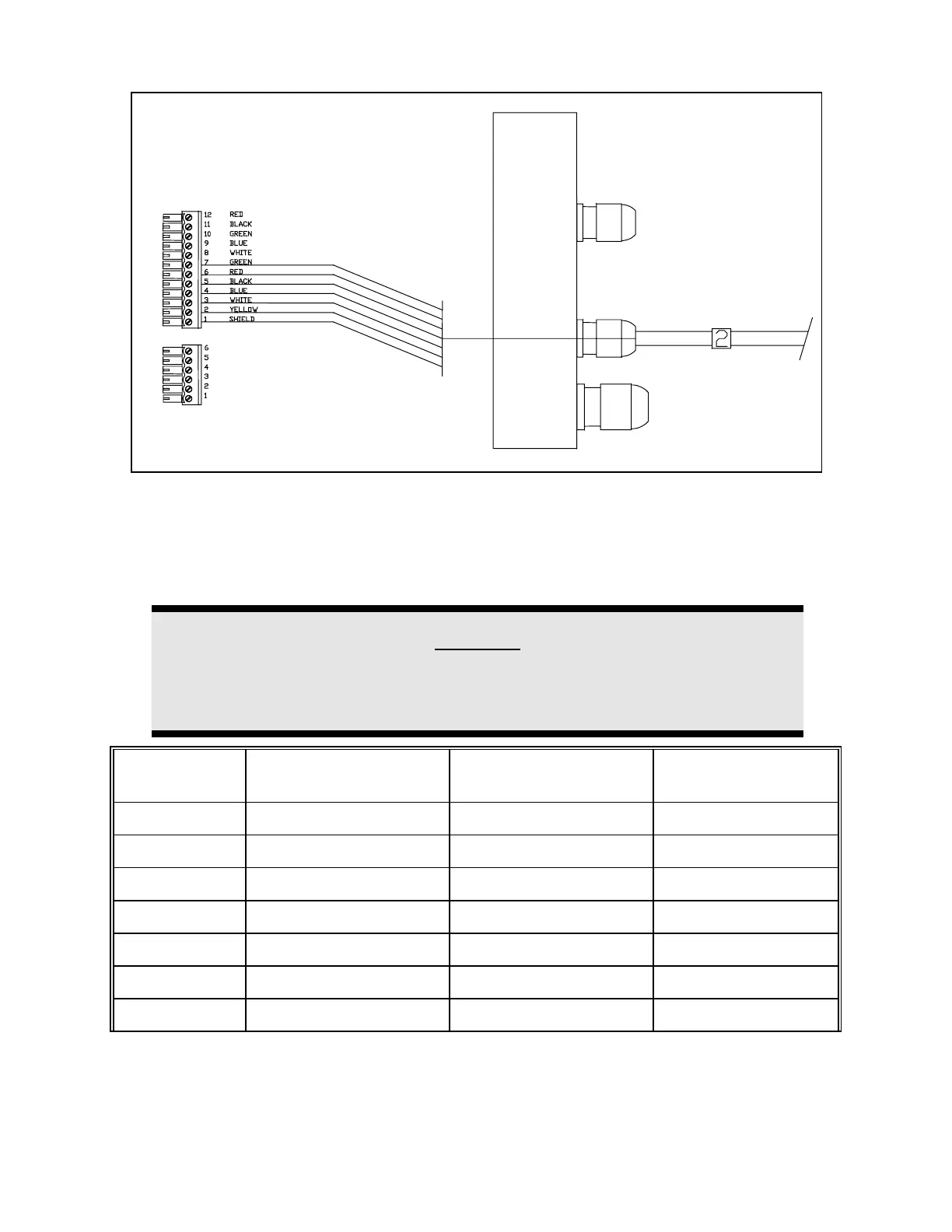

Ri
ght-hand side. Cable 2: Compass.
Note: Yellow wire on terminal #2 may be substituted with a brown wire.
Connections for Non SP-70/80 Fluxgate Compasses
J6
(12 POS)
SP-70/80
Fluxgate
SP-70/80
Function
Non-SP-70/80
Connections
1 Shield Ground Gnd
2 Yellow Cosine Cosine *
3White Ref Ref
4 Blue Sine Sine *
5 Black Drive P2 N/C
6 Red Drive P1 N/C
7 Green +12V +12V
* If the reading is reversed, swap these two wires.
J6
J7
Be careful:
The entire stripped end of the wire must be completely inside the terminal strip. Stripped
sections of wire must not be able to touch each other.
Every wire must be connected to the correct terminal.
