Appendix H Operating Instructions
Ranger E/D
36 SICK IVP • Industrial Sensors • www.sickivp.com • All rights reserved 8011731
Appendix

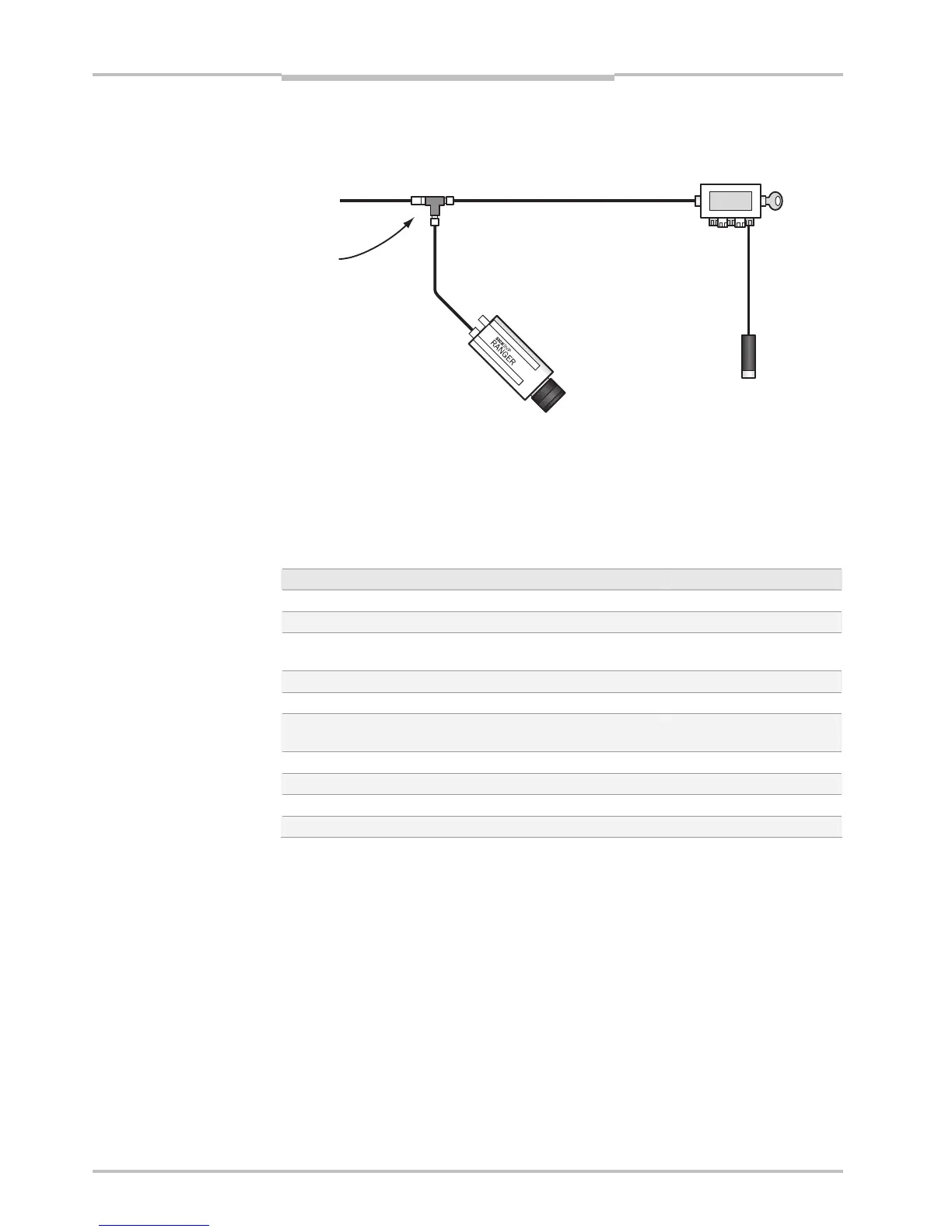

Figure H.8 – Principle for connecting laser to the ICT-B box, and triggering the laser from
the Ranger.
Technical Data:
Table H.5 – Technical Data for the ICT-B Laser safety box:
ICT-B Laser safety box
Supply voltage V
s
24 V DC ± 20%
Ripple < 5V
pp
Current consumption
(Laser safety box only)
< 50 mA
Laser Supply Voltage 5.3 V DC ± 2%
Max. current consumption for lasers (total sum) ≤ 500 mA
Delay from turning on key switch until
laser supply power is on
5 … 10 seconds
Enclosure Rating IP 67
Weight approx. 350 g
Operating temperature -10 ... +48 °C
Storage temperature -20 ... +70 °C
ICT-B box
5.3 V DC
24 V DC
24 V DC + Laser trigger
