3.2 Design
CLV62x in IP69K protective housing, front viewing window
50°
70 (2.76)
1
4
30
(1.18)
52.5
(2.07)
71.5 (2.81)
30.4
(1.20)
84 (3.31)
59 (2.32)
12.5
(0.49)
24
(0.94)
5
85 (3.35)
110 (4.33)
44
(1.73)
24
(0.94)
6
6
2
3
7

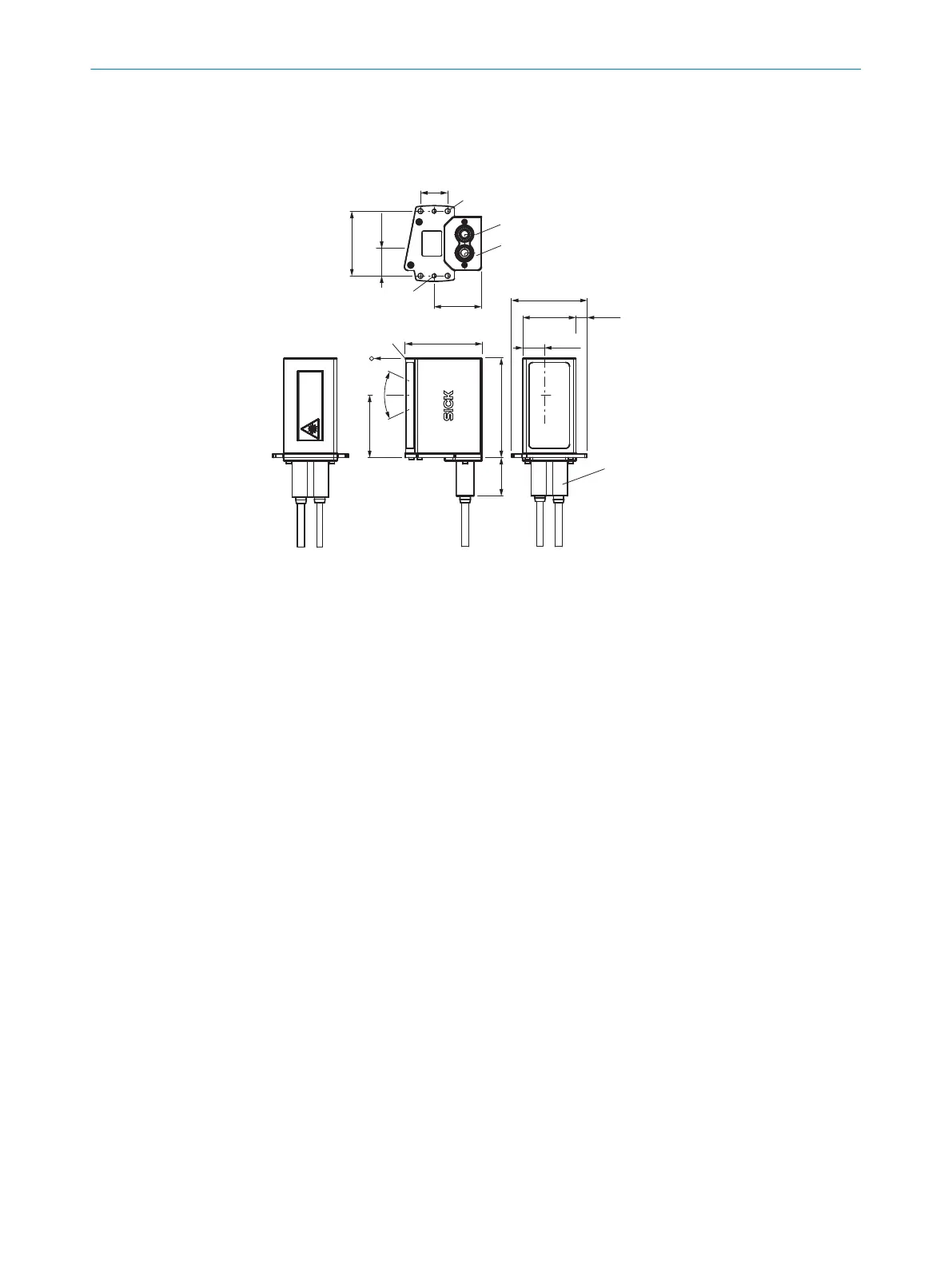

Figure 5: CLV62: Ethernet variant in IP69K protective housing, with front viewing window and two
M12 connections. structure and device dimensions, unit: mm (inch), decimal separator: period
1
Fixing holes, Ø 5.5 mm (4 x)
2
“Ethernet” connection (female connector, M12, 4-pin, D-coded)
3
“Power / Serial Data / CAN / I/O” connection (male connector, M12, 17-pin, A-coded)
4
Threaded hole, M5 (2 x)
5
Reference point of the reading distance (from housing edge to object)
6
Position of the light emission (center position of the deflected laser beam)
7
Protective double bushing for the electrical connections
PRODUCT DESCRIPTION 3
8021479/19ZB/2021-10-29 | SICK T E C H N I C A L I N F O R M A T I O N | CLV62x, CLV63x and CLV64x with IP69K Protective Housing
13
Subject to change without notice
