SICK CLV62 Series Technical Information

CLV63x or CLV64x with oscillating mirror in the IP69K protective housing, side viewing
window
88.5 (3.48)
29.2
(1.15)
52.5
(2.07)
30
(1.18)
5
(0.20)
20°
20°
1
05°
71.5 (2.81)
30.4
(1.20)
121 (4.76)
120 (4.72)
44
(1.73)
70 (2.76)
50°
84 (3.31)
69 (2.72)
12.5
(0.49)
71 (2.80)
43
(1.69)
88.5 (3.48)
95 (3.74)
20
(0.79)
1
5
4
6
6
2
3
7

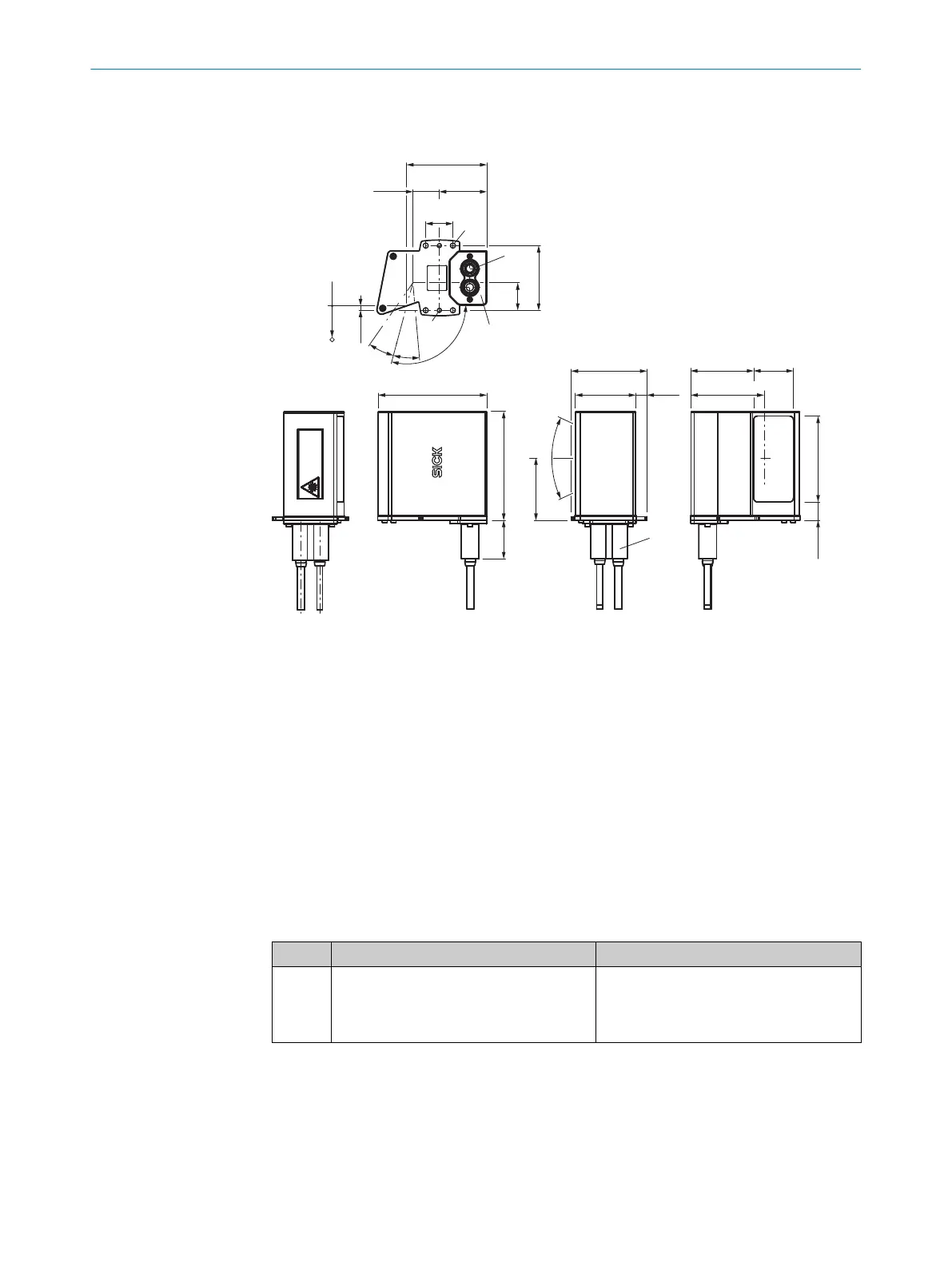

Figure 7: CLV63x / CLV64x: Ethernet variant in IP69K protective housing, with oscillating mirror
(side viewing window) and two M12 connections. structure and device dimensions, unit: mm
(inch), decimal separator: period
1
Fixing holes, Ø 5.5 mm (4 x)
2
“Ethernet” connection (female connector, M12, 4-pin, D-coded)
3
“Power / Serial Data / CAN / I/O” connection (male connector, M12, 17-pin, A-coded)
4
Threaded hole, M5 (2 x)
5
Reference point of the reading distance (housing edge to the object)
6
Position of the light emission (center position of the deflected laser beam)
7
Protective double bushing for the electrical connections
3.3 Scope of delivery
The scope of delivery of the device includes the following components:
Table 2: Scope of delivery
Item Component Description
1 CLV62x, CLV63x or CLV64x fixed mount
bar code scanner in the ordered version,
in the screwed tight and sealed off IP69K
protective housing
Both M12 connections are sealed off with
protective elements of the appropriate
type
PRODUCT DESCRIPTION 3
8021479/19ZB/2021-10-29 | SICK T E C H N I C A L I N F O R M A T I O N | CLV62x, CLV63x and CLV64x with IP69K Protective Housing
15
Subject to change without notice
