Table 6: Reading fields of CLV631 with oscillating mirror and side viewing window
CLV631 in standard housing CLV631 in IP69K protective housing
500
(19.69)
300
(11.81)
400
(15.75)
200
(7.87)
100
(3.94)
0
Reading distance in mm (inch) 2
Resolution 3
a: 0.25 mm (9.8 mil)
c: 0.50 mm (19.7 mil)
b: 0.35 mm (13.8 mil)
–100
(–3.94)
–200
(–7.87)
100
(3.94)
200
(7.87)
0
Reading field height in mm (inch) 1
a
b
c

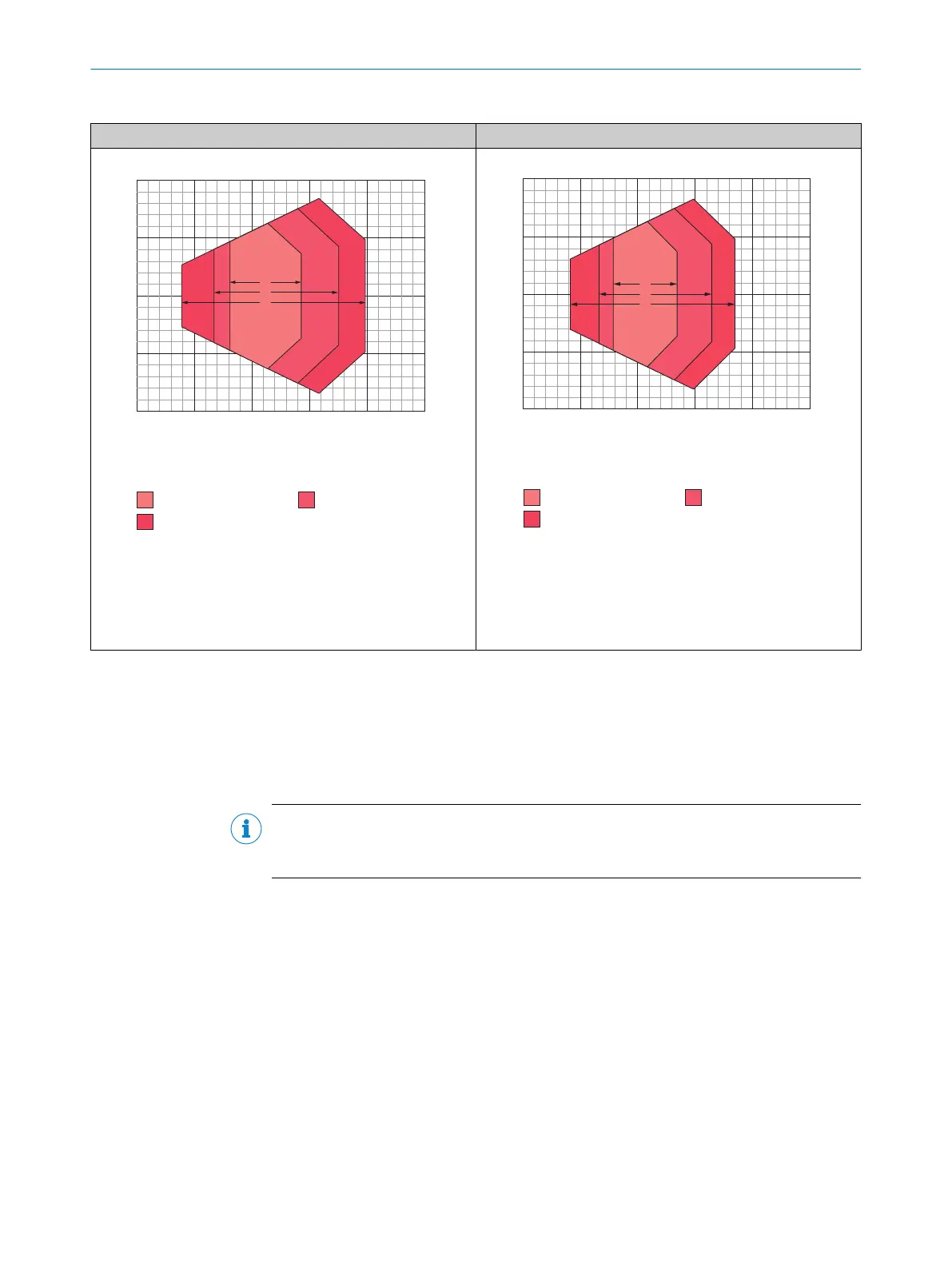

Figure 10: Reading field diagram of CLV631-6120, oscillating
mirror and side viewing window (glass)
1
Reading field height in mm (inch)
2
Reading distance in mm (inch)
3
Resolution
a
b
c
–100
(–3.94)
–200
(–7.87)
100
(3.94)
200
(7.87)
0
Reading field height in mm (inch) 1
500
(19.69)
300
(11.81)
400
(15.75)
200
(7.87)
100
(3.94)
0
Reading distance in mm (inch) 2
Resolution 3
a: 0.25 mm (9.8 mil)
c: 0.50 mm (19.7 mil)
b: 0.35 mm (13.8 mil)
Figure 11: Reading field diagram of CLV631-6831S01, oscil‐
lating mirror and side viewing window (plastic)
1
Reading field height in mm (inch)
2
Reading distance in mm (inch)
3
Resolution
Display of reading field diagrams in SOPAS ET
The SOPAS ET configuration software displays the reading field diagrams of the fixed
mount bar code scanners in standard housing (viewing window made of glass). The
diagrams therefore do not provide a true representation of the restricted and displaced
reading areas of the fixed mount bar code scanners in IP69K protective housing (view‐
ing window made of plastic).
NOTE
As a simplified rule: The depth of field is reduced by approx. 10% for devices with a
plastic viewing window.
