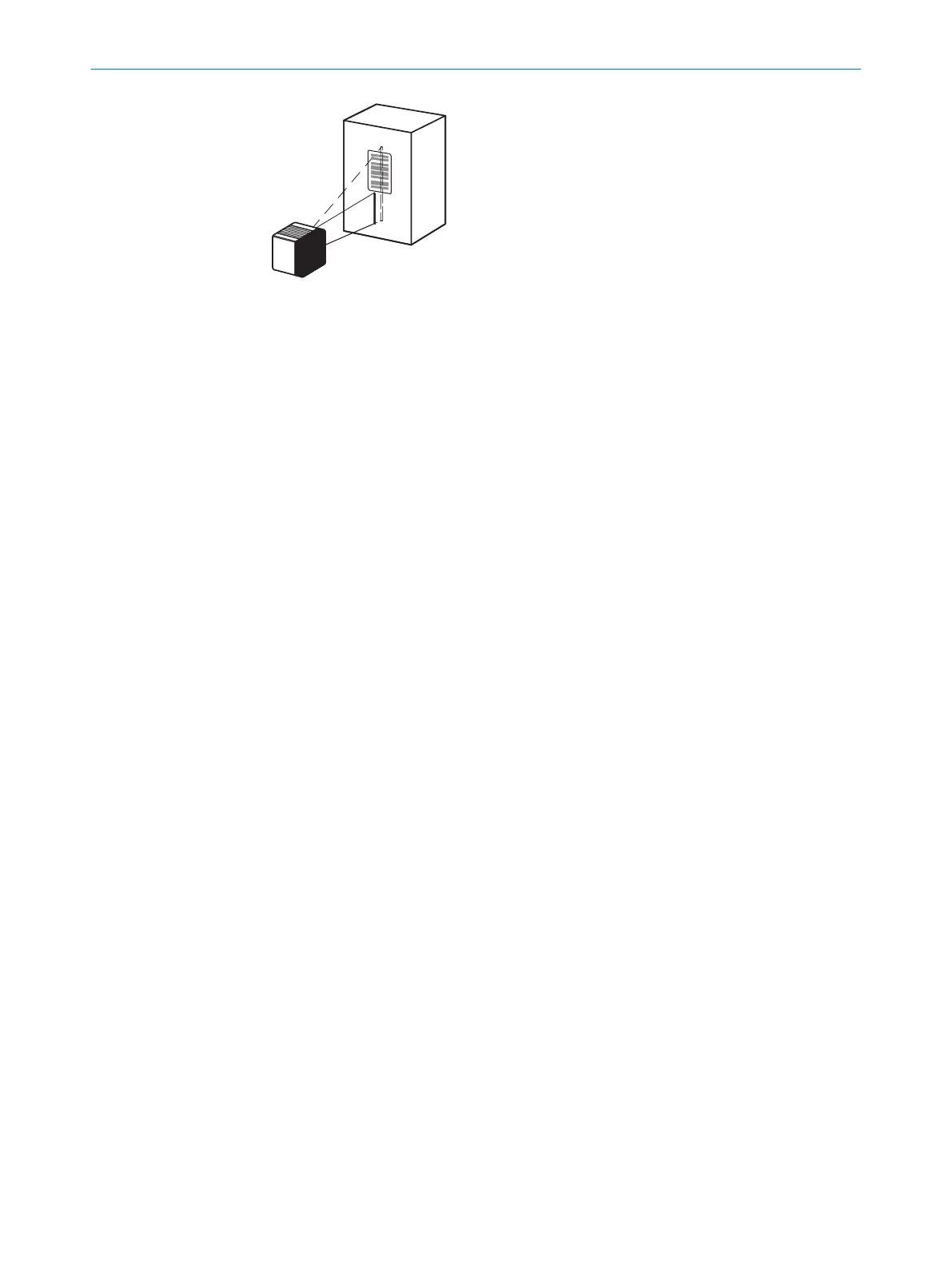

Figure 42: Appearance of the scan line in “Adjusting Mode”
This function is only available under “Analysis” in the “Service” user level.
Code configuration
In the factory default setting, the device decodes the following code types:
•
Code 39
•
2/5 interleaved
•
Code 128 family
You can activate further code types and set other decoder properties (Device Tree >
Parameters > Code Configuration).
Scanning frequency
You can set the scanning frequency in the range from 400 Hz to 1200 Hz (Device Tree
> Parameters > Reading Configuration).
Ethernet interface
Use the “Ethernet” page to make adaptations to the IP address and the subnet mask
(Device tree > Parameters > Network/Interfaces/IOs > Ethernet).
Object trigger control
If the device is to be operated with an additional read pulse sensor, for example, a pho‐
toelectric sensor on the “Sensor 1” switching input, select the setting “Sensor 1”
(Device tree > Parameters > Object trigger control).
Test and, if necessary, modify the specified settings when operating the system under
real conditions.
COMMISSIONING 7
