SICK CLV63 Series User Manual

3 Product description
3.1 Product ID
3.1.1 Type label
The type label gives information for identification of the device. An existing UL certifica‐
tion can be found on the type label.
1443 0297
S/N:
DC 10...30V 5.0W
1
2
3
4
5
Manufactured:
D-79276 Reute
Made in Germany
λ = 655nm
Pmax=1.5mW
P<1.0mW average
Pulse duration <300µs
Imax=700mA
P/N: 1068608
CLV610-C000
MAC
6

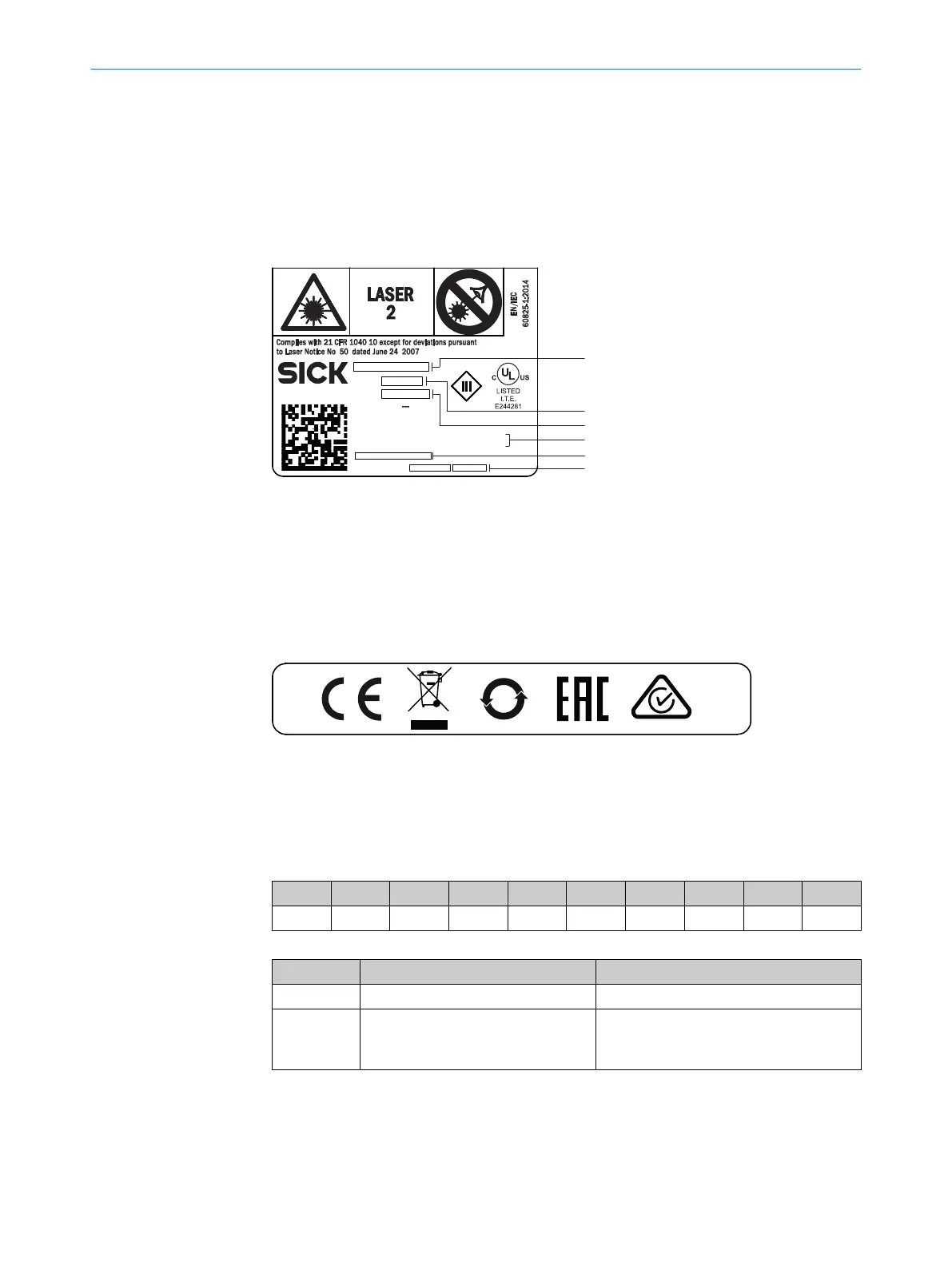

Figure 3: Type label design for the device, illustration may differ from actual type label
1
Type designation
2
Part number
3
Serial number
4
Laser output data
5
MAC address
6
Date of manufacture
25
3.1.2 Type code
The devices of the CLV63x, CLV64x, and CLV65x product families are arranged accord‐
ing to the following type code:
CLVxyz-abcde
CLV x y z - a b c d e
1 2 3 4 5 6 7 8 9
Table 2: Type code
Position Description Characteristic
1 Code reader V-principle
2 - 3 Product family 63: CLV63x
64: CLV64x
65: CLV65x
PRODUCT DESCRIPTION 3
8019588/129Z/2019-02-07 | SICK O P E R A T I N G I N S T R U C T I O N S | CLV63x, CLV64x, CLV65x
13
Subject to change without notice
