SICK CLV63 Series User Manual

800
(31.5)
600
(23.62)
400
(15.75)
200
(7.87)
0
a
b
c
Reading distance in mm (inch) 2
Resolution 4
a: 0.35 mm (13.8 mil)
c: 1.0 mm (39.4 mil)
b: 0.50 mm (19.7 mil)
For devices with plastic reading window, the depth of
field is reduced by approx. 10 %. 3
–400
(–15.75)
–300
(–11.81)
–200
(–7.87)
–100
(–3.94)
100
(3.94)
200
(7.87)
300
(11.81)
400
(15.75)
0
Reading field height in mm (inch)
1

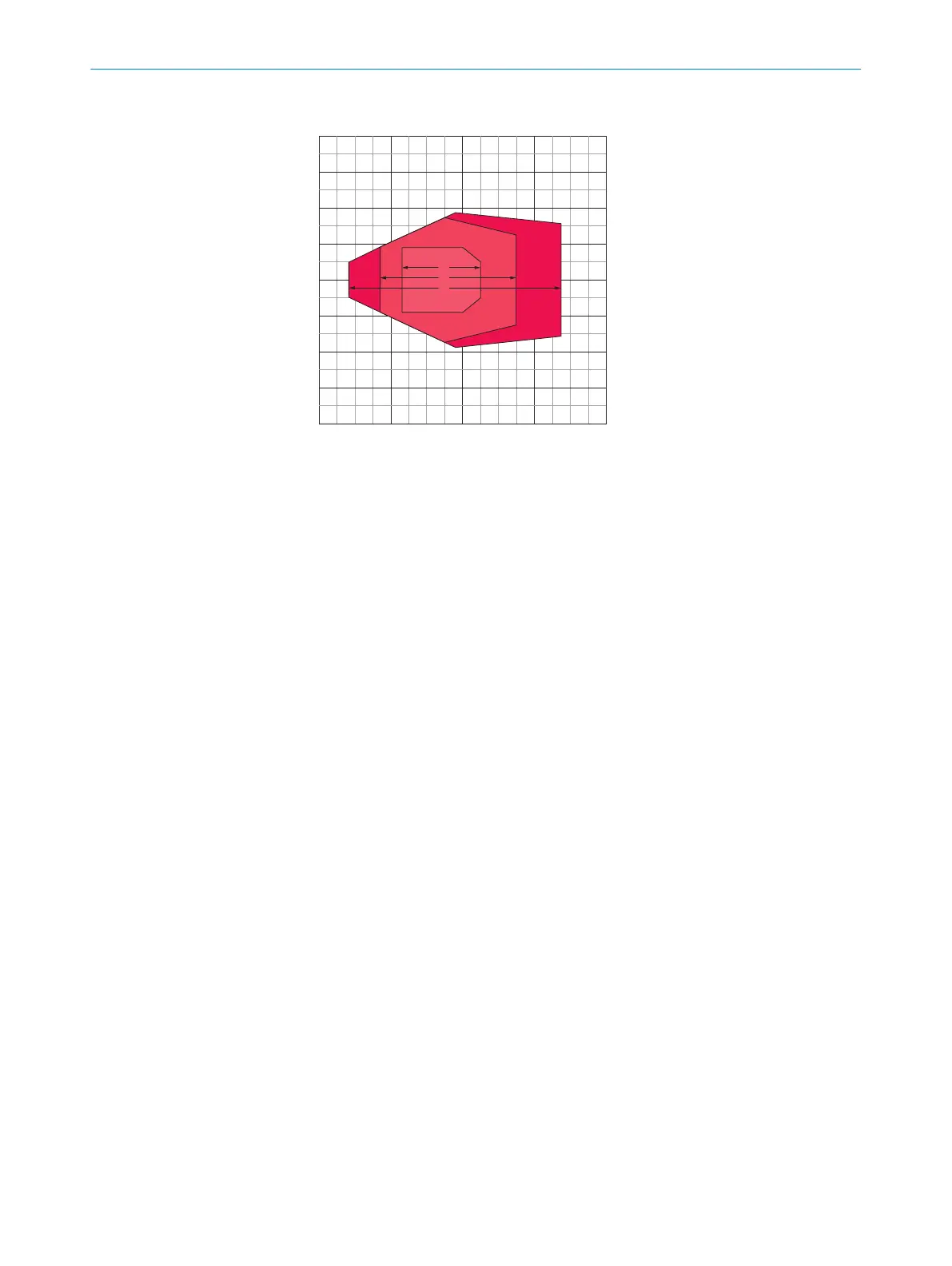

Figure 46: Reading field diagram CLV630, long range, reading window on front, oval light spot
1
Reading field height in mm (inch)
2
Reading distance in mm (inch)
3
The depth of field is reduced by approx. 10% for devices with plastic lenses.
4
Solution
12 TECHNICAL DATA
76
O P E R A T I N G I N S T R U C T I O N S | CLV63x, CLV64x, CLV65x 8019588/129Z/2019-02-07 | SICK
Subject to change without notice
